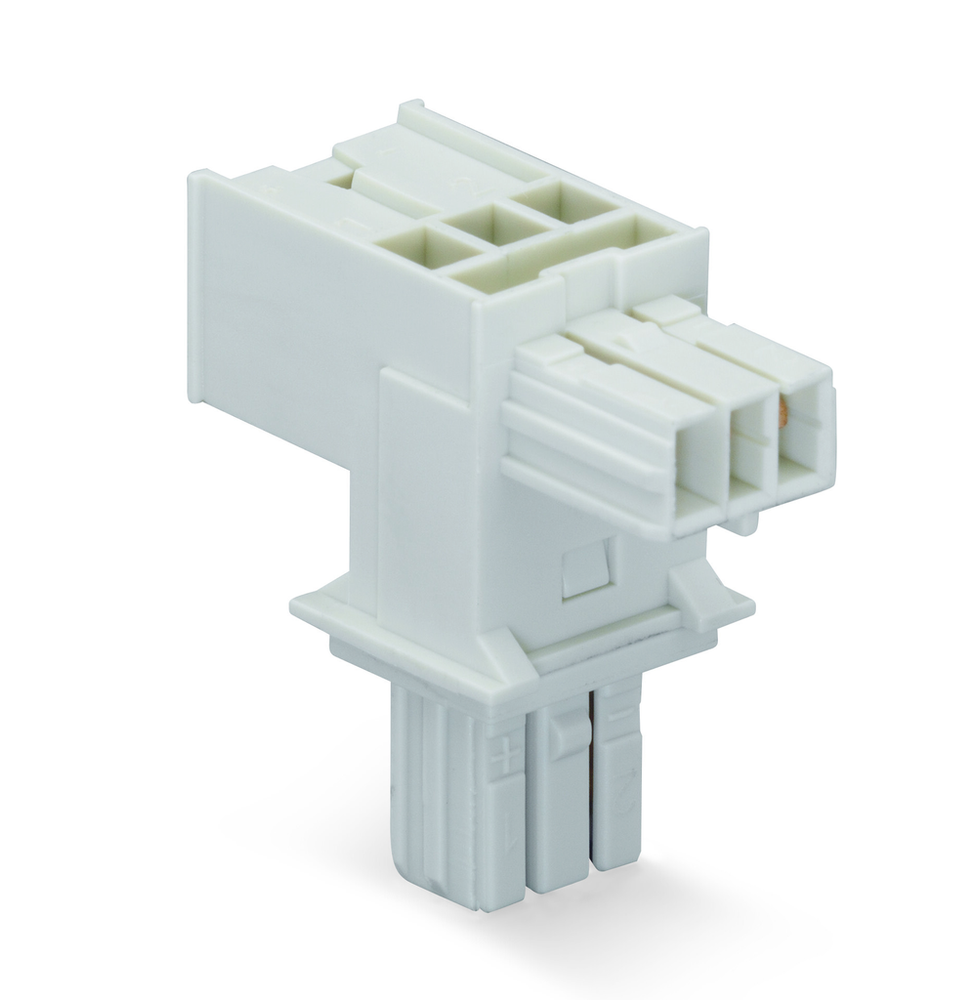

WAGO 893-1656

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85366990990
• GTIN
  • 4045454547684
• Packaging type
  • Box

Connection 1

• Pole number
  • 2

Environmental Requirements

• Continuous operating temperature
  • -35 … +85 °C
• Note on continuous operating temperature
  • Insulating parts for temperatures ≤ 105 °C
• Processing temperature
  • -5 … +40 °C

General

• Note on contact resistance
  • Approx. 3 mΩ contact resistance

Material Data

• Color
  • Light gray
• Contact material
  • Copper alloy; surface-treated
• Contact plating
  • Tin
• Fire load
  • 0.054 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 3.118 g

Mechanical Data

• Coding
  • F
• Marking
  • 1+ 2-
• Mating force of a plug-in connection
  • Approx. 10 … 15 N
• Number of mating cycles
  • 200
• Potential marking
  • 1+ 2-
• Protection type
  • IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)
• Retention force of a plug-in connection
  • When locked: > 80 N
• Technology
  • KNX
• Type of distribution box
  • T-distribution connector
• Unmating force of a plug-in connection
  • Unlocked: approx. 15 … 20 N
• Variable coding
  • No

Physical Data

• Depth
  • 28.7 mm / 1.13 inches
• Height
  • 28.9 mm / 1.138 inches
• Width
  • 15 mm / 0.591 inches

Plug-In Connection

• Locking lever
  • Yes
• Locking of plug-in connection
  • Locking lever
• Mismating protection
  • Yes
• Note on locking system
  • All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
• Note on mismating protection
  • All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Number of locking levers
  • 2

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 50 V
• Rated current
  • 3 A
• Rated impulse voltage (III/3)
  • 0.8 kV
• Ratings per
  • IEC/EN 60664-1

Specifications

• Product Group Code
  • 0020
