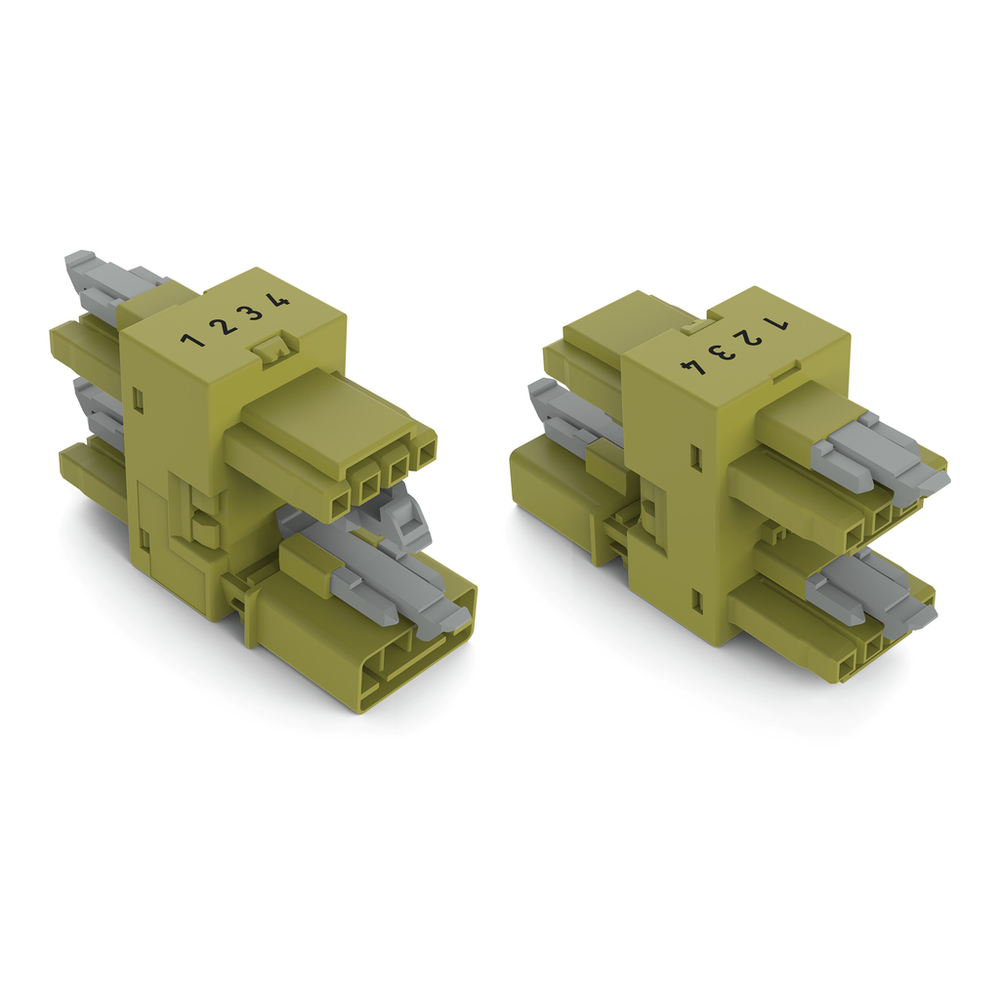

WAGO 890-1735

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85366990990
• GTIN
  • 4050821876397
• Packaging type
  • Box

Connection 1

• Pole number
  • 4

Environmental Requirements

• Continuous operating temperature
  • -35 … +85 °C
• Note on continuous operating temperature
  • Insulating parts for temperatures ≤ 105 °C
• Processing temperature
  • -5 … +40 °C

General

• Note on contact resistance
  • Approx. 1 mΩ of contact resistance
approx. 0.25 mΩ contact transition plug/socket

Material Data

• Color
  • Light green
• Contact material
  • Copper or copper alloy; surface-treated
• Contact plating
  • Tin
• Fire load
  • 0.355 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 22.156 g

Mechanical Data

• Application
  • Control technology
• Coding
  • B
• Marking
  • 1 2 3 4
• Mating force of a plug-in connection
  • Approx. 20 … 70 N (depending on pole number)
• Number of mating cycles
  • 200, without resistive load
• Potential marking
  • 1 2 3 4
• Protection type
  • IP20; IP40 when mated
• Retention force of a plug-in connection
  • When locked: > 80 N
• Type of distribution box
  • Distribution connector, 3-way
• Unmating force of a plug-in connection
  • Unlocked: approx. 20 … 70 N (depending on pole number)
• Variable coding
  • No

Notes

• Variants:
  • Other pole markings || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Physical Data

• Depth
  • 63.5 mm / 2.5 inches
• Height
  • 32.65 mm / 1.285 inches
• Pin spacing
  • 4.4 mm / 0.173 inches
• Width
  • 20.8 mm / 0.819 inches

Plug-In Connection

• Locking lever
  • Yes
• Locking of plug-in connection
  • Locking lever
• Mismating protection
  • Yes
• Note on locking system
  • All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
• Note on mismating protection
  • All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Number of locking levers
  • 4

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 400 V
• Note (rated current)
  • 13 A for 3-pole load10 A for 4-pole load
• Rated current
  • 16 A
• Rated impulse voltage (III/3)
  • 6 kV
• Ratings per
  • IEC/EN 60664-1

Ratings Per Ul 1977

• Note for the US market
  • Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
• Rated current UL 1977
  • 12 A
• Rated voltage (UL 1977)
  • 600 V

Specifications

• Product Group Code
  • 0020
