WAGO 883-7007
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

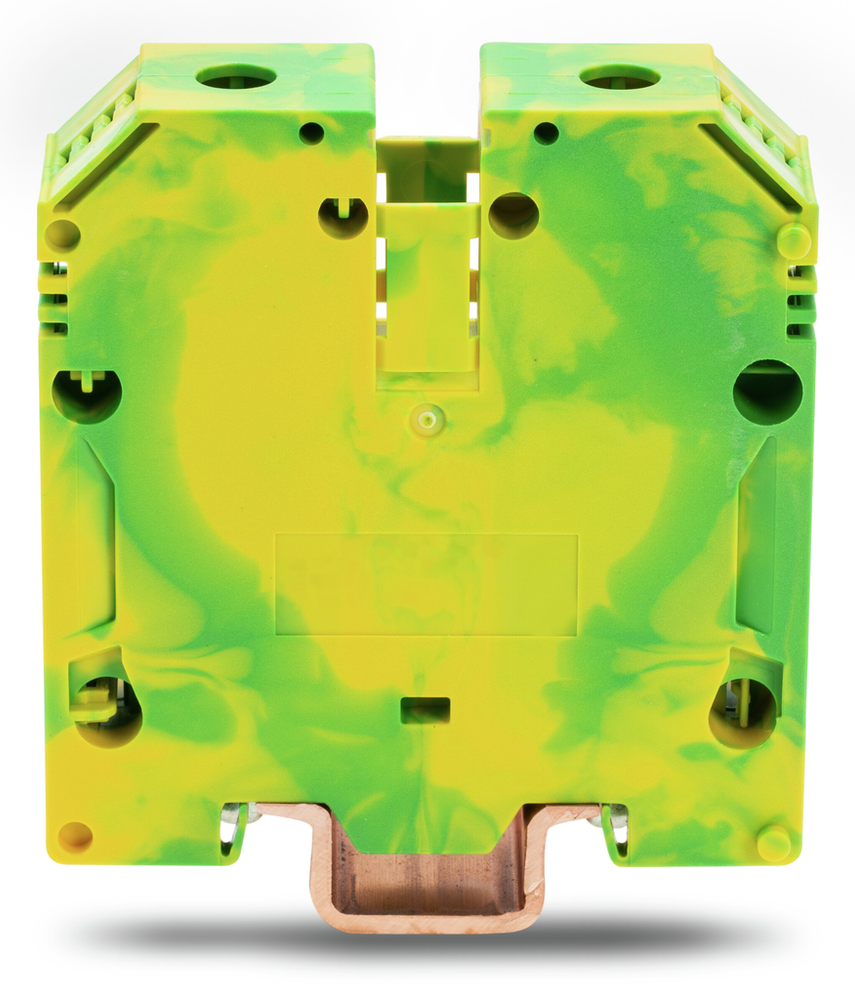

2-conductor ground terminal block; 70 mm²; SCREW CLAMP CONNECTION; 70,00 mm²; green-yellow
WAGO 883-7007 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4055143940825
- Packaging type
- Box
Connection 1
- Actuation type
- T-wrench; 4 mm
- Connectable conductor materials
- Copper || Aluminum
- Connectable conductor materials (note)
- Terminating Aluminum ConductorsBoth restrictions and application notes must be observed when terminating aluminum conductors.These instructions can be found in the WAGO Webshop under “Downloads – Documentation – Additional Information: Terminating Aluminum Conductors”.
- Connection technology
- Screw connection
- Fine-stranded conductor
- 10 … 70 mm² / 8 … 2/0 AWG
- Fine-stranded conductor; with insulated ferrule
- 10 … 70 mm² / 8 … 2/0 AWG
- Nominal cross-section
- 70 mm²
- Screw thread
- M5
- Solid conductor
- 10 … 95 mm² / 8 … 3/0 AWG
- Stranded conductor
- 10 … 95 mm² / 8 … 3/0 AWG
- Strip length
- 22 mm / 0.87 inches
- Wiring direction
- Side-entry wiring
Environmental Requirements
- Continuous operating temperature
- -35 … +105 °C
Material Data
- Color
- Green-yellow
- Fire load
- 0.000 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Note (material data)
- Information on material data can be found here
- Weight
- 192.000 g
Mechanical Data
- Design
- Horizontal type
- Marking level
- Side marking
- Mounting type
- DIN-rail 35 x 15; 2.3 mm thick; copper
- Tightening torque
- 2.5 … 4 Nm
Physical Data
- Depth from upper-edge of DIN-rail
- 84 mm / 3.307 inches
- Height
- 76.5 mm / 3.012 inches
- Width
- 20.5 mm / 0.807 inches
Ratings Per Csa
- Approvals per
- CSA 22.2 No 158
Ratings Per Iec/En
- Ratings per
- IEC/EN 60947-7-2
Ratings Per Ul 1059
- Approvals per
- UL 1059
Specifications
- Product Group Code
- 0001
