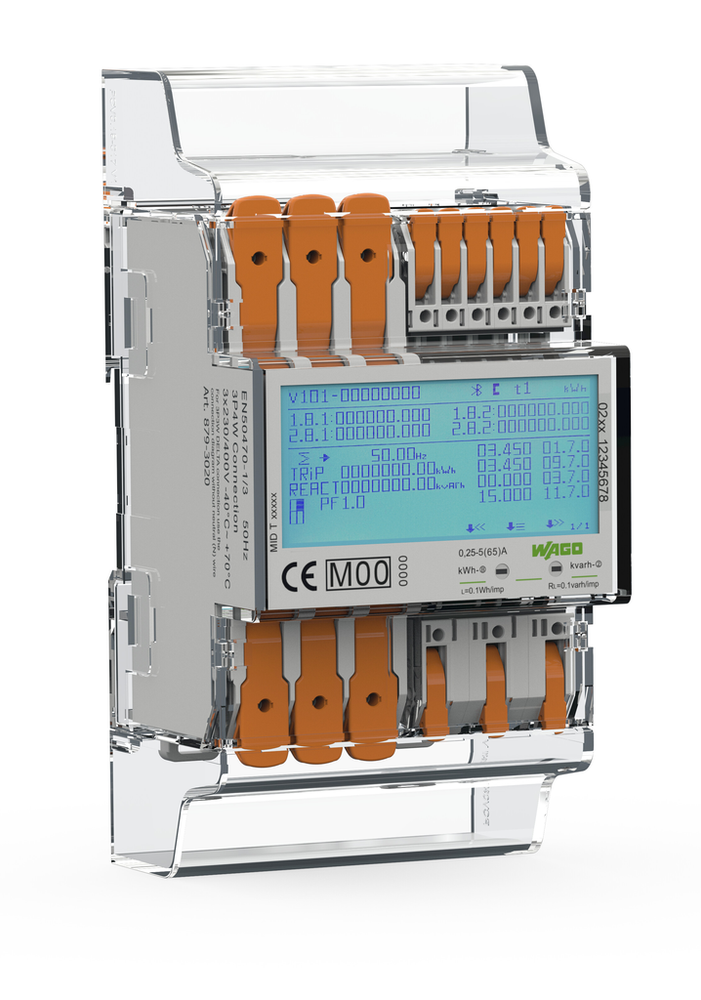

WAGO 879-3020
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Energy meter (MID); for direct connection; 65A; 3x230/400V; 50Hz; Modbus® and M-Bus; 2 x S0 interface; 4PS
WAGO 879-3020 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 90283019000
- GTIN
- 4066966125412
Communication
- Communication
- Modbus® || M-Bus || Bluetooth®
- Indicators
- LCD with backlight
- Interface
- RS-485 (2-wire); 2x S0 interfaces (configurable)
- Rate control input
- 230 VAC
Configuration
- Configuration options
- Touch-sensitive controls || Configuration app via Bluetooth®
Connection Data
- Actuation type
- Lever
- Actuation type 2
- Lever
- Connection technology
- Push-in CAGE CLAMP®
- Connection technology 2
- Push-in CAGE CLAMP®
- Connection type 1
- Voltage/current
- Connection type 2
- Communication/rate control input
- Fine-stranded conductor
- 0.75 … 25 mm² / 18 … 4 AWG
- Fine-stranded conductor 2
- 0.2 … 4 mm² / 24 … 12 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.75 … 16 mm²
- Fine-stranded conductor; with insulated ferrule 2
- 0.25 … 2.5 mm²
- Fine-stranded conductor; with uninsulated ferrule
- 0.75 … 16 mm²
- Fine-stranded conductor; with uninsulated ferrule 2
- 0.25 … 2.5 mm²
- Solid conductor
- 0.75 … 16 mm² / 18 … 4 AWG
- Solid conductor 2
- 0.2 … 4 mm² / 24 … 12 AWG
- Strip length
- 18 … 20 mm / 0.71 … 0.79 inches
- Strip length 2
- 9 … 11 mm / 0.35 … 0.43 inches
- WAGO connector
- WAGO 2616 Series
- WAGO connector 2
- WAGO 2604 Series
Environmental Requirements
- Ambient temperature (operation)
- -40 … +70 °C
- Relative humidity
- ≤ 75% (during storage ≤ 95 %)
Input
- Frequency range
- 45 … 60 Hz
- Input current Ii
- ≤ 65 A
- Input signal type
- Voltage || Current
- Input voltage range
- ±20 %
- Network configuration
- Two-wire, three-wire and four-wire networks
- Nominal input voltage Ui nom
- 3 x AC 230 … 400 V
- Reference current Iref
- 5 A
Material Data
- Fire load
- 0.000 MJ
- Housing material
- PC 940A
- Weight
- 280.000 g
Measurement Error
- Accuracy class
- Class B (= 1 % error); Active energy per EN 50470-3
- Calibration validity period
- 8 years
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth
- 63 mm / 2.48 inches
- Height
- 140 mm / 5.512 inches
- Note (dimensions)
- Height without cover: 92 mm
- Width
- 72 mm / 2.835 inches
Safety And Protection
- Dielectric strength
- 4 kV; 1 min
- Impulse withstand voltage (1.2/50 μs)
- 6 kV
- Pollution degree
- 2
- Protection class
- II
- Protection type
- IP51 / IP20; IP51 (front side); IP20 (connection)
Signaling And Communication
- Communication
- Modbus® || M-Bus || Bluetooth®
- Configuration options
- Touch-sensitive controls || Configuration app via Bluetooth®
Signal Processing
- Measured variables (calculated)
- Active and reactive energy in supply and reference direction
- Measurement type (load profile)
- No
Specifications
- Product Group Code
- 0029
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 50470-1/3 || MID-compliant
Supply
- Power consumption Pmax. (phase; active power)
- 2 W
- Power consumption Pmax. (phase; apparent power)
- 10 VA
- Power supply type
- Via measurement circuit
