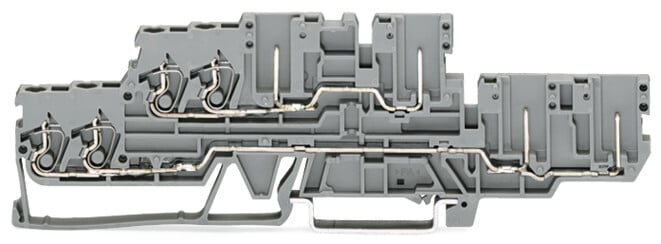

WAGO 870-131

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85366990990
• GTIN
  • 4045454600211
• Packaging type
  • Box

Connection 1

• Actuation type
  • Operating tool
• Connectable conductor materials
  • Copper
• Connection technology
  • CAGE CLAMP®
• Fine-stranded conductor
  • 0.08 … 4 mm² / 28 … 12 AWG
• Fine-stranded conductor; with insulated ferrule
  • 0.08 … 1.5 mm² / 28 … 14 AWG
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length
  • 6 … 7 mm / 0.24 … 0.28 inches
• Wiring direction
  • Front-entry wiring

Environmental Requirements

• Continuous operating temperature
  • -60 … +105 °C
• Processing temperature
  • -35 … +85 °C

Material Data

• Color
  • Gray
• Fire load
  • 0.343 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 19.000 g

Mechanical Data

• Design
  • Horizontal type
• Marking level
  • Side marking
• Mounting type
  • DIN-35 rail
• Potential marking
  • L/L

Notes

• Safety information
  • Max. insulation diameter: 4.4 mm
• Safety information 2
  • 2-conductor female plugs cannot be used.

Physical Data

• Depth from upper-edge of DIN-rail
  • 37.1 mm / 1.461 inches
• Height
  • 132.7 mm / 5.224 inches
• Width
  • 5 mm / 0.197 inches

Power Loss

• Power loss, per pole (potential)
  • 0.3405 W
• Rated current IN for specified power loss
  • 16 A
• Resistance value for specified, current-dependent power loss
  • 0.00133 Ω

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 500 V
• Rated current
  • 16 A
• Rated impulse voltage (III/3)
  • 6 kV

Specifications

• Product Group Code
  • 0016
