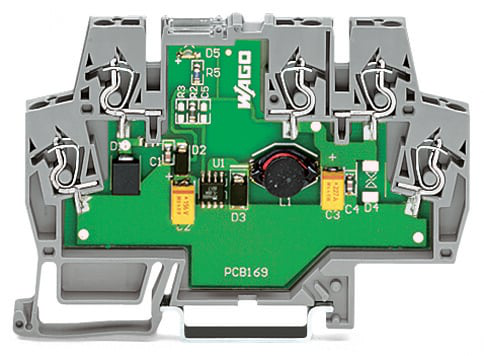

WAGO 859-806
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
DC/DC Converter; 12 VDC input voltage; 12 VDC output voltage; 0.5 A output current
WAGO 859-806 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Internal fuse
- 2 A (slow)
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85044083900
- GTIN
- 4050821771050
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Number of jumper slots
- 2
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector
- WAGO 859 Series
Efficiency/Power Losses
- Efficiency (typ.)
- 89 %
Environmental Requirements
- Ambient temperature (operation)
- 0 … +40 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 85 % (non-condensing)
- Temperature range of connection cable
- ≥ (Tambient + 15 K)
Input
- Input voltage range
- DC 8 … 16 V
- Mains failure hold-up time
- ≥ 0.5 ms
- Nominal input voltage Ui nom
- DC 12 V
- Nominal mains frequency range
- 0 Hz
Material Data
- Fire load
- 0.338 MJ
- Weight
- 23.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Output
- Load regulation
- ≤ 0.5 %
- Nominal output current Io nom
- 0.5 A
- Nominal output voltage Uo nom
- DC 12 V
- Operating voltage feedthrough
- ≤ 0.2 %
- Output voltage range
- ±2 %
- Overload behavior
- 1 A, max. 1 min (permanent overload leads to the destruction of the module); short-circuit-protected
- Residual ripple
- ≤ 100 mV
- Switching frequency
- 400 kHz (Nominal)
Physical Data
- Depth
- 91 mm / 3.583 inches
- Depth from upper-edge of DIN-rail
- 56 mm / 2.205 inches
- Height
- 91 mm / 3.583 inches
- Height from upper-edge of DIN-rail
- 56 mm / 2.205 inches
- Width
- 6 mm / 0.236 inches
Safety And Protection
- Pollution degree
- 2
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Reverse voltage protection
- Yes
- Series operation
- No
Signaling And Communication
- Signaling
- 1 x LED
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61000-6-2 || EN 61000-6-4
