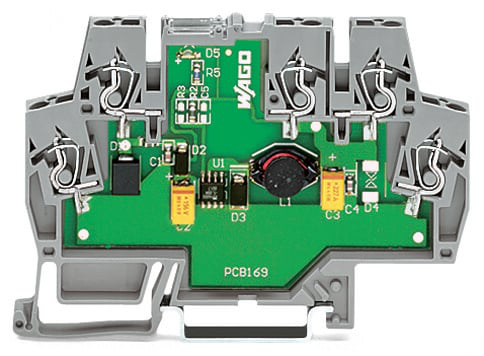

WAGO 859-801

Circuit Protection

• Internal fuse
  • TVS diode

Commercial Data

• Country of origin
  • US
• Customs tariff number
  • 85044083900
• GTIN
  • 4050821021568
• Packaging type
  • Box

Connection Data

• Connection technology
  • CAGE CLAMP®
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Number of jumper slots
  • 2
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length
  • 5 … 6 mm / 0.2 … 0.24 inches
• WAGO connector
  • WAGO 859 Series

Efficiency/Power Losses

• Efficiency (typ.)
  • 70 %

Environmental Requirements

• Ambient temperature (operation)
  • 0 … +40 °C

Input

• Input voltage range
  • DC 10 … 30 V
• Mains failure hold-up time
  • ≥ 1 ms
• Nominal input voltage Ui nom
  • DC 24 V
• Nominal mains frequency range
  • 0 Hz

Material Data

• Color
  • Gray
• Fire load
  • 0.480 MJ
• Weight
  • 34.640 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Output

• Load regulation
  • ≤ 0.5 %
• Nominal output current Io nom
  • 0.5 A (single, 10 mm spacing); 0.4 A (in a row)
• Nominal output voltage Uo nom
  • DC 5 V
• Operating voltage feedthrough
  • ≤ 2 %
• Output voltage range
  • ±2 %
• Overload behavior
  • Temporary no damage (short circuit of the output for 1 minute)
• Residual ripple
  • ≤ 150 mV
• Switching frequency
  • 20 kHz (Nominal)

Physical Data

• Depth
  • 91 mm / 3.583 inches
• Depth from upper-edge of DIN-rail
  • 56 mm / 2.205 inches
• Height
  • 91 mm / 3.583 inches
• Height from upper-edge of DIN-rail
  • 56 mm / 2.205 inches
• Width
  • 6 mm / 0.236 inches

Safety And Protection

• Pollution degree
  • 2
• Protection class
  • III
• Protection type
  • IP20; per EN 60529
• Reverse voltage protection
  • Yes
• Series operation
  • No

Signaling And Communication

• Signaling
  • 1 x LED

Specifications

• Product Group Code
  • 0006

Standards And Specifications

• Conformity marking
  • CE
