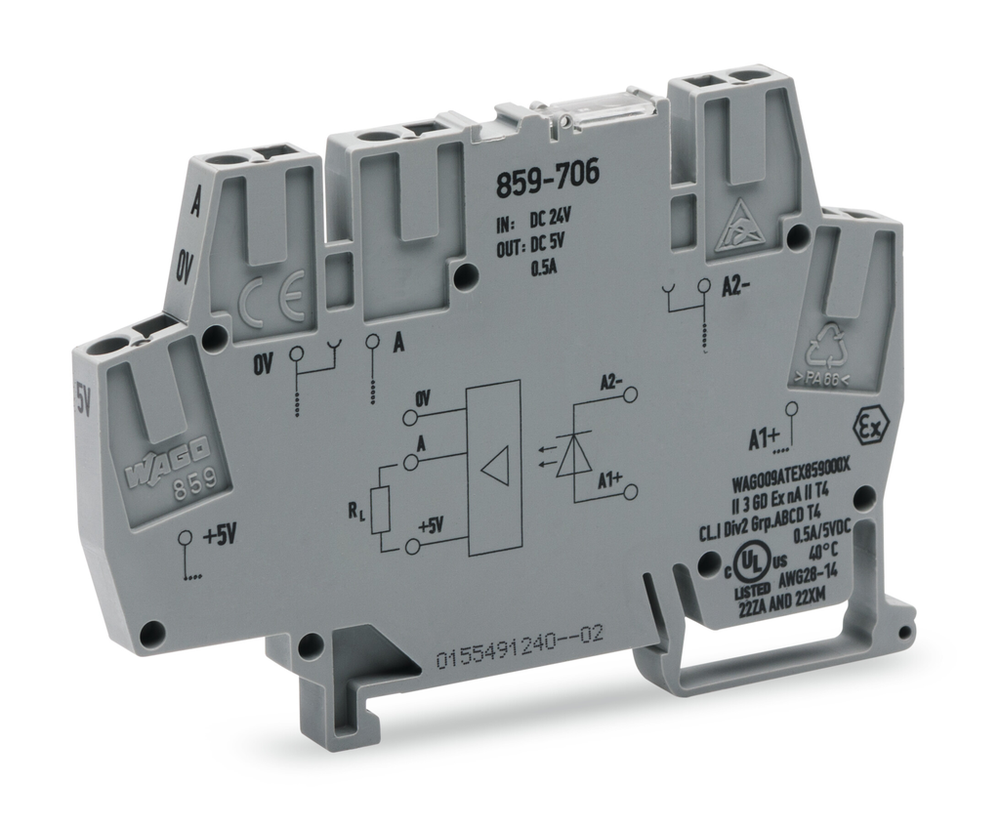

WAGO 859-706
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Optocoupler module; Nominal input voltage: 24 VDC; Limiting continuous current: 0.5 A; Frequency: 10 kHz; Module width: 6 mm; gray
WAGO 859-706 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85365005000
- GTIN
- 4055143604697
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.08 … 1.5 mm² / 28 … 16 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 5 … 6 mm / 0.2 … 0.24 inches
Control Circuit
- Input voltage range (high level)
- DC 18 … 30 V
- Input voltage range (low level)
- DC 0 … 5 V
- Nominal input current at UN
- 11 mA
- Nominal input voltage UN
- DC 24 V
Environmental Requirements
- Ambient temperature (operation at UN)
- -25 … +55 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Ambient temperature UL (operation at UN)
- -25 … +40 °C
- Operating altitude (max.)
- 2000 m
- Processing temperature
- -25 … +50 °C
- Relative humidity
- 5 … 95 % (no condensation permissible)
- Temperature range of connection cable
- ≥ (Tambient + 20 K)
Load Circuit
- Circuit type
- 3-wire connection || Low-side switching
- Leakage current at rated voltage
- ≤ 10 µA
- Limiting continuous current
- 0.5 A
- Nominal output voltage
- DC 5 V
- Output closed-circuit current (without load) max.
- 7 mA
- Output voltage range
- DC 4 … 6.25 V
- Switching frequency
- ≤ 10 kHz
- Turn-off time
- ≤ 15 µs
- Turn-on time
- ≤ 7 µs
- Voltage drop
- ≤ 1.2 VDC
Material Data
- Color
- Gray
- Fire load
- 0.338 MJ
- Weight
- 18.500 g
Mechanical Data
- Mounting position
- Horizontal (standing/lying); vertical
- Mounting type
- DIN-35 rail
Notes
- Note
- Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.
Physical Data
- Depth from upper-edge of DIN-rail
- 56 mm / 2.205 inches
- Height
- 91 mm / 3.583 inches
- Width
- 6 mm / 0.236 inches
Safety And Protection
- Dielectric strength (control/load circuit) (AC, 1 min)
- 2.5 kVrms
- Insulation type (between adjacent devices of the same type)
- Reinforced insulation (safe isolation)
- Insulation type (control/load circuit)
- Basic insulation
- Insulation type (to adjacent devices of different types)
- Basic insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Protection type
- IP20; in connected state or when using 859-525 end plate
- Rated voltage
- 300 V
Signaling
- Status indicator
- Red LED
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- EN 61010-2-201 || EN 61000-6-2 || EN 61000-6-3 || EN 61373 || UL 508
