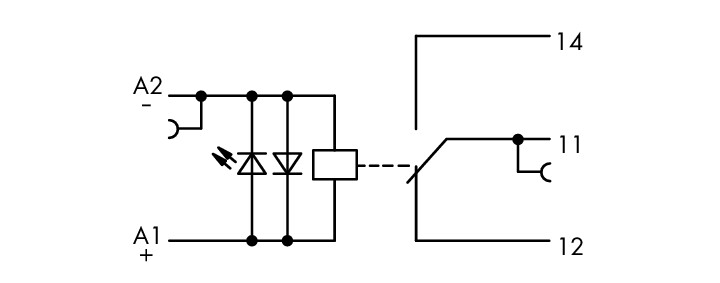

WAGO 859-384

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85364900990
• GTIN
  • 4045454315849
• Packaging type
  • Box

Connection Data

• Connection technology
  • CAGE CLAMP®
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor; with insulated ferrule
  • 0.08 … 1.5 mm² / 28 … 16 AWG
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length
  • 5 … 6 mm / 0.2 … 0.24 inches

Control Circuit

• Input voltage range
  • -30 … +25 %
• Nominal input current at UN
  • 8 mA
• Nominal input voltage UN
  • DC 48 V

Environmental Requirements

• Ambient temperature (operation at UN)
  • -40 … +70 °C
• Ambient temperature (storage)
  • -40 … +70 °C
• Operating altitude (max.)
  • 2000 m
• Processing temperature
  • -25 … +50 °C
• Relative humidity
  • 5 … 95 % (no condensation permissible)
• Temperature range of connection cable
  • ≥ (Tambient + 20 K)

Load Circuit

• Bounce time (typ.)
  • 3.5 ms
• Contact material (relay)
  • AgNi + Au
• Drop-out time (typ.)
  • 25 ms
• Electrical life (NO; resistive load; 23 °C)
  • 50 x 10³ switching operations
• Limiting continuous current
  • 5 A
• Mechanical life
  • 5 x 10⁶ switching operations
• Number of changeover/switchover contacts
  • 1
• Pull-in time (typ.)
  • 15 ms
• Recommended minimum load
  • 1 V / 1 mA / 1 mW
• Switching capacity
  • AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
• Switching frequency with/without load (max.)
  • 6 min-1 / 180 min-1
• Switching power (resistive) max.
  • AC 1250 VA; DC (see load limit curve)
• Switching voltage (max.)
  • AC 250 V

Material Data

• Color
  • Gray
• Fire load
  • 0.338 MJ
• Weight
  • 23.683 g

Mechanical Data

• Mounting position
  • Horizontal (standing/lying); vertical
• Mounting type
  • DIN-35 rail

Notes

• Note
  • To prevent damaging the gold layer, 30 V switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Physical Data

• Depth from upper-edge of DIN-rail
  • 56 mm / 2.205 inches
• Height
  • 91 mm / 3.583 inches
• Width
  • 6 mm / 0.236 inches

Safety And Protection

• Dielectric strength (control/load circuit) (AC, 1 min)
  • 4 kVrms
• Dielectric strength (open contact) (AC, 1 min)
  • 1 kVrms
• Insulation type (adjacent devices)
  • Reinforced insulation (safe isolation)
• Overvoltage category
  • III
• Pollution degree
  • 2
• Protection type
  • IP20; in connected state or when using 859-525 end plate
• Rated surge voltage
  • 4 kV
• Rated voltage
  • 300 V

Signaling

• Status indicator
  • Red LED

Specifications

• Product Group Code
  • 0006

Standards And Specifications

• Standards/specifications
  • EN 61010-2-201 || EN 61810-1 || EN 61373
