WAGO 858-164
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Basic relay; Nominal input voltage: 12 VDC
WAGO 858-164 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85364900990
- GTIN
- 4055143531917
- Packaging type
- Box
Control Circuit
- Nominal input current at UN
- 75 mA
- Nominal input voltage UN
- DC 12 V
Environmental Requirements
- Ambient temperature (operation at UN)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +80 °C
Load Circuit
- Bounce time (typ.)
- 4 ms
- Contact material (relay)
- AgCe
- Drop-out time (typ.)
- 25 ms
- Electrical life (NO; resistive load; 23 °C)
- 100 x 10³ switching operations
- Inrush current (resistive) max.
- (AC) 15 A / 4 s
- Limiting continuous current
- 5 A
- Mechanical life
- 20 x 10⁶ switching operations

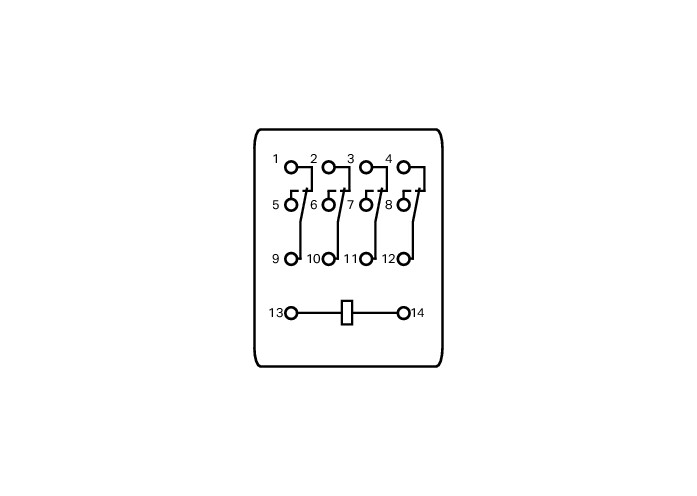

- Number of changeover/switchover contacts
- 4
- Pull-in time (typ.)
- 25 ms
- Recommended minimum load
- 12 V / 100 mA
- Switching power (resistive) max.
- AC 1250 VA; DC (see load limit curve)
- Switching voltage (max.)
- AC 250 V
Material Data
- Fire load
- 0.000 MJ
- Weight
- 37.000 g
Mechanical Data
- Mounting type
- Pluggable module
Physical Data
- Depth
- 28 mm / 1.102 inches
- Height from the surface
- 35 mm / 1.378 inches
- Width
- 21.5 mm / 0.846 inches
Safety And Protection
- Dielectric strength (control/load circuit) (AC, 1 min)
- 1.5 kVrms
- Dielectric strength (load/load circuit) (AC, 1 min)
- 1.5 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Protection type
- IP20
Signaling
- Status indicator
- Red LED || Mechanical
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- EN 61810-1
