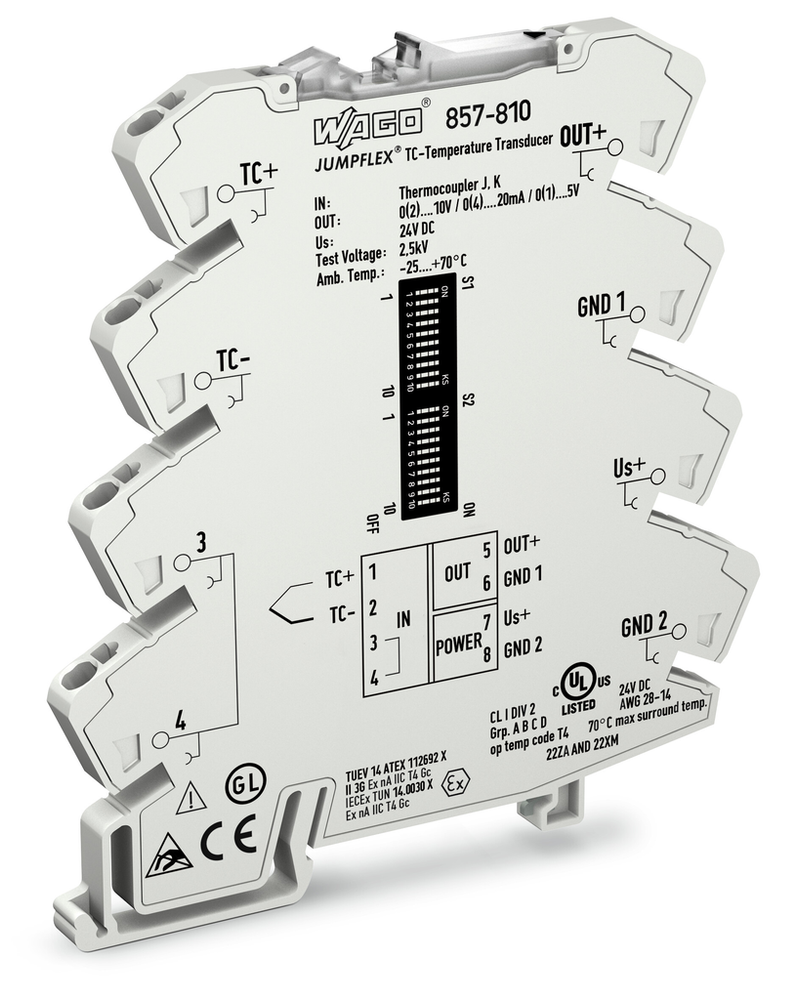

WAGO 857-810
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
JUMPFLEX® signal conditioner; temperature; thermocouples of type J, K; configurable
WAGO 857-810 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85437090300
- GTIN
- 4045454470135
- Packaging type
- Bag
Configuration
- Configuration options
- DIP switch
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 95 % (no condensation permissible)
Input
- Input signal type
- TC sensors
Input (Tc Sensors)
- Cold junction compensation
- ON/OFF (default: ON)
- Cold junction error
- 3 K (typ. 2 K )
- Measurement span (TC) min.
- 100 K
- Sensor types (TC)
- Type J || Type K
- Temperature measurement range (TC)
- -200 … 1200 °C (Type J); -200 … 1350 °C (Type K)
Material Data
- Color
- Light gray
- Fire load
- 0.420 MJ
- Weight
- 35.500 g
Measurement Error
- Temperature coefficient
- ≤ 0.04 %/K
- Transmission error for the set measurement range
- ≤ (150 K/set measurement range [K]) %
- Transmission error (typ.)
- ≤ 0.1% at max. measurement span (type J, K)
Mechanical Data
- Mounting type
- DIN-35 rail
Output (Analog)
- Load impedance (current output)
- ≤ 600 Ω
- Load impedance (voltage output)
- ≥ 2 kΩ
- Output signal (current)
- 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
- Output signal type
- Current || Voltage
- Output signal (voltage)
- 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
Physical Data
- Depth from upper-edge of DIN-rail
- 97.8 mm / 3.85 inches
- Height
- 94 mm / 3.701 inches
- Width
- 6 mm / 0.236 inches
Signaling And Communication
- Configuration options
- DIP switch
Signal Processing
- Step response (typ.)
- 60 ms (cold junction compensation (Off)); 120 ms (cold junction compensation (ON))
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- EMC emission of interference
- EN 61000-6-4
- EMC immunity to interference
- EN 61000-6-2
- Standards/specifications
- DNV
Supply
- Current consumption at nominal supply voltage
- ≤ 40 mA
- Nominal supply voltage US
- DC 24 V
- Power supply type
- 24 VDC
- Supply voltage range
- ±30 %
Test Voltage
- Test voltage (input/output/supply)
- AC 2.5 kV; 50 Hz; 1 min
