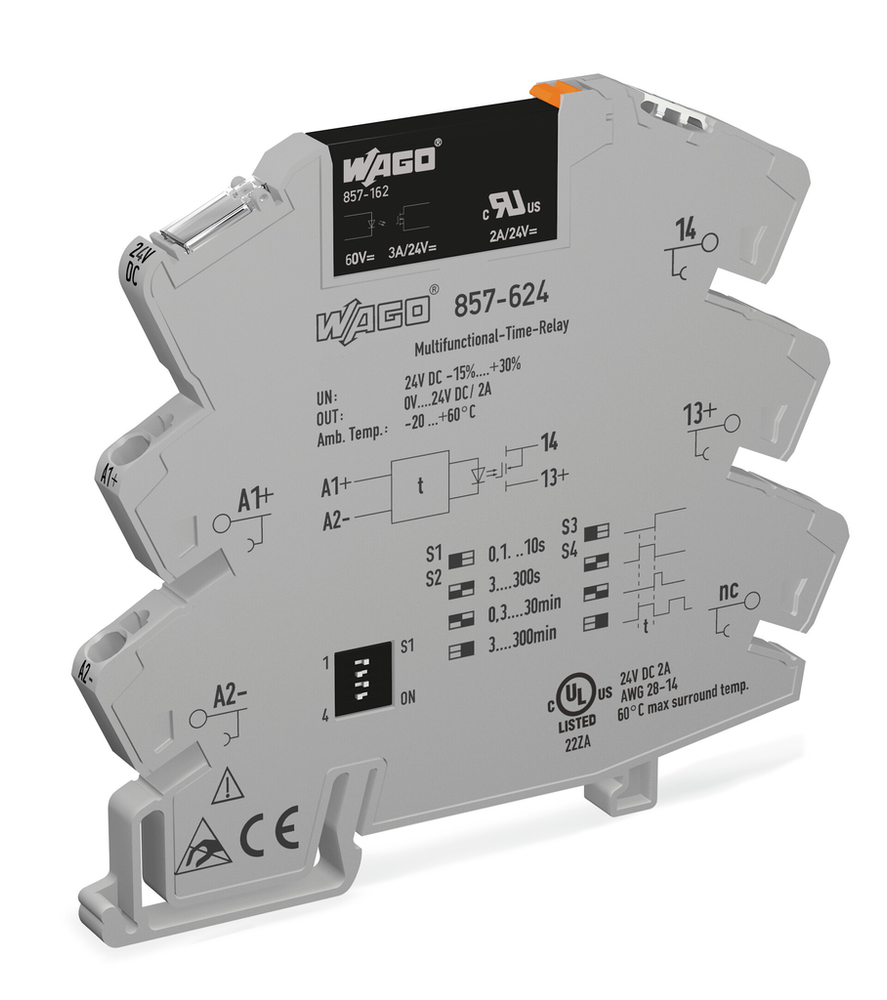

WAGO 857-624
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Solid-state timer relay module; Nominal input voltage: 24 VDC; Output voltage range: 0 … 24 VDC; Limiting continuous current: 2 A; 2-wire connection; Multifunction/Multitime; Yellow status indicator; Module width: 6 mm
WAGO 857-624 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Basic Relay
- WAGO Basic Relay
- 857-161
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85364900990
- GTIN
- 4050821565680
- Packaging type
- Bag
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Control Circuit
- Functions
- On-delay || Single-shot leading edge || On-delay and single-shot leading edge (1 s fixed) || Flashing
- Input voltage range
- -15 … +30 %
- Nominal input current at UN
- 10 mA
- Nominal input voltage UN
- DC 24 V
- Repeat accuracy
- 1 %
- Reset time
- 50 ms
- Time range
- Adjustable: 0.1 … 10 s; 3 … 300 s; 0.3 … 30 min; 3 … 300 min
Environmental Requirements
- Ambient temperature (operation at UN)
- -20 … +60 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Operating altitude (max.)
- 2000 m
- Processing temperature
- -25 … +50 °C
- Relative humidity
- 5 … 95 % (no condensation permissible)
Load Circuit
- Circuit type
- 2-wire connection
- Leakage current at rated voltage
- ≤ 1 µA
- Limiting continuous current
- 2 A
- Nominal output voltage
- DC 24 V
- Output voltage range
- DC 0 … 30 V
- Switching current (min.)
- 50 µA
- Turn-off time
- ≤ 2 ms
- Turn-on time
- ≤ 100 µs
- Voltage drop
- ≤ 0.12 VDC
Material Data
- Fire load
- 0.548 MJ
- Weight
- 29.477 g
Mechanical Data
- Mounting type
- DIN-35 rail
Notes
- Note
- Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.
Physical Data
- Depth from upper-edge of DIN-rail
- 81 mm / 3.189 inches
- Height
- 94 mm / 3.701 inches
- Width
- 6 mm / 0.236 inches
Safety And Protection
- Dielectric strength (control/load circuit) (AC, 1 min)
- 3.75 kVrms
- Protection type
- IP20
Signaling
- Status indicator
- Yellow LED
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- EN 61812-1 || EN 61373 || EN 50121-3-2
