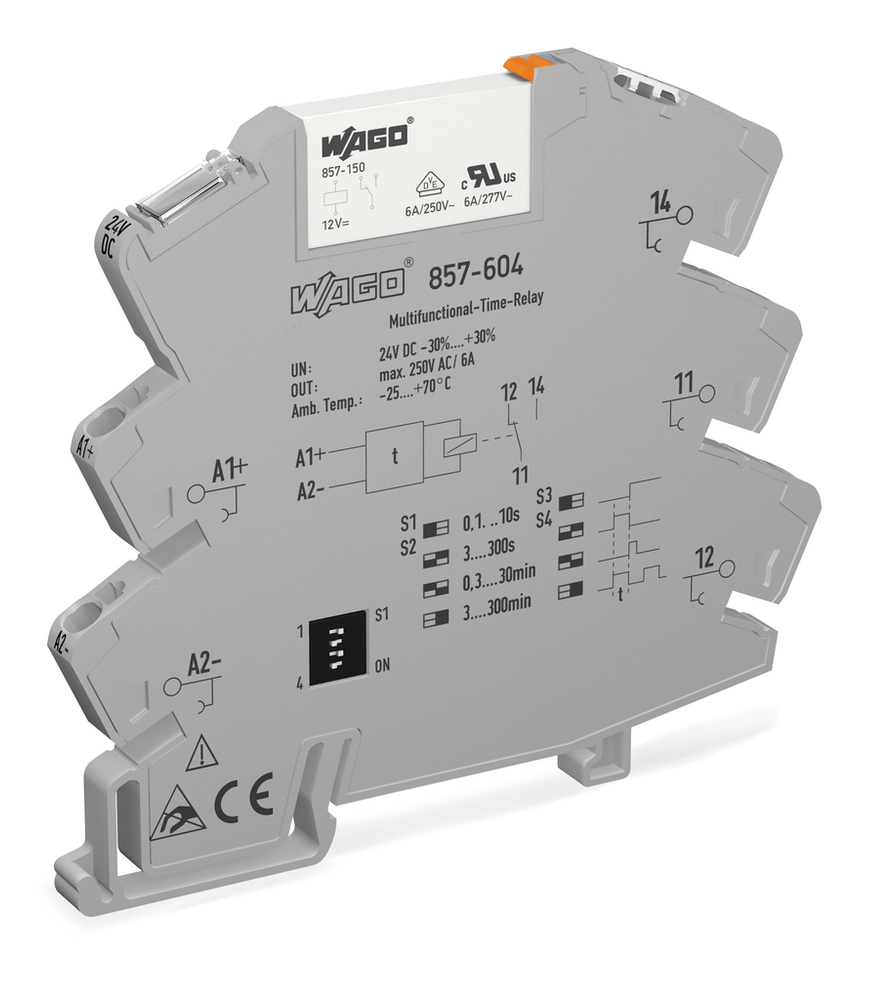

WAGO 857-604
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Timer relay module; Nominal input voltage: 24 VDC; Limiting continuous current: 6 A; Railway; Multifunction; Yellow status indicator; Module width: 6 mm; gray
WAGO 857-604 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Basic Relay
- WAGO Basic Relay
- 857-150
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85364900990
- GTIN
- 4050821565673
- Packaging type
- Bag
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Control Circuit
- Functions
- On-delay || Single-shot leading edge || On-delay and single-shot leading edge (1 s fixed) || Flashing
- Input voltage range
- ±30 %
- Minimum pulse length (control input)
- 10 ms
- Nominal input current at UN
- 18 mA
- Nominal input voltage UN
- DC 24 V
- Repeat accuracy
- 1 %
- Reset time
- 50 ms
- Time range
- Adjustable: 0.1 … 10 s; 3 … 300 s; 0.3 … 30 min; 3 … 300 min
Environmental Requirements
- Ambient temperature (operation at UN)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Operating altitude (max.)
- 2000 m
- Processing temperature
- -25 … +50 °C
- Relative humidity
- 5 … 95 % (no condensation permissible)
Load Circuit
- Bounce time (typ.)
- 3.5 ms
- Contact material (relay)
- AgSnO2
- Drop-out time (typ.)
- 25 ms
- Electrical life (NO; resistive load; 23 °C)
- 50 x 10³ switching operations
- Inrush current (resistive) max.
- (AC) 20 A / 0.02 s
- Limiting continuous current
- 6 A
- Mechanical life
- 5 x 10⁶ switching operations
- Number of changeover/switchover contacts
- 1
- Pull-in time (typ.)
- 15 ms
- Recommended minimum load
- 10 V / 10 mA; 24 V / 1 mA
- Switching capacity
- AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
- Switching power (resistive) max.
- AC 1500 VA; DC (see load limit curve)
- Switching voltage (max.)
- AC 250 V
Material Data
- Color
- Gray
- Fire load
- 0.563 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Weight
- 24.876 g
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 81 mm / 3.189 inches
- Height
- 94 mm / 3.701 inches
- Width
- 6 mm / 0.236 inches
Safety And Protection
- Dielectric strength (control/load circuit) (AC, 1 min)
- 4 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Pollution degree
- 2
- Protection type
- IP20
- Rated surge voltage
- 4 kV
- Rated voltage
- 250 V
Signaling
- Status indicator
- Yellow LED
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- EN 61812-1 || EN 61373 || EN 50121-3-2 || UL 508
