WAGO 857-560
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

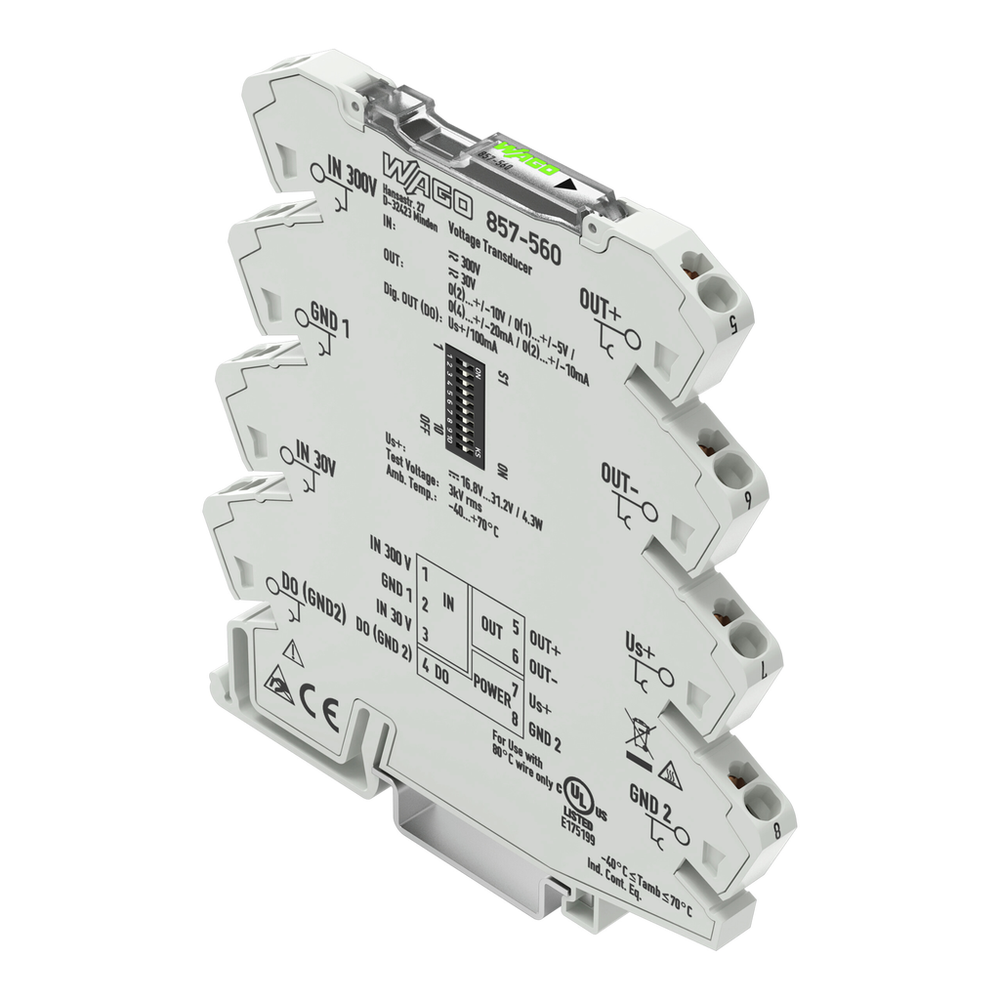

JUMPFLEX® signal conditioner; voltage; configurable; with digital output
WAGO 857-560 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85437090300
- GTIN
- 4055143481571
- Packaging type
- Bag
Configuration
- Configuration options
- DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Environmental Requirements
- Ambient temperature (operation)
- -40 … +70 °C (at nominal current)
- Ambient temperature (storage)
- -40 … +85 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 95 % (no condensation permissible)
- Temperature range of connection cable
- ≥ (Tambient + 10 K)
- Temperature range of connection cable (UL)
- 80 °C
Input
- Frequency range
- 10 … 100 Hz (AC)
- Input resistance (voltage input)
- ≥ 300 kΩ
- Input signal type
- Voltage
- Input signal (voltage)
- AC/DC 300 V (IN 1); AC/DC 30 V (IN 2)
- Measurement frequency
- AC 10 … 100 Hz
- Resolution (voltage)
- 30 mV (IN 1) || 3 mV (IN 2)
- Response threshold
- 300 mV (IN 1); 30 mV (IN 2)
Insulation Parameters
- Insulation type (input/analog output/supply/service interface)
- Double insulation (impedance and basic insulation)Requirement: The GND 1 input is dangerous when active and the measurement is conducted as a low-side measurement!
- Overvoltage category
- II
- Pollution degree
- 2
Insulation Parameters(Ul)
- Insulation type (input/analog output/supply/service interface)
- Reinforced insulation (safe isolation)
- Overvoltage category
- II
- Pollution degree
- 2
Material Data
- Fire load
- 0.013 MJ
- Weight
- 40.000 g
Measurement Error
- Temperature coefficient
- ≤ 0.01 %/K
- Transmission error (max.)
- ≤ 0.5 % (of the full scale value)
Mechanical Data
- Mounting type
- DIN-35 rail
Output (Analog)
- Load impedance (current output)
- ≤ 600 Ω
- Load impedance (voltage output)
- ≥ 1 kΩ
- Output signal (current)
- 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA (can be inverted, also bipolar)
- Output signal type
- Current || Voltage
- Output signal (voltage)
- 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (can be inverted, also bipolar)
Output (Digital)
- Configurable rise/fall delay time (DO)
- 0 … 60 s (via software)
- Continuous current (DO) max.
- 100 mA (no internal restriction)
- Number of switching thresholds (DO)
- 1 or 2 (adjustable)
- Switching voltage (DO) max.
- Applied supply voltage
Physical Data
- Depth from upper-edge of DIN-rail
- 97.8 mm / 3.85 inches
- Height
- 94 mm / 3.701 inches
- Width
- 6 mm / 0.236 inches
Signaling And Communication
- Configuration options
- DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App
- Input signal (voltage)
- AC/DC 300 V (IN 1); AC/DC 30 V (IN 2)
Signal Processing
- Limit frequency
- 2 kHz
- Measurement method
- RMS measurement; Arithmetic mean value
- Software filter (adjustable)
- Moving average value (filter level: 30)
- Step response (typ.)
- 30 ms
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- EMC emission of interference
- EN 61000-6-3; EN 61326-2-3; EN 50121-3-2
- EMC immunity to interference
- EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
- Standards/specifications
- EN 61010-1 || EN 61373 || EN 50121-3-2
Supply
- Current consumption at nominal supply voltage
- ≤ 46 mA (+ IDO)
- Nominal supply voltage US
- DC 24 V
- Power supply type
- 24 VDC
- Supply voltage range
- ±30 %
Test Voltage
- Test voltage (input/analog output/supply/service interface)
- 2.5 kVAC; 50 … 60 Hz; 1 min
