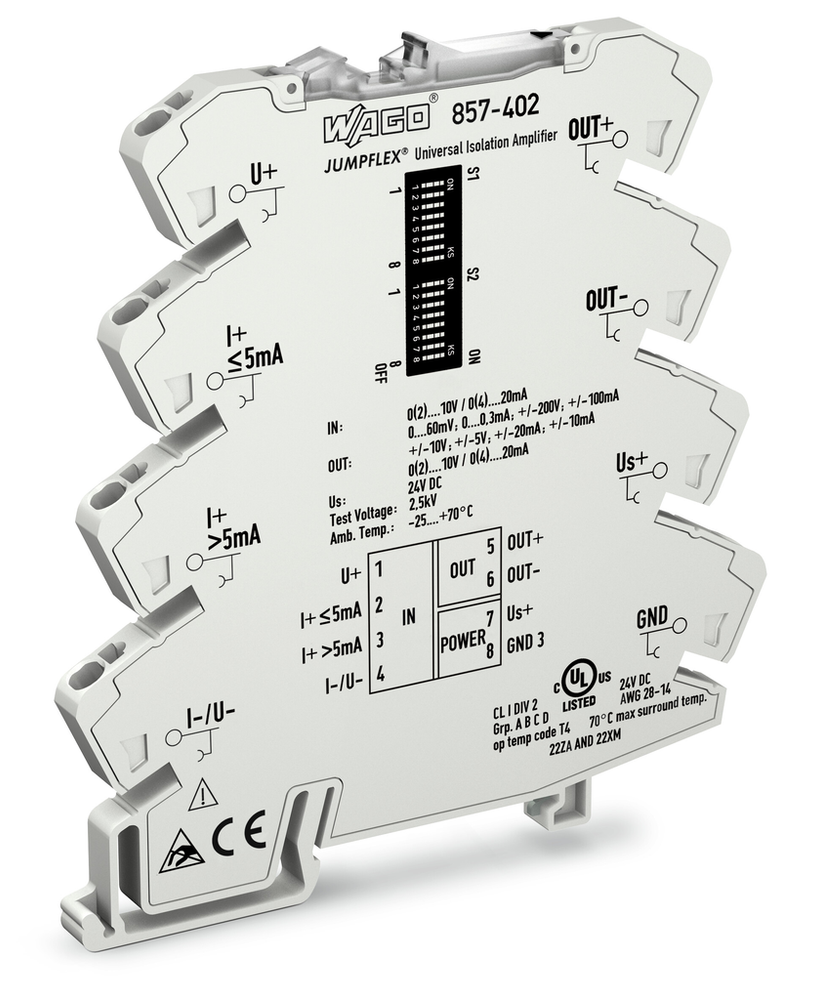

WAGO 857-402
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
JUMPFLEX® signal conditioner; universal isolation amplifier; configurable
WAGO 857-402 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85437090300
- GTIN
- 4050821099772
- Packaging type
- Bag
Configuration
- Configuration options
- DIP switch || Push/slide switch
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 95 % (no condensation permissible)
Input
- Input resistance (current input)
- 10 Ω (≥ 5 mA); 100 Ω (≤ 5 mA)
- Input resistance (voltage input)
- 1 MΩ
- Input signal (current)
- ±0.3 mA; 0 … 0.3 mA; ±1 mA; 0 … 1 mA; ±5 mA; 0 … 5 mA; ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA; ±50 mA; 0 … 50 mA; ±100 mA; 0 … 100 mA
- Input signal type
- Voltage || Current
- Input signal (voltage)
- ±60 mV; 0 … 60 mV; ±100 mV; 0 … 100 mV; ±150 mV; 0 … 150 mV; ±300 mV; 0 … 300 mV; ±500 mV; 0 … 500 mV; ±1 V; 0 … 1 V; ±5 V; 0 … 5 V; 1 … 5 V; ±10 V; 0 … 10 V; 2 … 10 V; ±100 V; 0 … 100 V; ±200 V; 0 … 200 V
- Zero/span adjustment
- Adjustable via push/slide switch
Material Data
- Fire load
- 0.598 MJ
- Weight
- 38.400 g
Measurement Error
- Temperature coefficient
- ≤ 0.01 %/K
- Transmission error (typ.)
- ≤ 0.08 % of upper-range value
Mechanical Data
- Mounting type
- DIN-35 rail
Output (Analog)
- Load impedance (current output)
- ≤ 600 Ω
- Load impedance (voltage output)
- ≥ 2 kΩ
- Output signal (current)
- ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA
- Output signal type
- Current || Voltage
- Output signal (voltage)
- ± 5 V; 0 … 5 V; 1 … 5 V; ± 10 V; 0 … 10 V; 2 … 10 V
Physical Data
- Depth from upper-edge of DIN-rail
- 97.8 mm / 3.85 inches
- Height
- 94 mm / 3.701 inches
- Width
- 6 mm / 0.236 inches
Signaling And Communication
- Configuration options
- DIP switch || Push/slide switch
- Input signal (voltage)
- ±60 mV; 0 … 60 mV; ±100 mV; 0 … 100 mV; ±150 mV; 0 … 150 mV; ±300 mV; 0 … 300 mV; ±500 mV; 0 … 500 mV; ±1 V; 0 … 1 V; ±5 V; 0 … 5 V; 1 … 5 V; ±10 V; 0 … 10 V; 2 … 10 V; ±100 V; 0 … 100 V; ±200 V; 0 … 200 V
Signal Processing
- Limit frequency
- 100 Hz / 5 kHz (configurable via DIP switch)
- Step response (typ.)
- 3.5 ms (100 Hz); 100 µs (5 kHz)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- EMC emission of interference
- EN 61000-6-4
- EMC immunity to interference
- EN 61000-6-2
Supply
- Current consumption at nominal supply voltage
- ≤ 40 mA
- Nominal supply voltage US
- DC 24 V
- Power supply type
- 24 VDC
- Supply voltage range
- ±30 %
Test Voltage
- Test voltage (input/output/supply)
- AC 2.5 kV; 50 Hz; 1 min
