WAGO 857-165
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Basic solid-state relay; Nominal input voltage: 60 VDC; Output voltage range: 0 … 48 VDC
WAGO 857-165 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- IT
- Customs tariff number
- 85365005000
- GTIN
- 4045454997663
- Packaging type
- Box
Control Circuit
- Input voltage range (high level)
- DC 35 … 72 V
- Input voltage range (low level)
- DC 0 … 10 V
- Nominal input current at UN
- 3 mA
- Nominal input voltage UN
- DC 60 V
Environmental Requirements
- Ambient temperature (operation at UN)
- -30 … +80 °C
- Ambient temperature (storage)
- -40 … +100 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 95 % (no condensation permissible)
Load Circuit
- Circuit type
- 2-wire connection
- Leakage current at rated voltage
- ≤ 1 µA
- Limiting continuous current
- 0.1 A
- Nominal output voltage
- DC 24 V
- Output voltage range
- DC 0 … 48 V
- Switching current (min.)
- 50 µA
- Switching frequency
- ≤ 1 kHz
- Turn-off time
- ≤ 600 µs
- Turn-on time
- ≤ 100 µs
- Voltage drop
- ≤ 1 VDC
Material Data
- Fire load
- 0.000 MJ
- Weight
- 4.590 g
Mechanical Data
- Mounting type
- Pluggable module
Notes
- Note
- Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

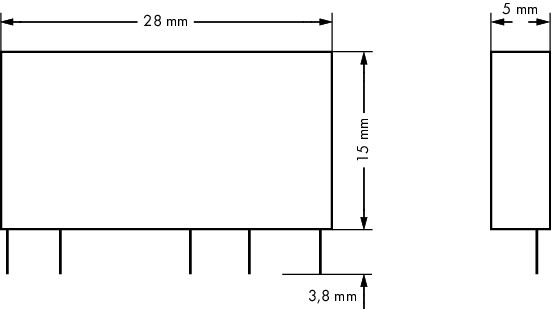

Physical Data
- Depth
- 28 mm / 1.102 inches
- Height from the surface
- 15 mm / 0.591 inches
- Width
- 5 mm / 0.197 inches
Safety And Protection
- Dielectric strength (control/load circuit) (AC, 1 min)
- 3.75 kVrms
Specifications
- Product Group Code
- 0006
