WAGO 857-151
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

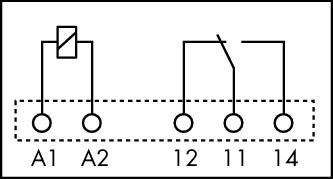

Basic relay; Nominal input voltage: 12 VDC; 1 changeover contact; Limiting continuous current: 6 A; with gold contacts; Module width: 5 mm
WAGO 857-151 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85364900990
- GTIN
- 4055143693257
- Packaging type
- Box
Control Circuit
- Nominal input voltage UN
- DC 12 V
Environmental Requirements
- Ambient temperature (operation at UN)
- -40 … +85 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 85 % (no condensation permissible)
Load Circuit
- Bounce time (typ.)
- 3.5 ms
- Contact material (relay)
- AgNi + Au
- Drop-out time (typ.)
- 4 ms
- Electrical life (NO; resistive load; 23 °C)
- 50 x 10³ switching operations
- Inrush current (resistive) max.
- (AC) 20 A / 0.02 s
- Limiting continuous current
- 6 A
- Mechanical life
- 5 x 10⁶ switching operations
- Number of changeover/switchover contacts
- 1
- Pull-in time (typ.)
- 8 ms
- Recommended minimum load
- 1 V / 1 mA / 1 mW
- Switching capacity
- AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
- Switching frequency with/without load (max.)
- 6 min-1 / 180 min-1
- Switching power (resistive) max.
- AC 1500 VA; DC (see load limit curve)
- Switching voltage (max.)
- AC 250 V
Material Data
- Fire load
- 0.000 MJ
- Weight
- 5.700 g
Mechanical Data
- Mounting type
- Pluggable module
Notes
- Note
- To prevent damaging the gold layer, 30 V switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
Physical Data
- Depth
- 28 mm / 1.09 inches
- Height from the surface
- 15 mm / 0.591 inches
- Width
- 5 mm / 0.197 inches
Safety And Protection
- Dielectric strength (control/load circuit) (AC, 1 min)
- 4 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Protection type
- IP20
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- EN 61810-1 || EN 61373 || VDE || UR
