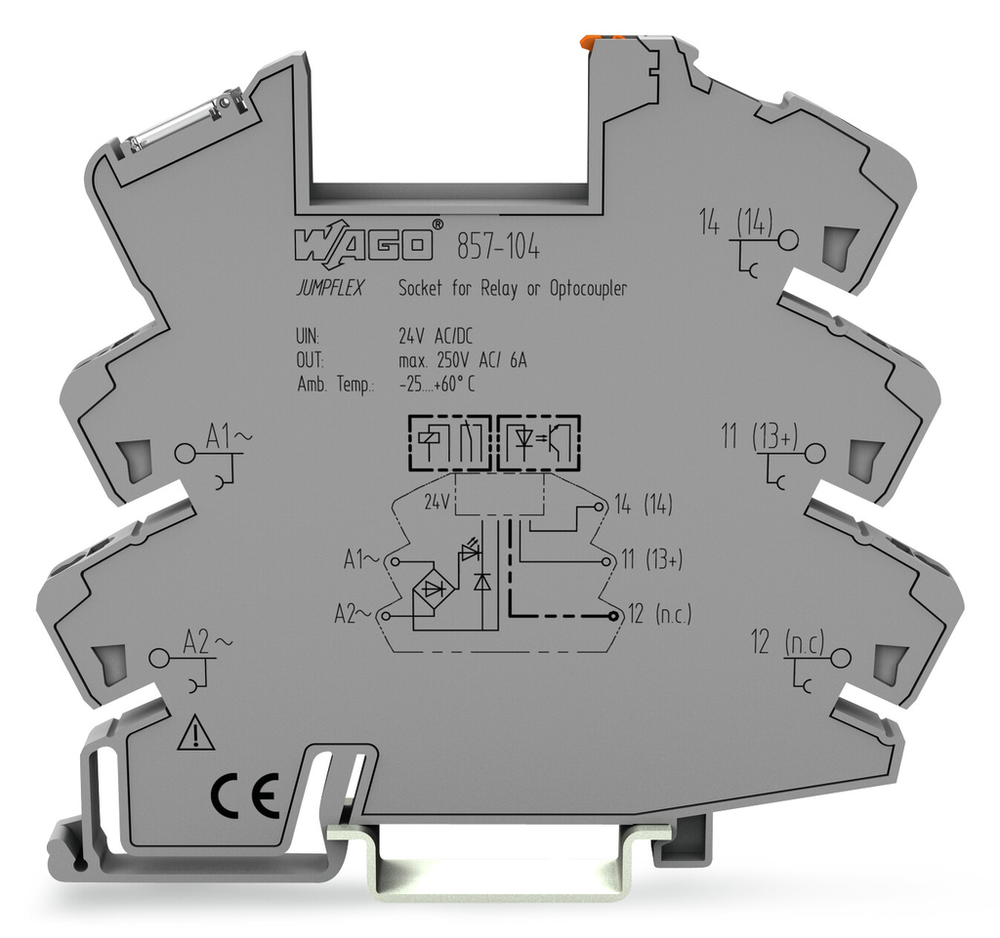

WAGO 857-104
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Relay socket; Nominal input voltage: 24 V AC/DC; for 5 mm basic relays; Yellow status indicator
WAGO 857-104 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85366990990
- GTIN
- 4055143093729
- Packaging type
- Box
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.34 … 1.5 mm² / 22 … 16 AWG
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Control Circuit
- Nominal input voltage UN
- AC/DC 24 V
Environmental Requirements
- Ambient temperature (operation at UN)
- -40 … +70 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Operating altitude (max.)
- 2000 m
- Processing temperature
- -25 … +50 °C
- Relative humidity
- 5 … 85 % (no condensation permissible)
- Temperature range of connection cable
- ≥ (Tambient + 30 K)
Load Circuit
- Limiting continuous current
- 6 A
- Switching voltage (max.)
- AC 250 V
Material Data
- Fire load
- 0.552 MJ
- Weight
- 26.320 g
Mechanical Data
- Mounting position
- Horizontal (standing/lying); vertical
- Mounting type
- DIN-35 rail
Notes
- Note
- The relay/SSR used influences the electrical properties of the module.
Physical Data
- Depth from upper-edge of DIN-rail
- 81 mm / 3.189 inches
- Height
- 94 mm / 3.701 inches
- Width
- 6 mm / 0.236 inches
Safety And Protection
- Dielectric strength (control/load circuit) (AC, 1 min)
- 3.51 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Insulation type (between adjacent devices of the same type)
- Reinforced insulation (safe isolation)
- Insulation type (control/load circuit)
- Reinforced insulation (safe isolation)
- Overvoltage category
- III
- Pollution degree
- 2
- Protection type
- IP20
- Rated surge voltage
- 4 kV
- Rated voltage
- 300 V
- Type of circuits
- Mains circuits
Signaling
- Status indicator
- Yellow LED
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- EN 61010-2-201 || UR
