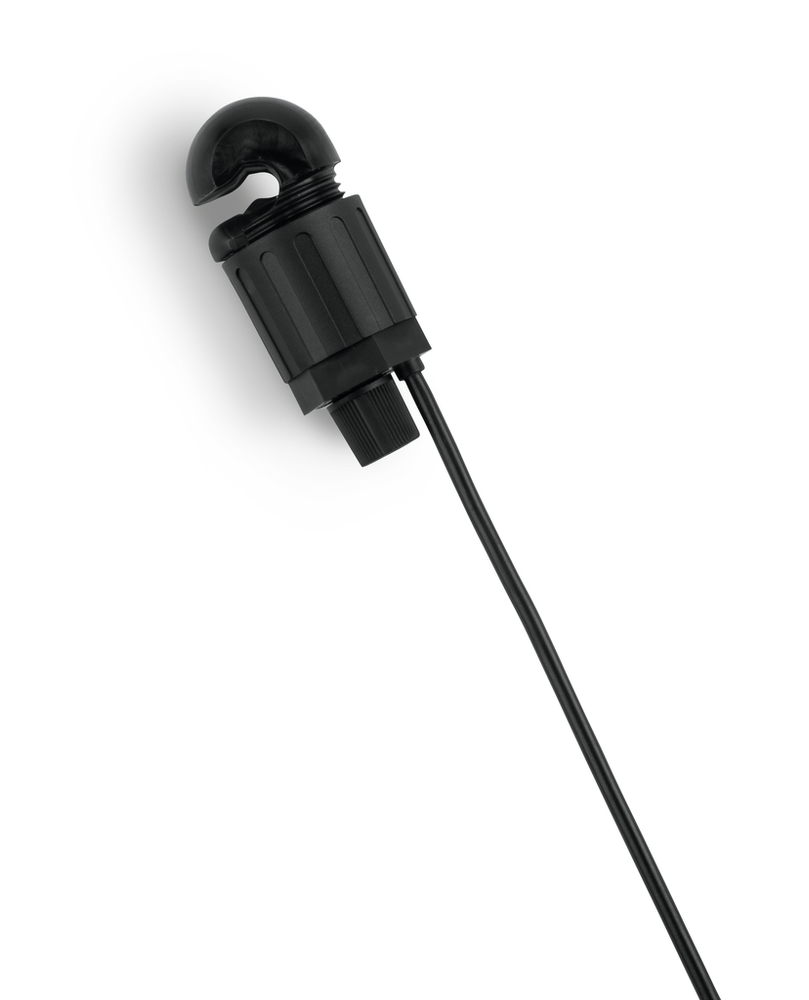

WAGO 855-8003
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Voltage tap; with fuse; 8-6 AWG; Phase
WAGO 855-8003 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- NL
- Customs tariff number
- 85366990990
- GTIN
- 4055143371797
- Packaging type
- Box
Connection Data
- Cable type
- Secondary side: 1 x 1.0 mm²; flexible; with ferrule
- Connection technology
- IDC connection
- Feedthrough for measurement conductor
- 5 … 7 mm Ø
- Fine-stranded conductor
- 10 … 16 mm² / 8 … 6 AWG
- Solid conductor
- 10 … 16 mm² / 8 … 6 AWG
Environmental Requirements
- Ambient temperature (operation)
- -5 … +55 °C
- Ambient temperature (storage)
- -20 … +70 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 85 % (without condensation)
Material Data
- Fire load
- 0.000 MJ
- Flammability class per UL94
- V2
- Housing material
- PA 66
- Weight
- 72.600 g
Mechanical Data
- Mounting type
- Insulation displacement connection || Mounting on insulated round cable
- Torque range
- 1.5 … 2 Nm
- Usability
- Can be reused several times (max. 24 times)
Notes
- Note
- Spare fuse: WAGO 855-8020
Output (Voltage Tap)
- Continuous current (max.)
- 2 A
- Fuse (voltage path)
- 2 A; 450 V; F; 70 kA; 5 x 25 mm (WAGO 855-8020)
- Rated voltage
- AC 400 V
- Voltage drop
- ≤ 0.5 VAC
Physical Data
- Cable length
- 3 m
- Depth
- 23 mm / 0.906 inches
- Height
- 59 mm / 2.323 inches
- Width
- 23 mm / 0.906 inches
Specifications
- Product Group Code
- 0029
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 60947-7-1
Test Voltage
- Test voltage
- AC 3 kV; 50 Hz; 1 min
