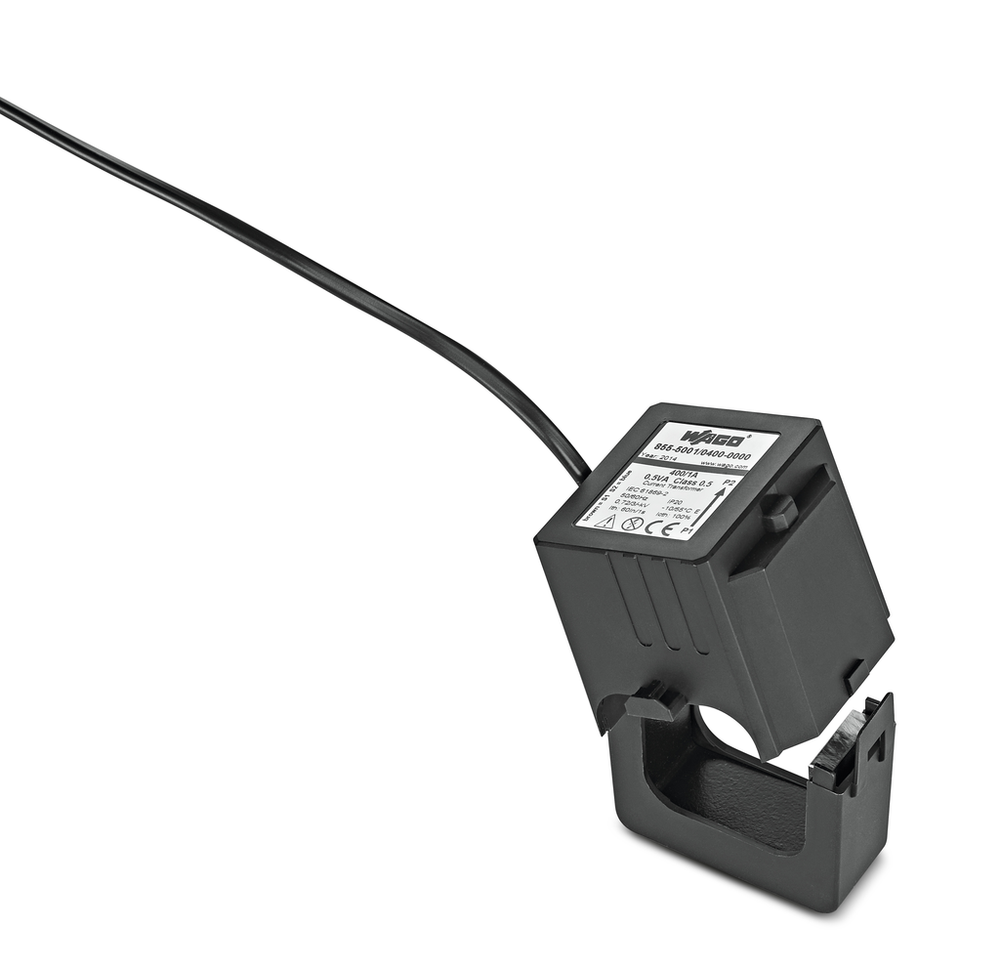

WAGO 855-5001/800-000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Split-core current transformer; Primary rated current: 800 A; Secondary rated current: 1 A; Rated power: 0.5 VA; Accuracy class: 0.5
WAGO 855-5001/800-000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- NL
- Customs tariff number
- 85043180888
- GTIN
- 4055143950763
- Packaging type
- Box
Connection Data
- Cable type
- 2 x 0.5 mm²; fine-stranded
- Color code
- Brown = S1; blue = S2
- Feedthrough for measurement conductor
- Ø 42 mm
Environmental Requirements
- Ambient temperature (operation)
- -10 … +55 °C
- Ambient temperature (storage)
- -20 … +70 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 85 % (without condensation)
Input Current Transformers
- Primary rated current
- 800 A
- Rated continuous thermal current Icth
- 100 %
- Rated frequency
- 50 … 60 Hz
- Rated short-time thermal current Ith
- 60 x IN / 1 s
- Rated surge current Idyn
- 2.5 x Ith
Material Data
- Fire load
- 0.000 MJ
- Flammability class per UL94
- V2
- Weight
- 690.000 g
Measurement Error
- Accuracy class
- 0.5
Mechanical Data
- Mounting type
- Split-core current transformer (suspended)
Output (Current Transformer)
- Rated power Sr
- 0.5 VA
- Secondary rated current
- 1 A
Physical Data
- Cable length
- 5 m
Specifications
- Product Group Code
- 0029
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61869-1 || EN 61869-2
Test Voltage
- Test voltage
- AC 3 kV; 50 Hz; 1 min
