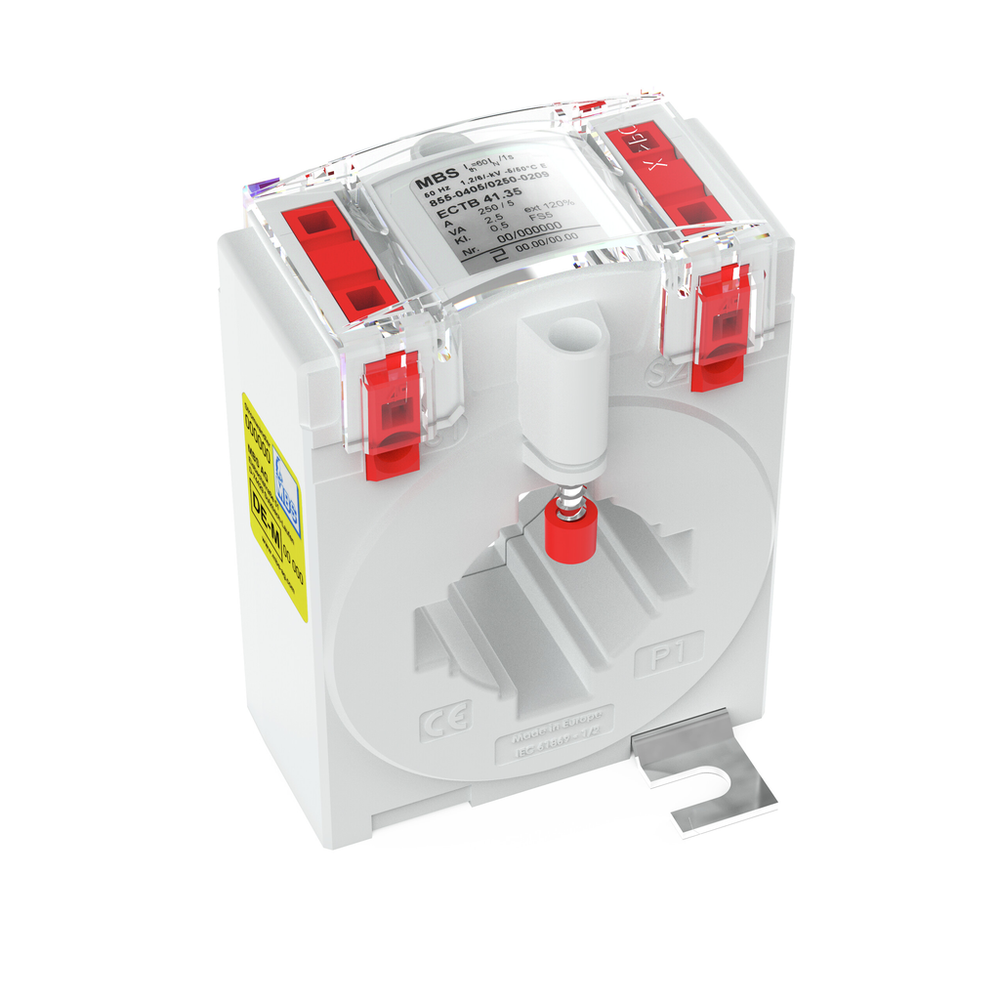

WAGO 855-405/300-509
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Plug-in current transformer; Primary rated current 300 A; Secondary rated current: 5 A; Rated power: 5 VA; Accuracy class: 0.5; for billing purposes
WAGO 855-405/300-509 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85043129900
- GTIN
- 4066966094596
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 4 mm² / 28 … 12 AWG
- Solid conductor
- 0.08 … 4 mm² / 28 … 12 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Environmental Requirements
- Ambient temperature (operation)
- -5 … +50 °C
- Ambient temperature (storage)
- -25 … +70 °C
- Operating altitude (max.)
- 1000 m
Input Current Transformers
- Overcurrent limiting factor
- FS5 / FS10 (type dependent; see type plate inscription)
- Primary rated current
- 300 A
- Rated continuous thermal current Icth
- AC 1.2 x IN
- Rated frequency
- 50 … 60 Hz
- Rated short-time thermal current Ith
- 60 x IN / 1 s (max. 100 kA / 1 s)
Material Data
- Fire load
- 0.000 MJ
- Insulation class
- E
- Weight
- 230.000 g
Measurement Error
- Accuracy class
- 0.5
Mechanical Data
- Mounting type
- Closed current transformer || Installation on mounting plate || Mounting on DIN-rail via DIN-rail adapter || Installation on round cable
Output (Current Transformer)
- Rated power Sr
- 5 VA
- Secondary rated current
- 5 A
Physical Data
- Depth
- 52 mm / 2.047 inches
- Height
- 91.15 mm / 3.589 inches
- Width
- 70 mm / 2.756 inches
Specifications
- Product Group Code
- 0029
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61869-1 || EN 61869-2
Test Voltage
- Test voltage
- AC 6 kV; 50 Hz; 1 min
