Description
Plug-in current transformer; 32 A / .32 A; with picoMAX® connector
WAGO 855-1700/032-000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- NL
- Customs tariff number
- 85043129900
- GTIN
- 4055143333436
- Packaging type
- Box
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Feedthrough for measurement conductor
- Ø 5.0 mm
- Fine-stranded conductor
- 0.2 … 1.5 mm² / 24 … 14 AWG
- Solid conductor
- 0.2 … 1.5 mm² / 24 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- WAGO connector
- picoMAX® 3.5, 2091-1122
Environmental Requirements
- Ambient temperature (operation)
- -10 … +55 °C
- Ambient temperature (storage)
- -20 … +70 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 85 % (without condensation)
Input Current Transformers
- Primary rated current
- 32 A
- Rated frequency
- 50 … 60 Hz
- Rated short-time thermal current Ith
- 2 kA / 0.1 s
- Rated surge current Idyn
- 2.5 x Ith
Material Data
- Fire load
- 0.000 MJ
- Housing material
- PA 66
- Insulation class
- E
- Weight
- 11.000 g
Measurement Error
- Accuracy class
- 0.5
Mechanical Data
- Mounting type
- Closed current transformer || Installation on round cable
Notes
- Note
- The 855-1700/032-000 Plug-In Current Transformer is exclusive to the WAGO I/O System and shall only be used with WAGO's 750 Series 3-Phase Power Measurement Modules.Recommended conductor cross-section and length: 1.5 mm² (14 AWG) and maximum 3.0 m at the outputMeasurement range: 0.8 to 32 A in combination with the 3-Phase Power Measurement Modules (750-493/-494/-495)Testing adheres to EN 61869-2 with a conversion ratio of 16 A/0.16 A (accuracy class: 0.5) and an extended primary current of 200%.
Output (Current Transformer)
- Rated power Sr
- 0.01 VA
- Secondary rated current
- 0.32 A

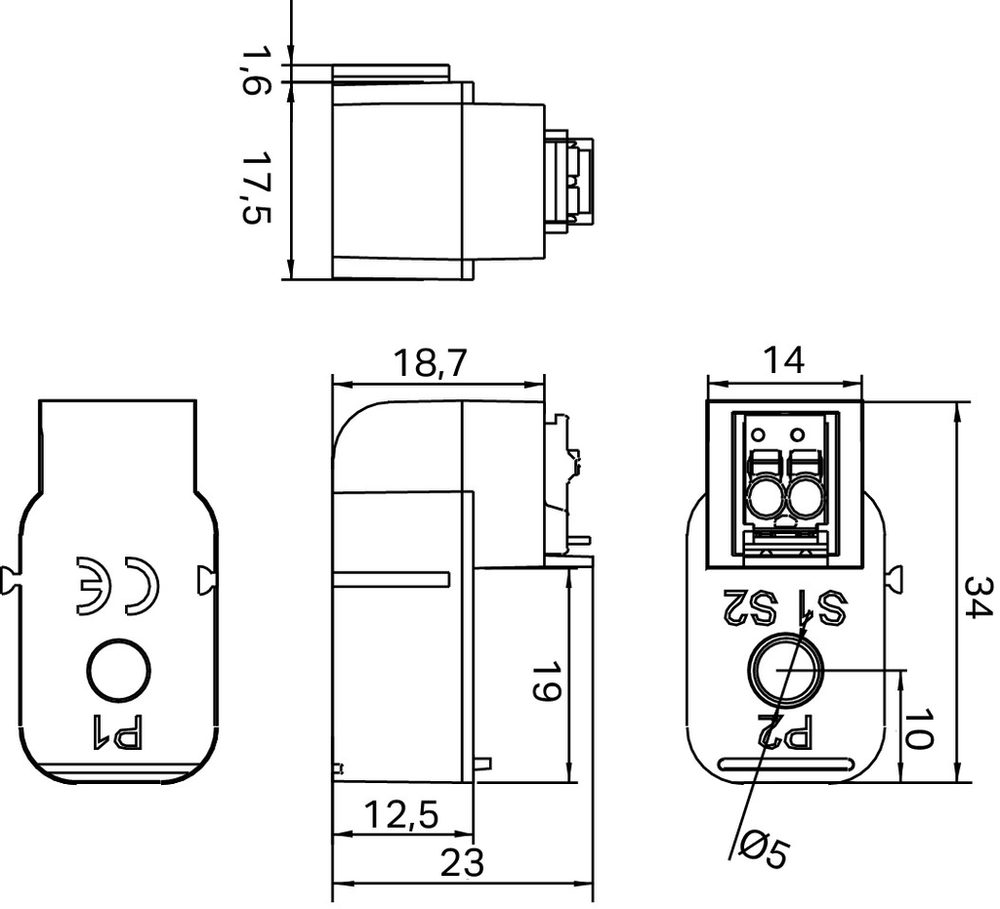

Physical Data
- Depth
- 23 mm / 0.906 inches
- Height
- 34 mm / 1.339 inches
- Width
- 17 mm / 0.669 inches
Specifications
- Product Group Code
- 0029
Standards And Specifications
- Standards/specifications
- EN 61869-2 || EN 61010-1
Test Voltage
- Test voltage
- AC 3 kV; 50 Hz; 1 min
