WAGO 832-1206
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

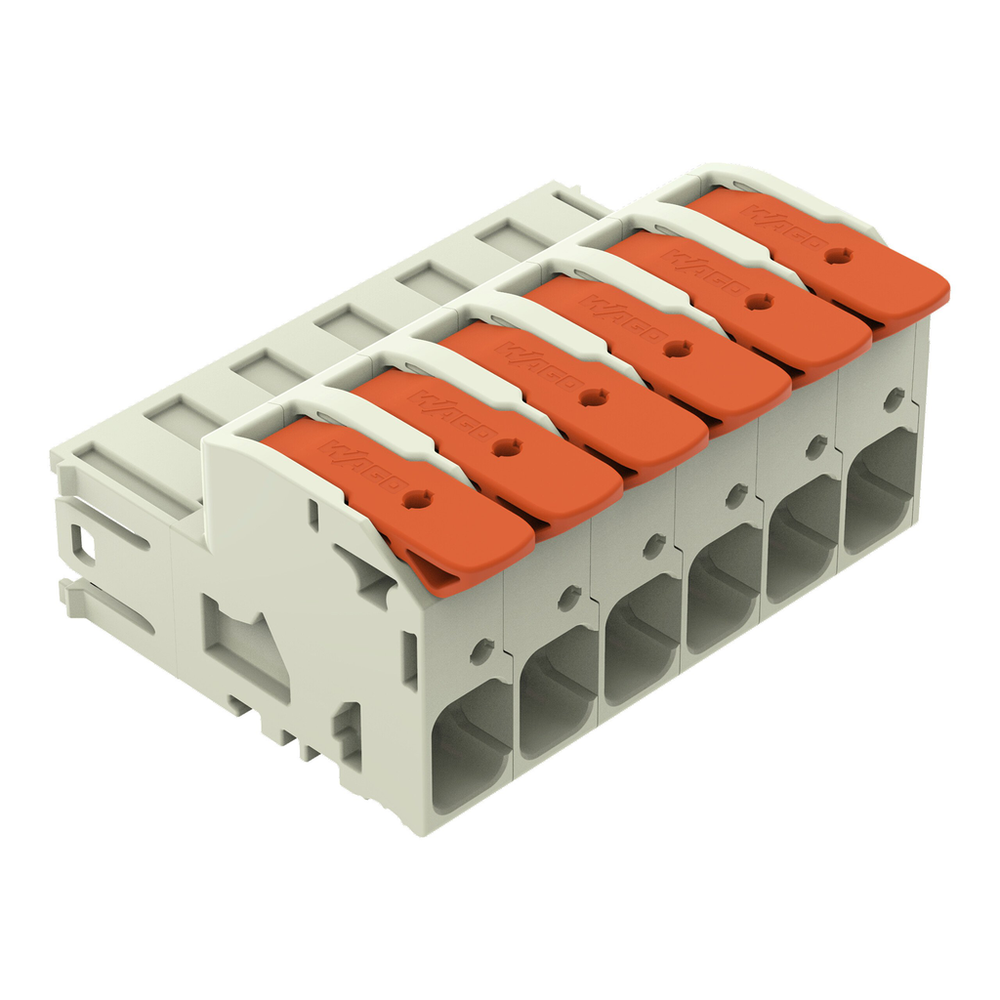

Male connector; Push-in CAGE CLAMP with operating lever; AWG 18 - 4; Pin spacing 10.16 mm; 6-pole
WAGO 832-1206 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85366990990
- GTIN
- 4055143749015
- Packaging type
- Box
Connection 1
- Actuation type
- Lever
- Conductor entry direction to mating direction
- 0 °
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.75 … 25 mm² / 18 … 4 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.75 … 16 mm²
- Fine-stranded conductor; with uninsulated ferrule
- 0.75 … 16 mm²
- Pole number
- 6
- Solid conductor
- 0.75 … 16 mm² / 18 … 4 AWG
- Strip length
- 18 … 20 mm / 0.71 … 0.79 inches
Environmental Requirements
- Limit temperature range
- -60 … +120 °C
- Processing temperature
- -35 … +60 °C
Material Data
- Actuator color
- Orange
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Color
- Light gray
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Silver
- Fire load
- 1.296 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polybutylene terephthalate (PBT)
- Material group
- I
- Note (material data)
- Weight
- 73.354 g
Mechanical Data
- Anti-rotation protection
- Yes
- Variable coding
- Yes
Notes
- Safety information
- The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
- Variants:
- Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.
Physical Data
- Depth
- 50.6 mm / 1.992 inches
- Height
- 29.1 mm / 1.146 inches
- Pin spacing
- 10.16 mm / 0.4 inches
- Width
- 62.26 mm / 2.451 inches
Plug-In Connection
- Connector (connection type)
- For conductor
- Contact type (pluggable connector)
- Male connector/plug
- Locking of plug-in connection
- null
- Mismating protection
- Yes
- Plugging without loss of pin spacing
- No
Ratings Per Csa
- Approvals per
- CSA
- Rated current CSA (Use Group B)
- 66 A
- Rated current CSA (Use Group C)
- 66 A
- Rated voltage CSA (Use Group B)
- 600 V
- Rated voltage CSA (Use Group C)
- 600 V
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 1000 V
- Nominal voltage (III/3)
- 1000 V
- Rated current
- 76 A
- Rated impulse voltage (III/2)
- 8 kV
- Rated impulse voltage (III/3)
- 8 kV
- Rated surge voltage (II/2)
- 8 kV
- Rated voltage (III/2)
- 1000 V
- Ratings per
- IEC/EN 60664-1
Ratings Per Ul 1059
- Approvals per
- UL 1059
- Rated current UL (Use Group B)
- 66 A
- Rated current UL (Use Group C)
- 66 A
- Rated voltage UL (Use Group B)
- 600 V
- Rated voltage UL (Use Group C)
- 600 V
Ratings Per Ul 1977
- Rated current UL 1977
- 85 A
- Rated voltage (UL 1977)
- 600 V
Specifications
- Product Group Code
- 0003
