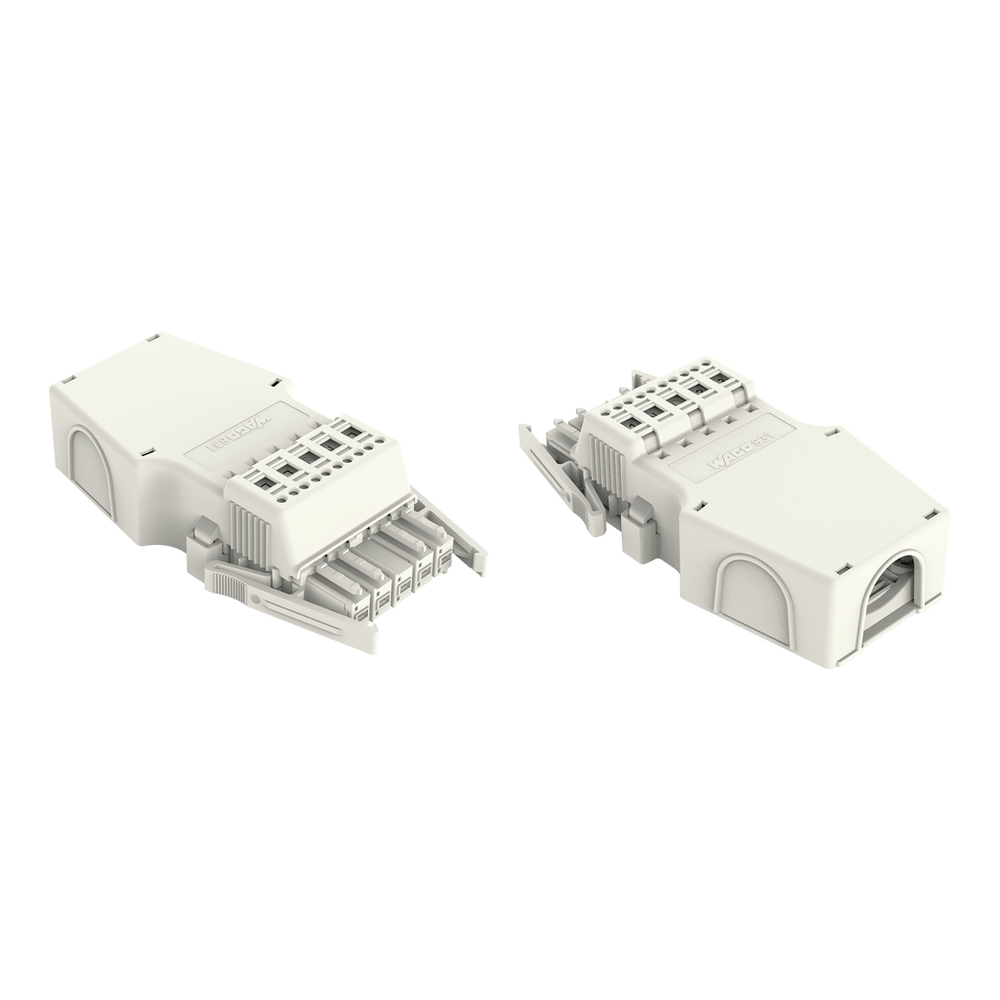

WAGO 831-3105/1019-050

Commercial Data

• Country of origin
  • PL
• Customs tariff number
  • 85366990990
• GTIN
  • 4055143500753
• Packaging type
  • Box

Connection 1

• Actuation type
  • Operating tool || Push-in
• Conductor entry direction to mating direction
  • 0 °
• Connectable sheathed cable diameter
  • 13 … 18 mm
• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.5 … 6 mm² / 20 … 8 AWG
• Nominal cross-section
  • 6 mm² / 8 AWG
• Pole number
  • 5
• Solid conductor
  • 0.5 … 6 mm² / 20 … 8 AWG
• Stranded conductor
  • 0.5 … 4 mm² / 20 … 12 AWG
• Strip length
  • 13 mm / 0.51 inches

Environmental Requirements

• Continuous operating temperature
  • -35 … +85 °C
• Note on continuous operating temperature
  • Insulating parts for temperatures ≤ 105 °C
• Processing temperature
  • -5 … +40 °C

General

• Note on contact resistance
  • Approx. 1 mΩ of contact resistance
approx. 0.25 mΩ contact transition plug/socket

Material Data

• Clamping spring material
  • Chrome-nickel spring steel (CrNi)
• Color
  • White
• Contact material
  • Copper or copper alloy; surface-treated
• Contact plating
  • Tin
• Cover color
  • Gray
• Fire load
  • 1.463 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 74.551 g

Mechanical Data

• Application
  • General mains applications
• Coding
  • A
• Marking
  • L1 N ⏚ L2 L3
• Mating force of a plug-in connection
  • Approx. 30 … 70 N (depending on number of poles)
• Number of mating cycles
  • 100, without resistive load
• Potential marking
  • L1 N ⏚ L2 L3
• Protection type
  • IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
• Retention force of a plug-in connection
  • Locked: > 80 N
• Unmating force of a plug-in connection
  • Unlocked: approx. 30 … 70 N (depending on number of poles)
• Variable coding
  • No

Physical Data

• Depth
  • 41.9 mm / 1.65 inches
• Height
  • 27.55 mm / 1.085 inches
• Pin spacing
  • 7.62 mm / 0.3 inches
• Width
  • 64 mm / 2.52 inches

Plug-In Connection

• Connector (connection type)
  • For conductor
• Contact type (pluggable connector)
  • Female connector/socket
• Locking lever
  • Can be retrofitted
• Locking of plug-in connection
  • Locking lever
• Mismating protection
  • Yes
• Note on mismating protection
  • All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Strain relief
  • Strain relief housing

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 400 V
• Rated current
  • 35 A
• Rated impulse voltage (III/3)
  • 6 kV
• Ratings per
  • IEC/EN 60664-1

Specifications

• Product Group Code
  • 0003
