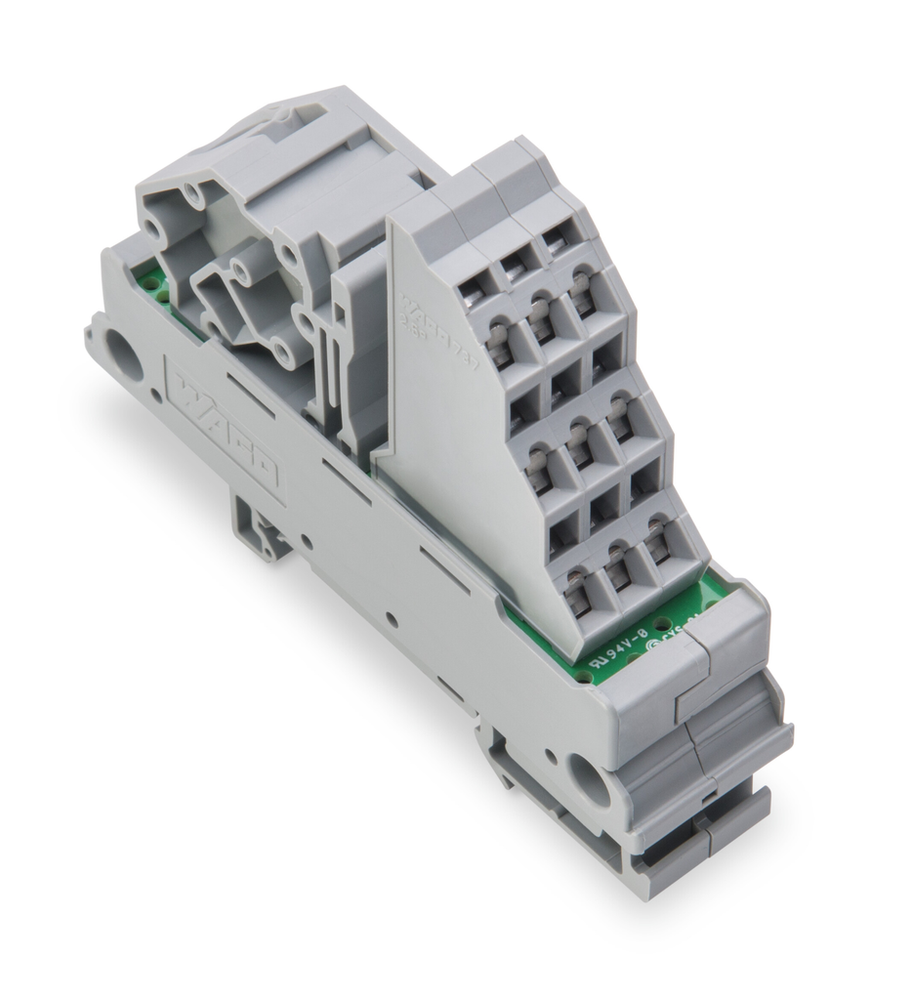

WAGO 830-800/000-303
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Potential distribution module; 1 potential; with 1 input clamping point; Conductor cross-section up to 16 mm²; with 9 output clamping points; Conductor cross-section up to 2.5 mm²
WAGO 830-800/000-303 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- US
- Customs tariff number
- 85369010000
- GTIN
- 4055143379304
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Connection technology 2
- CAGE CLAMP®
- Connection type 1
- Input
- Connection type 2
- Output
- Fine-stranded conductor
- 0.2 … 16 mm² / 24 … 6 AWG
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Mating direction
- 45°
- Mating direction 2
- Vertical
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Solid conductor
- 0.2 … 16 mm² / 24 … 6 AWG
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 11 … 12 mm / 0.43 … 0.47 inches
- Strip length 2
- 5 … 6 mm / 0.2 … 0.24 inches
- Total number of potentials
- 1
- WAGO connector
- WAGO 745 Series
- WAGO connector 2
- WAGO 737 Series
Electrical Data
- Current per connection (max.)
- 10 A
- Operating voltage
- ≤ AC/DC 250 V
- Total current per potential (max.)
- 65 A
Environmental Requirements
- Ambient temperature (operation)
- -20 … +50 °C
- Relative humidity
- ≤ 95% (without condensation)
Material Data
- Fire load
- 1.187 MJ
- Weight
- 63.000 g
Mechanical Data
- Housing design
- Mounting carrier
- Mounting type
- DIN-35 rail
Physical Data
- Depth
- 85 mm / 3.35 inches
- Height from upper-edge of DIN-rail
- 62 mm / 2.44 inches
- Width
- 21 mm / 0.81 inches
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- CULus 61010-2-201
