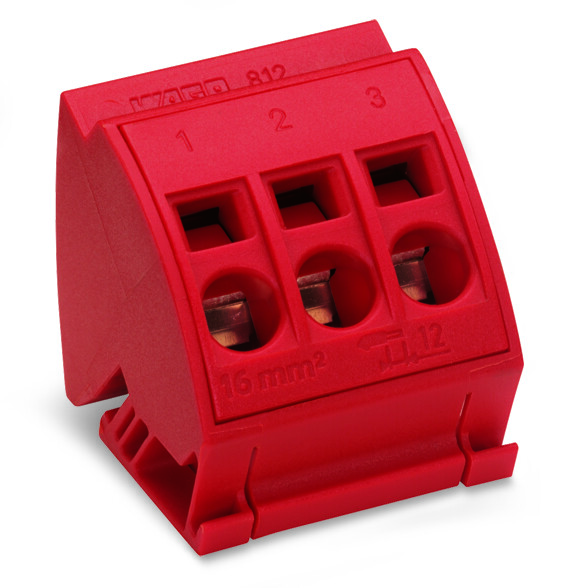

WAGO 812-113

Commercial Data

• Country of origin
  • PL
• Customs tariff number
  • 85369010000
• GTIN
  • 4045454014919
• Packaging type
  • Box

Connection 1

• Actuation type
  • Operating tool
• Connectable conductor materials
  • Copper
• Connection technology
  • CAGE CLAMP®
• Fine-stranded conductor
  • 1.5 … 16 mm² / 14 … 6 AWG
• Solid conductor
  • 1.5 … 16 mm² / 14 … 6 AWG
• Strip length
  • 12 mm / 0.47 inches
• Wiring direction
  • Front-entry wiring

Environmental Requirements

• Continuous operating temperature
  • -35 … +85 °C

Material Data

• Color
  • Red
• Fire load
  • 0.851 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 42.010 g

Physical Data

• Depth
  • 43.5 mm / 1.713 inches
• Height
  • 42.5 mm / 1.673 inches
• Width
  • 38 mm / 1.496 inches

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 1000 V
• Note (rated current)
  • Current carrying capacity: With a maximum total current of 96 A, the clamping units of the busbar terminal block can be loaded with the rated current of the conductor cross-sections approved. This only applies when (10 x 3) mm busbars are used.
• Rated current
  • 96 A
• Rated impulse voltage (III/3)
  • 6 kV

Specifications

• Product Group Code
  • 0012
