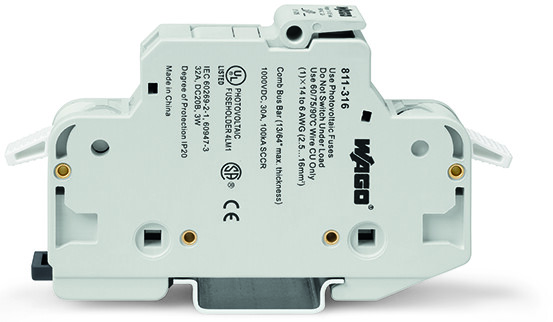

WAGO 811-331

Commercial Data

• Customs tariff number
  • 85369095000
• GTIN
  • 4050821508113
• Packaging type
  • Box

Connection 1

• Actuation type
  • Operating tool
• Connectable conductor materials
  • Copper
• Connection technology
  • CAGE CLAMP®
• Fine-stranded conductor
  • 2.5 … 16 mm² / 16 … 6 AWG
• Pole number
  • 3
• Solid conductor
  • 2.5 … 16 mm² / 14 … 6 AWG
• Strip length
  • 12 … 13 mm / 0.47 … 0.51 inches
• Wiring direction
  • Side-entry wiring

Environmental Requirements

• Continuous operating temperature
  • -35 … +85 °C
• Processing temperature
  • -35 … +85 °C

General

• Fuse receptacle
  • Pluggable
• Fuse type
  • Cylindrical fuse; 10 x 38 mm
• Voltage type 1
  • AC
• Voltage type 2
  • DC

Material Data

• Color
  • Light gray
• Fire load
  • 0.000 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 1.111 g

Mechanical Data

• Mounting (note)
  • The fixed foot of the fuse terminal block must face upwards so that the fuse cannot fall out.
• Mounting type
  • DIN-35 rail

Notes

• Safety information
  • The fuse holder must not be opened under load.

Physical Data

• Depth from upper-edge of DIN-rail
  • 55 mm / 2.165 inches
• Height
  • 105 mm / 4.134 inches
• Width
  • 52.5 mm / 2.067 inches

Power Loss

• Power loss Pl max. overload and short-circuit protection (group arrangement)
  • 3 W
• Power loss Pl max. overload and short-circuit protection (individual arrangement)
  • 3 W
• Power loss Pl max. short-circuit protection (group arrangement)
  • 3 W
• Power loss Pl max. short-circuit protection (individual arrangement)
  • 3 W

Ratings Per Csa

• Approvals per
  • CSA 22.2
• Rated current (CSA)
  • 30 A
• Rated voltage (CSA)
  • 600 V || 1000 V

Ratings Per Iec/En

• Nominal voltage (III/3)
  • 690 V
• Rated current
  • 32 A
• Ratings (note)
  • Electrical ratings are specified in the technical data of both fuse terminal block and fuse. When selecting glass cartridge fuses, make sure that the listed power loss is not exceeded.
• Ratings per
  • IEC/HD 60269-2

Ratings Per Iec/En 2

• Rated voltage (III/3) 2
  • 1000 V

Ratings Per Ul 1059

• Approvals per
  • UL 4248-1
• Rated current (UL)
  • 30 A
• Rated voltage (UL)
  • 750 V || 1000 V

Specifications

• Product Group Code
  • 0001
