Description
2-conductor female connector; 1.5 mm²; Pin spacing 5 mm; 10-pole; 1,50 mm²; gray

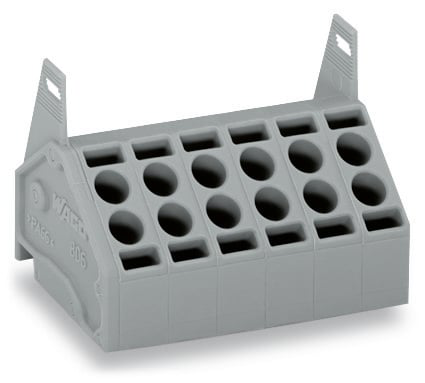

WAGO 806-210 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- PL
- Customs tariff number
- 85366990990
- GTIN
- 4045454077181
- Packaging type
- Box
Connection 1
- Actuation type
- Operating tool
- Conductor connection direction to PCB
- 45 °
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.2 … 1.5 mm² / 24 … 16 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.25 … 1 mm²
- Fine-stranded conductor; with uninsulated ferrule
- 0.25 … 1 mm²
- Pole number
- 10
- Solid conductor
- 0.2 … 1.5 mm² / 24 … 16 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Environmental Requirements
- Limit temperature range
- -60 … +105 °C
Material Data
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Color
- Gray
- Contact material
- Copper alloy
- Contact plating
- Tin
- Fire load
- 0.252 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 12.674 g
Notes
- Variants:
- Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.
Physical Data
- Depth
- 19.8 mm / 0.78 inches
- Height
- 23.3 mm / 0.917 inches
- Pin spacing
- 5 mm / 0.197 inches
- Solder pin diameter
- 1 mm
- Width
- 51.5 mm / 2.028 inches
Plug-In Connection
- Connector (connection type)
- For PCB
- Contact type (pluggable connector)
- Female connector/socket
- Mating direction to the PCB
- 90 °
Ratings Per Csa
- Approvals per
- CSA
- Rated current CSA (Use Group B)
- 10 A
- Rated voltage CSA (Use Group B)
- 300 V
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 630 V
- Nominal voltage (III/3)
- 250 V
- Rated current
- 10 A
- Rated impulse voltage (III/2)
- 4 kV
- Rated impulse voltage (III/3)
- 4 kV
- Rated surge voltage (II/2)
- 4 kV
- Rated voltage (III/2)
- 320 V
- Ratings per
- IEC/EN 60664-1
Ratings Per Ul 1059
- Approvals per
- UL 1059
- Rated current UL (Use Group B)
- 10 A
- Rated current UL (Use Group D)
- 10 A
- Rated voltage UL (Use Group B)
- 300 V
- Rated voltage UL (Use Group D)
- 300 V
Specifications
- Product Group Code
- 0004
