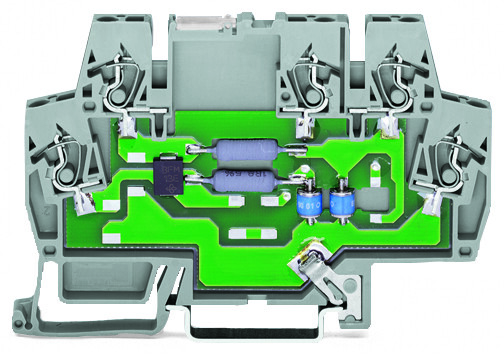

WAGO 792-801

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85363010900
• GTIN
  • 4017332780742
• Packaging type
  • Box

Connection Data

• Connections (number)
  • 5
• Connection technology
  • CAGE CLAMP®
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length
  • 5 … 6 mm / 0.2 … 0.24 inches

Electrical Data

• Capacitance (line/line)
  • ≤ 10 nF
• Capacitance (line/protected ground)
  • ≤ 5 pF
• Highest continuous voltage
  • AC 23 V / DC 33 V
• Impedance
  • 1.8 Ω
• Limit frequency (line/line)
  • 6 MHz
• Limit frequency (line/protected ground)
  • 6 MHz
• Nominal current
  • 0.5 A
• Nominal discharge current (8/20 µs) (line)
  • 5 kA
• Nominal discharge current (8/20 µs) (total)
  • 10 kA
• Nominal operating voltage
  • DC 24 V
• Protection level (line/line) (cat. C2 at IN)
  • ≤ 50 V
• Protection level (line/line) (cat. C3 at IN)
  • ≤ 45 V
• Protection level (line/protected ground) (cat. C2 at IN)
  • ≤ 750 V
• Protection level (line/protected ground) (cat. C3 at IN)
  • ≤ 650 V
• Response time (line/protected ground)
  • ≤ 100 ns

Environmental Requirements

• Ambient temperature (operation)
  • -40 … +80 °C
• Ambient temperature (storage)
  • -40 … +80 °C

Material Data

• Fire load
  • 0.000 MJ
• Weight
  • 38.700 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Notes

• Note
  • The coordination characteristics of the surge arrester provide information about its discharge capacity and protection capability.

Physical Data

• Depth
  • 91 mm / 3.583 inches
• Height from upper-edge of DIN-rail
  • 56 mm / 2.205 inches
• Width
  • 6 mm / 0.236 inches

Safety And Protection

• Protection type
  • IP00; IP20 with end and intermediate plate

Specifications

• Product Group Code
  • 0021

Standards And Specifications

• Standards/specifications
  • IEC 61643-21
