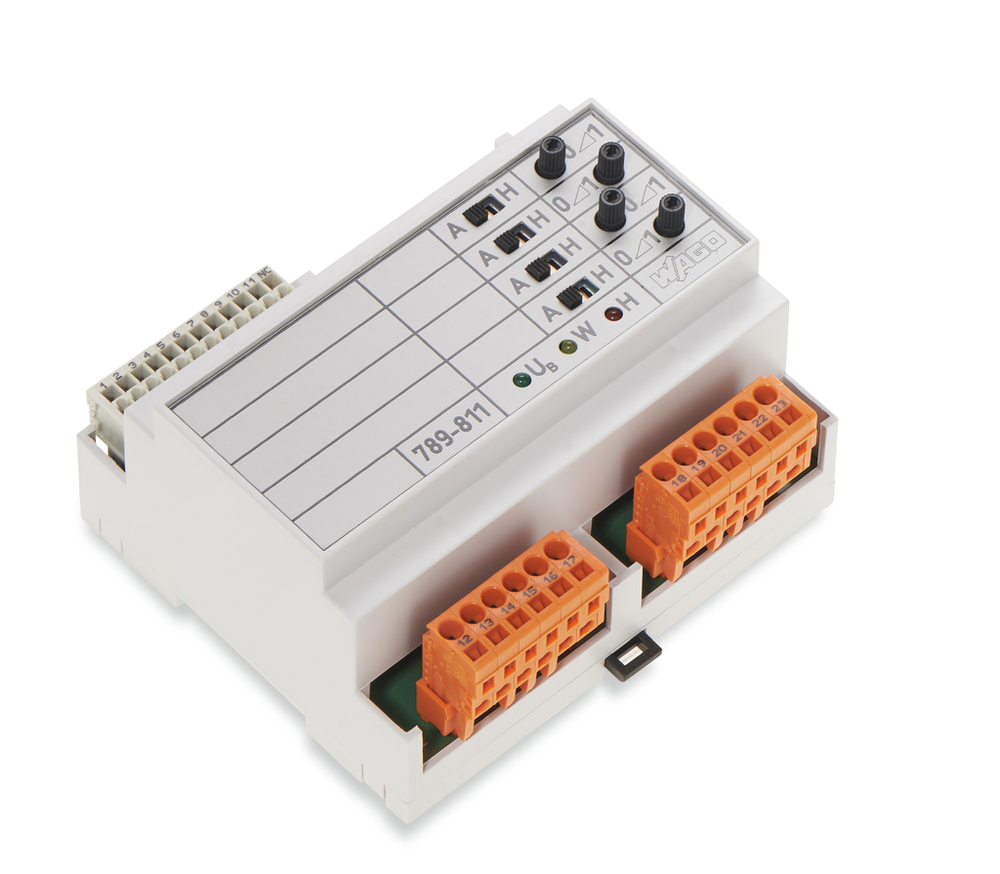

WAGO 789-811
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Manual operation module; 4 analog outputs; 1,50 mm²
WAGO 789-811 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389091890
- GTIN
- 4050821233800
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Connection technology 2
- CAGE CLAMP®
- Connection type 1
- Input
- Connection type 2
- Output
- Fine-stranded conductor
- 0.08 … 1.5 mm² / 28 … 14 AWG
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Solid conductor
- 0.08 … 1.5 mm² / 28 … 14 AWG
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 7 mm / 0.28 inches
- Strip length 2
- 8 … 9 mm / 0.31 … 0.35 inches
- WAGO connector
- WAGO 734 Series
- WAGO connector 2
- WAGO 231 Series
Electrical Data
- Inputs
- No. 1 / 10: 24 V; Power supply || No. 2: GND || No. 3 / 4 / 5 / 6: AI-0 … 3; Input 0 … 3; 0 … 10 V / 20 mA (max.) || No.11: WD-IN; Watchdog input; 24 V / 20 mA (max.)
- Nominal operating voltage
- DC 24 V
- Operating voltage range
- ±20 %
- Outputs
- No. 7: H-C; Manual operation; “closed” || No. 8: H-CM; Manual operation; “common” || No. 9: H-O; Manual operation; “open” || No. 12 / 15 / 18 / 21: DO-0 … 3-NC; Channel 0 … 3; Break contact; 250 VAC / 30 VDC; 8 A || No. 13 / 16 / 19 / 22: DO-0 … 3-CM; Channel 0 … 3; Common || No. 14 / 17 / 20 / 23: DO-0 … 3-NO; Channel 0 … 3; Make contact; 250 VAC / 30 VDC; 8 A
Environmental Requirements
- Ambient temperature (operation)
- 0 … +50 °C
- Ambient temperature (storage)
- -25 … +70 °C
Material Data
- Fire load
- 0.456 MJ
- Weight
- 199.500 g
Mechanical Data
- Housing design
- DIN-rail-mount enclosure
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 58 mm / 2.283 inches
- Height
- 90 mm / 3.543 inches
- Width
- 106 mm / 4.173 inches
Specifications
- Product Group Code
- 0006
