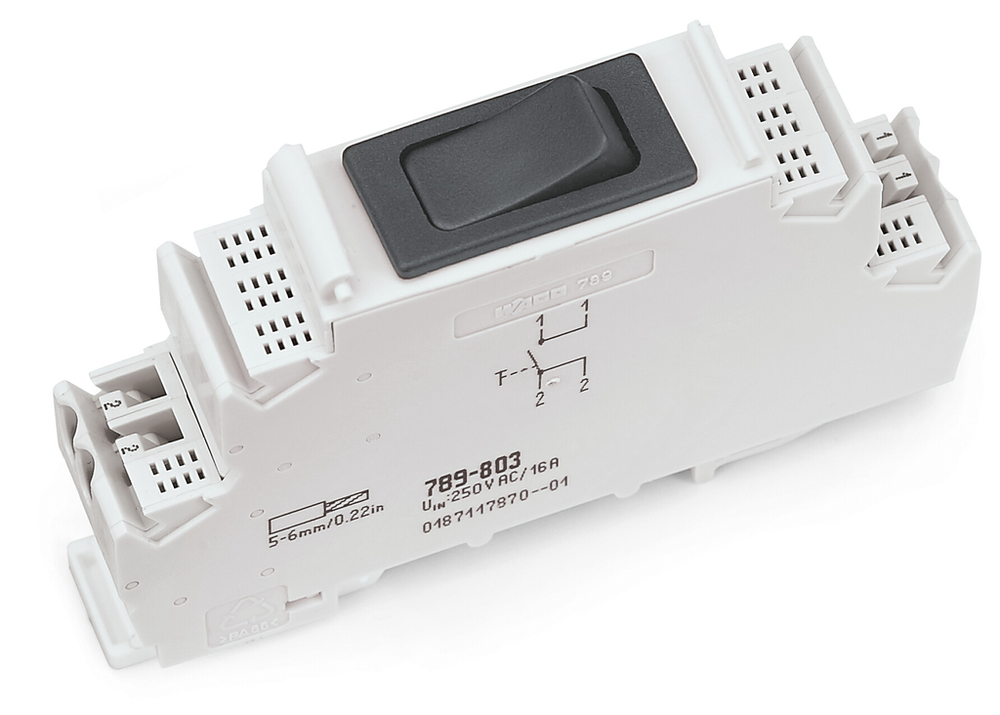

WAGO 789-803
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switching module; with off button; Switching voltage: 250 VAC; Switching current: 16 A
WAGO 789-803 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85365080900
- GTIN
- 4050821274827
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.2 … 2.5 mm² / 24 … 14 AWG
- Solid conductor
- 02 … 2.5 mm² / 24 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Electrical Data
- Contact gap
- ≥ 3 mm
- Contact resistance
- ≤ 100 mΩ (12 V/1 ADC; new condition)
- Electrical life (NO; resistive load; 23 °C)
- 10 x 10³ switching operations
- Inrush current (max.)
- 100 A (capacitive)
- Insulation resistance
- ≥ 100 MΩ (500 VDC; new condition)
- Mechanical life
- 50 x 10³ switching operations
- Operating voltage
- ≤250 VAC
- Switching current (resistive) max.
- 16 A
- Switching voltage (max.)
- AC 250 V
Environmental Requirements
- Ambient temperature (operation)
- -20 … +55 °C
- Ambient temperature (storage)
- -40 … +80 °C
Material Data
- Contact material (switch)
- Ag alloy
- Fire load
- 3.494 MJ
- Weight
- 42.365 g
Mechanical Data
- Housing design
- DIN-rail-mount enclosure
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 55 mm / 2.165 inches
- Height
- 90 mm / 3.543 inches
- Width
- 17.5 mm / 0.689 inches
Safety And Protection
- Dielectric strength (open contact) (AC, 1 min)
- 1.25 kVrms
- Pollution degree
- 2
- Rated surge voltage
- 4 kV
- Rated voltage
- 250 V
Specifications
- Product Group Code
- 0006
