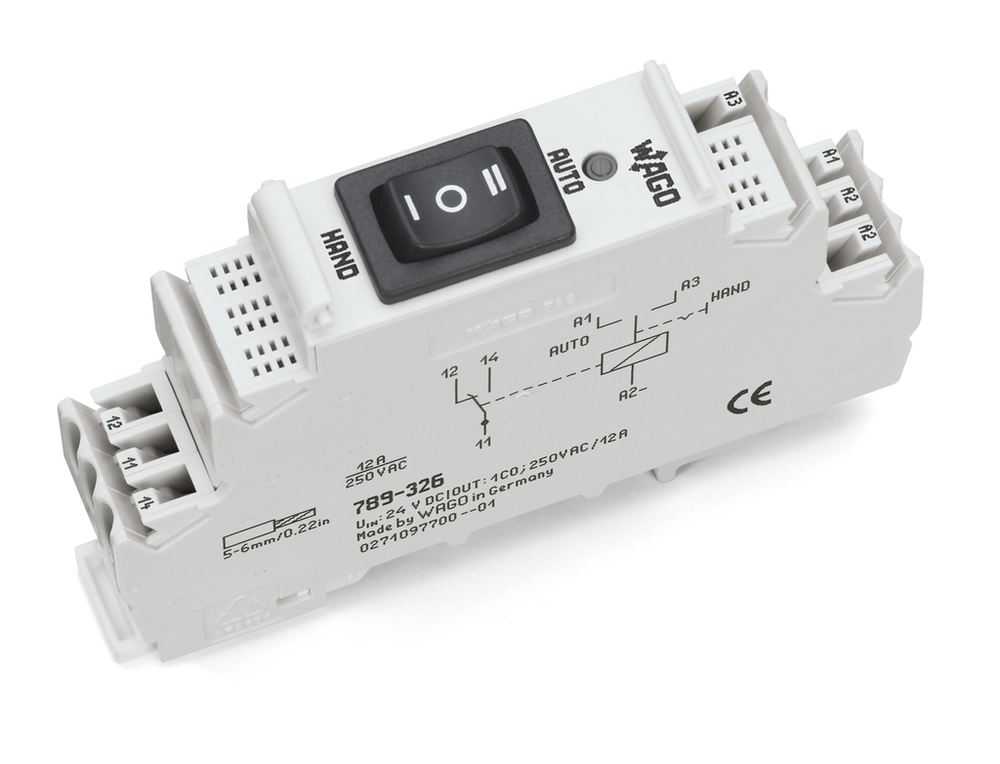

WAGO 789-326
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 12 A; for lamp loads; Manual/0FF/Auto switch; Red status indicator; Module width: 18 mm
WAGO 789-326 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85364900990
- GTIN
- 4045454594831
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.2 … 2.5 mm² / 24 … 14 AWG
- Solid conductor
- 0.2 … 2.5 mm² / 24 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Control Circuit
- Input voltage range
- -15 … +20 %
- Nominal input current at UN
- 19 mA
- Nominal input voltage UN
- DC 24 V
Environmental Requirements
- Ambient temperature (operation at UN)
- -20 … +40 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Operating altitude (max.)
- 2000 m
- Processing temperature
- -25 … +50 °C
- Relative humidity
- ≤ 75% (no condensation permissible)
- Temperature range of connection cable
- ≥ (Tambient + 30 K)
Load Circuit
- Contact material (relay)
- AgSnO2
- Drop-out time (typ.)
- 5 ms
- Electrical life (NO; resistive load; 23 °C)
- 100 x 10³ switching operations
- Inrush current (resistive) max.
- (AC) 120 A / 0.05 s
- Limiting continuous current
- 12 A
- Mechanical life
- 10 x 10⁶ switching operations
- Number of changeover/switchover contacts
- 1
- Pull-in time (typ.)
- 15 ms
- Recommended minimum load
- 12 V / 10 mA
- Switching power (resistive) max.
- AC 3000 VA
- Switching voltage (max.)
- AC 250 V
Material Data
- Fire load
- 6.109 MJ
- Weight
- 55.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Notes
- Note
- To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
Physical Data
- Depth from upper-edge of DIN-rail
- 55 mm / 2.165 inches
- Height
- 90 mm / 3.543 inches
- Width
- 17.5 mm / 0.689 inches
Safety And Protection
- Dielectric strength (control/load circuit) (AC, 1 min)
- 4 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Insulation type (adjacent devices)
- Reinforced insulation (safe isolation)
- Insulation type (control/load circuit)
- Reinforced insulation (safe isolation)
- Insulation type (open contact)
- Functional insulation
- Overvoltage category
- III
- Pollution degree
- 2
- Protection type
- IP20
- Rated voltage
- 300 V
Signaling
- Status indicator
- Red LED
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- EN 61010-2-201
