WAGO 788-936

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85364900990
• GTIN
  • 4055143693387
• Packaging type
  • Box

Control Circuit

• Nominal input voltage UN
  • DC 24 V

Environmental Requirements

• Ambient temperature (operation at UN)
  • -40 … +70 °C
• Ambient temperature (storage)
  • -40 … +85 °C

Load Circuit

• Bounce time (typ.)
  • 7 ms
• Contact material (relay)
  • AgNi
• Drop-out time (typ.)
  • 8 ms
• Electrical life (NO; resistive load; 23 °C)
  • 10 x 10³ switching operations
• Inrush current (resistive) max.
  • (AC) 12 A
• Limiting continuous current
  • 8 A
• Mechanical life
  • 5 x 10⁶ switching operations

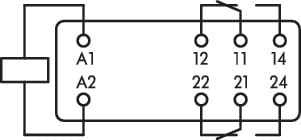

• Number of changeover/switchover contacts
  • 2
• Pull-in time (typ.)
  • 15 ms
• Recommended minimum load
  • 12 V / 10 mA
• Switching capacity
  • AC-15: 1.5 A / AC 240 V; DC-13: 1 A / DC 24 V
• Switching frequency with/without load (max.)
  • 6 min-1 / 300 min-1
• Switching power (resistive) max.
  • AC 2000 VA; DC (see load limit curve)
• Switching voltage (max.)
  • AC 250 V

Material Data

• Fire load
  • 0.000 MJ
• Weight
  • 15.300 g

Mechanical Data

• Mounting type
  • Pluggable module

Physical Data

• Depth
  • 29 mm / 1.142 inches
• Width
  • 12.7 mm / 0.5 inches

Safety And Protection

• Dielectric strength (control/load circuit) (AC, 1 min)
  • 5 kVrms
• Dielectric strength (load/load circuit) (AC, 1 min)
  • 2.5 kVrms
• Dielectric strength (open contact) (AC, 1 min)
  • 1 kVrms

Signaling

• Status indicator
  • Mechanical

Specifications

• Product Group Code
  • 0006

Standards And Specifications

• Standards/specifications
  • EN 61810-1
