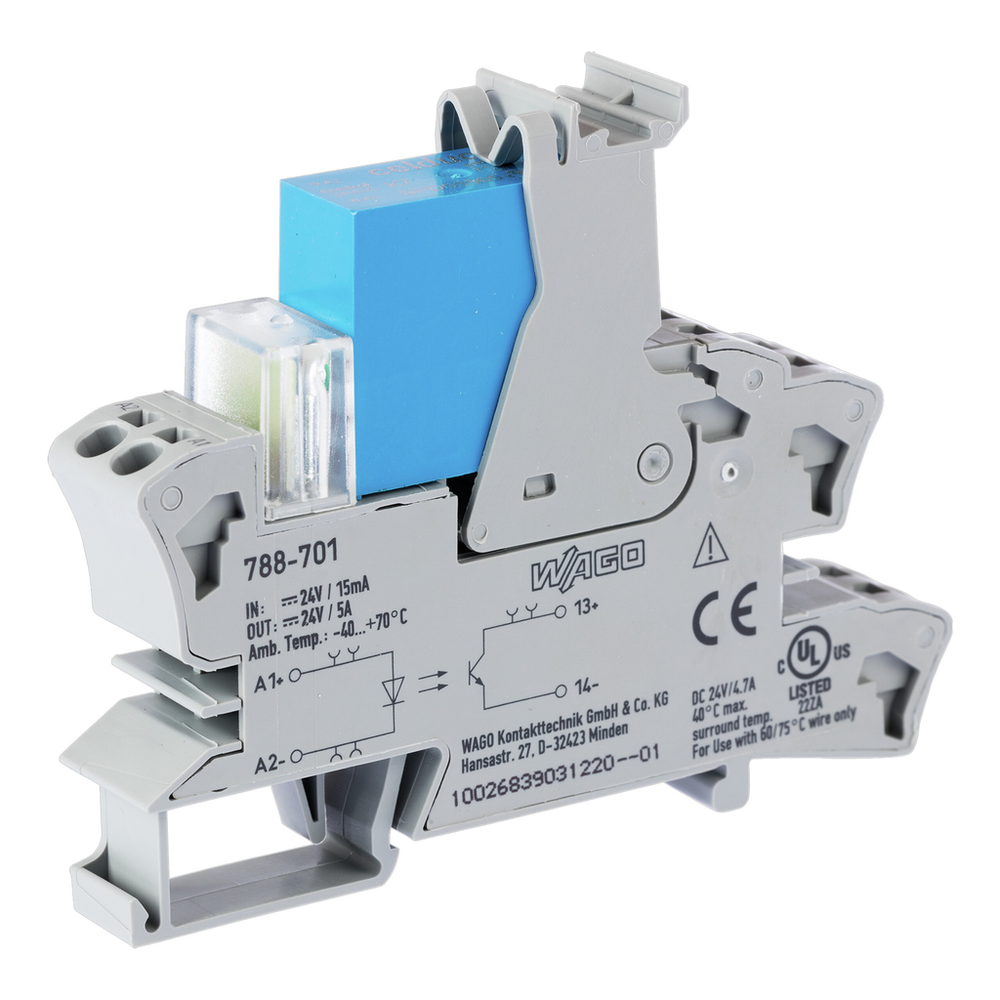

WAGO 788-701

Basic Relay

• WAGO Basic Relay
  • 788-751

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85365005000
• GTIN
  • 4045454743871
• Packaging type
  • Box

Connection Data

• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.34 … 2.5 mm² / 22 … 14 AWG
• Solid conductor
  • 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length
  • 9 … 10 mm / 0.35 … 0.39 inches

Control Circuit

• Input voltage range (high level)
  • DC 15 … 30 V
• Input voltage range (low level)
  • DC 0 … 2.5 V
• Nominal input current at UN
  • 10 mA
• Nominal input voltage UN
  • DC 24 V

Environmental Requirements

• Ambient temperature (operation at UN)
  • -40 … +70 °C
• Ambient temperature (storage)
  • -40 … +70 °C
• Ambient temperature UL (operation at UN)
  • -40 … +40 °C
• Processing temperature
  • -25 … +50 °C
• Temperature range of connection cable
  • ≥ (Tambient + 20 K)

Load Circuit

• Circuit type
  • 2-wire connection
• Limiting continuous current
  • 5 A
• Nominal output voltage
  • DC 24 V
• Output voltage range
  • DC 0 … 30 V
• Switching frequency
  • ≤ 100 Hz
• Turn-off time
  • ≤ 600 µs
• Turn-on time
  • ≤ 50 µs
• Voltage drop
  • ≤ 0.3 VDC

Material Data

• Color
  • Gray
• Fire load
  • 0.689 MJ
• Weight
  • 47.000 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Notes

• Note
  • Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

Physical Data

• Depth
  • 86 mm / 3.386 inches
• Height from upper-edge of DIN-rail
  • 64 mm / 2.52 inches
• Width
  • 15 mm / 0.591 inches

Safety And Protection

• Dielectric strength (control/load circuit) (AC, 1 min)
  • 2.5 kVrms
• Pollution degree
  • 2
• Protection type
  • IP20

Signaling

• Status indicator
  • Red LED

Specifications

• Product Group Code
  • 0006

Standards And Specifications

• Standards/specifications
  • EN 61000-6-2 || EN 61000-6-3 || EN 61373 || EN 61010-2-201 || UL 508 (max. 40 °C/4.7 A)
