WAGO 788-312

Basic Relay

• WAGO Basic Relay
  • 788-156

Commercial Data

• Country of origin
  • CN
• Customs tariff number
  • 85364900990
• GTIN
  • 4055143184137
• Packaging type
  • Box

Connection Data

• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.34 … 2.5 mm² / 22 … 14 AWG
• Solid conductor
  • 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length
  • 9 … 10 mm / 0.35 … 0.39 inches

Control Circuit

• Input voltage range
  • ±10 %
• Nominal input current at UN
  • 19 mA
• Nominal input voltage UN
  • DC 24 V

Environmental Requirements

• Ambient temperature (operation at UN)
  • -40 … +70 °C
• Ambient temperature (storage)
  • -40 … +70 °C
• Ambient temperature UL (operation at UN)
  • -40 … +50 °C
• Processing temperature
  • -25 … +50 °C
• Temperature range of connection cable
  • ≥ (Tambient + 20 K)

Load Circuit

• Bounce time (typ.)
  • 10 ms
• Contact material (relay)
  • AgNi 90/10
• Drop-out time (typ.)
  • 13 ms
• Electrical life (NO; resistive load; 23 °C)
  • 10 x 10³ switching operations
• Inrush current (resistive) max.
  • (AC) 15 A / 4 s
• Limiting continuous current
  • 8 A
• Mechanical life
  • 30 x 10⁶ switching operations
• Number of changeover/switchover contacts
  • 2
• Pull-in time (typ.)
  • 8 ms
• Recommended minimum load
  • 12 V / 10 mA
• Switching capacity
  • AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
• Switching frequency with/without load (max.)
  • 6 min-1 / 1200 min-1
• Switching power (resistive) max.
  • AC 2000 VA; DC (see load limit curve)
• Switching voltage (max.)
  • AC 250 V

Material Data

• Color
  • Gray
• Fire load
  • 1.357 MJ
• Weight
  • 45.540 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Notes

• Note
  • Reinforced insulation between coil and contactsTo protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
• Safety information
  • A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.

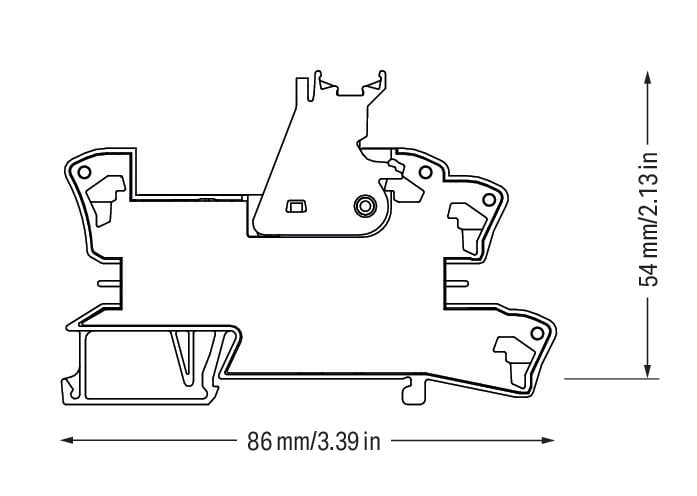

Physical Data

• Depth from upper-edge of DIN-rail
  • 54 mm / 2.126 inches
• Height
  • 86 mm / 3.386 inches
• Width
  • 15 mm / 0.591 inches

Safety And Protection

• Dielectric strength (control/load circuit) (AC, 1 min)
  • 5 kVrms
• Dielectric strength (load/load circuit) (AC, 1 min)
  • 2.5 kVrms
• Dielectric strength (open contact) (AC, 1 min)
  • 1 kVrms
• Pollution degree
  • 3
• Protection type
  • IP20
• Rated surge voltage
  • 4 kV
• Rated voltage
  • 250 V
• Safety information
  • A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.

Signaling

• Status indicator
  • Red LED

Specifications

• Product Group Code
  • 0006

Standards And Specifications

• Standards/specifications
  • EN 61010-2-201 || EN 61810-1 || EN 61373 || UL 508
