Description

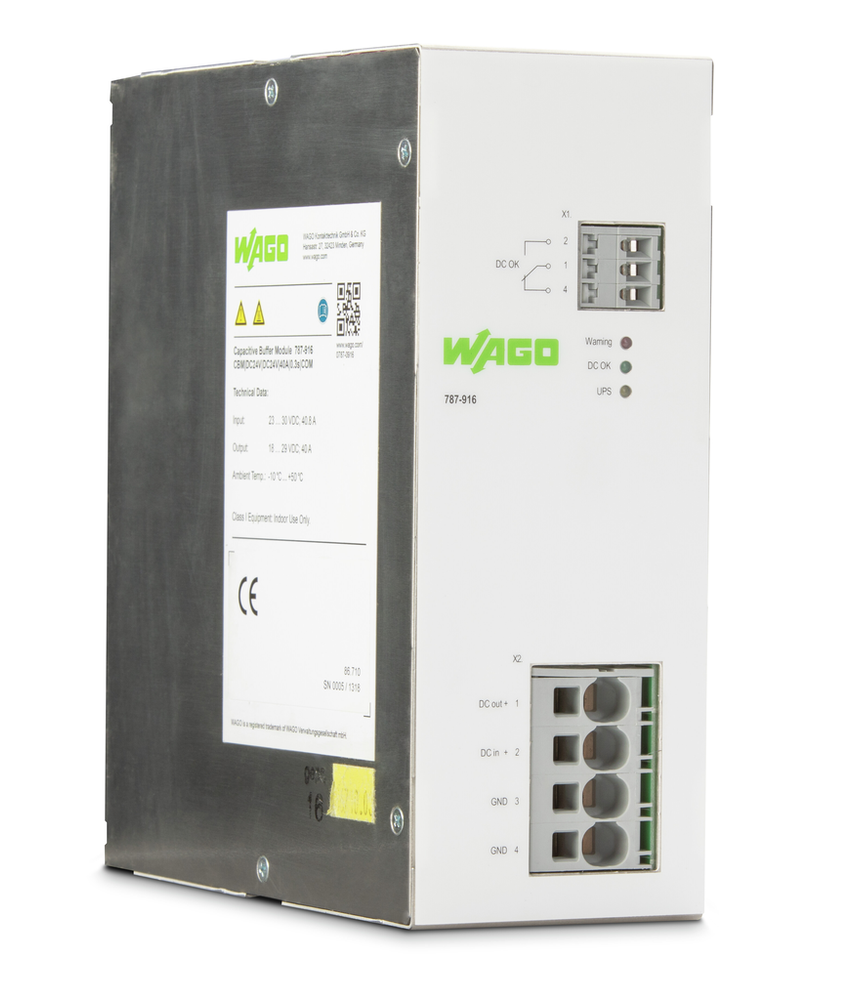

capacitive buffer module; 24 VDC input voltage; 24 VDC output voltage; 40 A output current; Buffer time: 0.3 … 6.6 s
WAGO 787-916 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Backup fusing (recommended)
- T 40 A
- Internal fuse
- No
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85044083900
- GTIN
- 4066966088281
- Packaging type
- Box
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Connection technology 2
- CAGE CLAMP®
- Connection type 1
- Input/output
- Connection type 2
- Signaling
- Fine-stranded conductor
- 0.75 … 25 mm² / 18 … 4 AWG
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.75 … 16 mm²
- Fine-stranded conductor; with insulated ferrule 2
- 0.25 … 1.5 mm²
- Fine-stranded conductor; with uninsulated ferrule
- 0.75 … 16 mm²
- Fine-stranded conductor; with uninsulated ferrule 2
- 0.25 … 1.5 mm²
- Solid conductor
- 0.75 … 16 mm² / 18 … 4 AWG
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 18 … 20 mm / 0.71 … 0.79 inches
- Strip length 2
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector
- WAGO 2636 Series
- WAGO connector 2
- WAGO 741 Series
Efficiency/Power Losses
- Efficiency (typ.)
- 96.5 %
- Power loss Pl
- ≤ 1.9 W (operation without decoupled output); ≤ 11.5 W (operation with uncoupled output; Io = 20 A); ≤ 33.5 W (operation with uncoupled output; Io = 40 A)
Energy Storage System
- Buffer time
- 0.3 … 6.6 s depends on load current and temperature
- Charging time (typ.)
- 2.5 min
- Effective energy content (typ.)
- 500 Ws
- Nominal capacity
- 4.17 F
- Nominal voltage
- 32.4 V
- Switch-on threshold (typ.)
- DC 22 V
Environmental Requirements
- Ambient temperature (operation)
- -10 … +50 °C
- Ambient temperature (storage)
- -10 … +60 °C
- Relative humidity
- 5 … 95 % (no condensation permissible)
Input
- Input current Ii
- ≤ 0.06 A (no load); ≤ 0.8 A (Charging); ≤ 40.8 A
- Input voltage range
- DC 23 … 30 V
- Nominal input voltage Ui nom
- DC 24 V
- Nominal mains frequency range
- 0 Hz
Material Data
- Fire load
- 0.000 MJ
- Weight
- 900.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Output
- Nominal output current Io nom
- 40 A
- Nominal output voltage Uo nom
- DC 24 V
- Output voltage range
- Ui – 0.5 VDC (mains operation; Io = 20 A); Ui - 0.8 VDC (mains operation; Io = 40 A); 20 … 29 VDC (buffer mode)
Physical Data
- Depth from upper-edge of DIN-rail
- 162 mm / 6.38 inches
- Height
- 181 mm / 7.126 inches
- Width
- 68 mm / 2.677 inches
Safety And Protection
- Isolation voltage (connectors – housing)
- DC 0.5 kV
- Parallel operation
- No
- Pollution degree
- 2
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Reverse voltage protection
- Yes
- Series operation
- No
- Service life
- 74,000 h (25 °C; Ia = 40 A); 28,200 h (40 °C; Ia = 40 A)
Signaling And Communication
- Operation status indicator
- Green LED (DC OK) || Yellow LED (buffer mode/charging) || Red LED (warning)
- Signaling
- 1 x LED DC OK (green) || 1 x UPS LED (yellow) || 1 x Warning LED (red) || 1 x Isolated relay contact (max. 30 VDC; 1 A)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 62368-1 || EN 61000-6-2 || EN 61000-6-3
- Standards/specifications (pending)
- CSA
