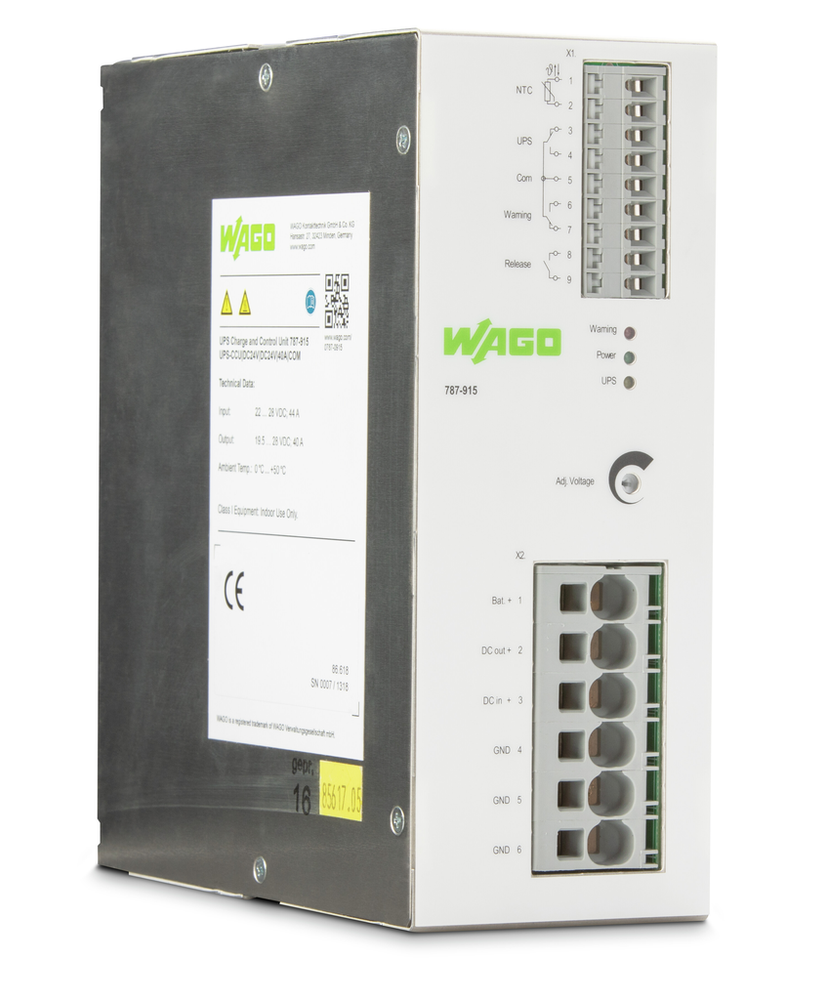

WAGO 787-915
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
UPS charger and controller; 24 VDC input voltage; 24 VDC output voltage; 40 A output current
WAGO 787-915 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Backup fusing (recommended)
- T 50 A
- Internal fuse
- T 6.3 A (charging circuit)
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85044083900
- GTIN
- 4066966088274
- Packaging type
- Box
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Connection technology 2
- CAGE CLAMP®
- Connection type 1
- Input/output
- Connection type 2
- Signaling
- Fine-stranded conductor
- 0.75 … 25 mm² / 18 … 4 AWG
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.75 … 16 mm²
- Fine-stranded conductor; with insulated ferrule 2
- 0.25 … 1.5 mm²
- Fine-stranded conductor; with uninsulated ferrule
- 0.75 … 16 mm²
- Fine-stranded conductor; with uninsulated ferrule 2
- 0.25 … 1.5 mm²
- Solid conductor
- 0.75 … 16 mm² / 18 … 4 AWG
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 18 … 20 mm / 0.71 … 0.79 inches
- Strip length 2
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector
- WAGO 2636 Series
- WAGO connector 2
- WAGO 741 Series
Efficiency/Power Losses
- Efficiency (typ.)
- 97 % (Rated operation); 85 % (Charging)
- Power loss Pl
- ≤ 4 W; ≤ 22.5 W (nominal load)
Energy Storage System
- Buffer time
- Load-dependent
- Charging current
- 1 … 4 A (adjustable in 1 A steps via DIP switch; Default setting: 2 A)
- End-of-charge voltage
- DC 26.4 … 29 V (temperature controlled with NTC; without temperature sensor: 27.2 VDC)
- Recommended battery module
- Typ: VRLA 24 V; 7 … 40 Ah
- Switch-on threshold (adjustable)
- DC 21.5 … 22.5 V
Environmental Requirements
- Ambient temperature (operation)
- 0 … +50 °C
- Ambient temperature (storage)
- -20 … +55 °C
- Relative humidity
- 5 … 95 % (no condensation permissible)
Input
- Input current Ii
- ≤ 0.16 A (no load); ≤ 4 A (Charging); ≤ 44 A
- Input voltage range
- DC 22 … 28 V
- Nominal input voltage Ui nom
- DC 24 V
- Nominal mains frequency range
- 0 Hz
Material Data
- Fire load
- 0.000 MJ
- Weight
- 1100.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Notes
- Safety information
- For North America: Use only batteries with appropriate safety approvals!
Output
- Nominal output current Io nom
- 40 A
- Nominal output voltage Uo nom
- DC 24 V
- Output voltage range
- Ui (rated operation); 19.5 … 26.5 VDC ( battery voltage in buffer mode)
Physical Data
- Depth from upper-edge of DIN-rail
- 162 mm / 6.38 inches
- Height
- 181 mm / 7.126 inches
- Width
- 68 mm / 2.677 inches
Safety And Protection
- Isolation voltage (connectors – housing)
- DC 0.5 kV
- MTBF
- 600,000 h (40 °C; per SN 29500)
- Parallel operation
- No
- Pollution degree
- 2
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Reverse voltage protection
- Yes
- Series operation
- No
Signaling And Communication
- Operation status indicator
- Green LED (operation) || Yellow LED (buffer mode/charging) || Red LED (warning)
- Remote input
- Switching buffer mode off
- Signaling
- 1 x Power LED (green) || 1 x UPS LED (yellow) || 1 x Warning LED (red) || 2 x Isolated relay contact (max. 30 VDC; 1 A)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 62368-1 || EN 61000-6-2 || EN 61000-6-3
- Standards/specifications (pending)
- CSA
