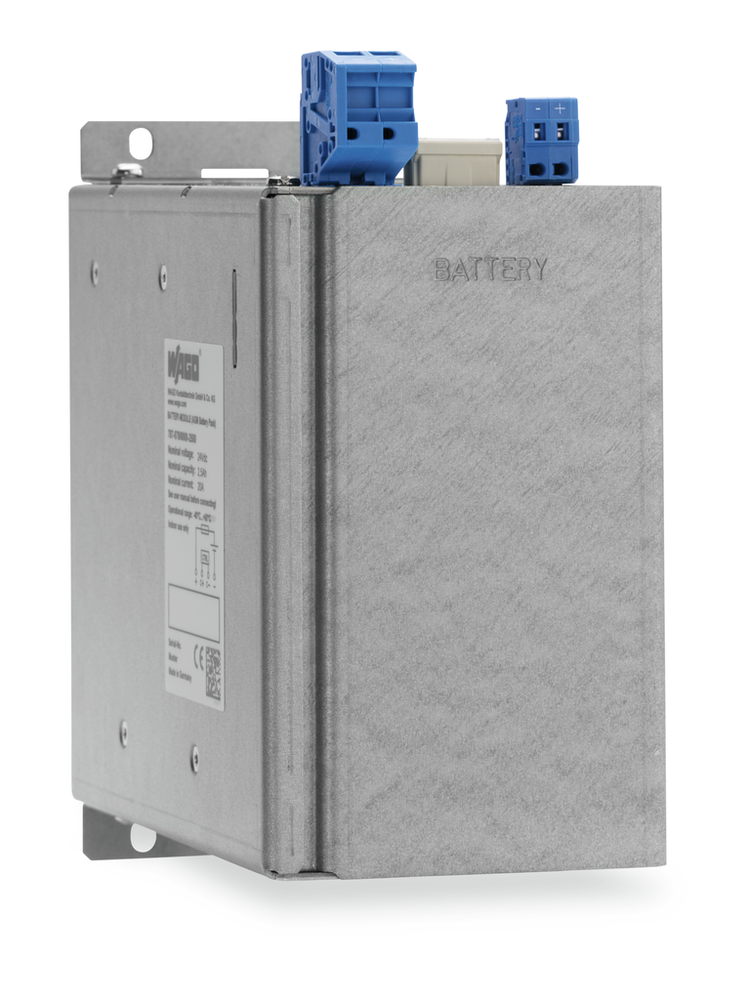

WAGO 787-878/000-2500
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Pure Lead Battery Module; 24 VDC input voltage; 20 A output current; Capacity: 2.5 Ah; with battery control
WAGO 787-878/000-2500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Internal fuse
- T 25 A
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85044083900
- GTIN
- 4055143738101
- Packaging type
- Box
Connection Data
- Cable length (max.)
- 3 m
- Connection technology
- CAGE CLAMP®
- Connection technology 2
- CAGE CLAMP®
- Connection type 1
- Input/output
- Connection type 2
- Battery control
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- Strip length 2
- 8 … 9 mm / 0.31 … 0.35 inches
- WAGO connector
- WAGO 831 Series
- WAGO connector 2
- WAGO 231 Series
Energy Storage System
- Battery capacity
- 2.5 Ah
- Charging current
- ≤ 5 A
- End-of-charge voltage
- DC 27 V (25 °C )
Environmental Requirements
- Ambient temperature (operation)
- -40 … +60 °C
- Ambient temperature (storage)
- -40 … +60 °C
- Commissioning
- 6 months at 30 … 40 °C
- Relative humidity
- 5 … 80 % (no condensation permissible)
- Self-discharge
- 3 % per month at 20 °C
Input
- Nominal input voltage Ui nom
- DC 24 V
Material Data
- Fire load
- 0.000 MJ
- Weight
- 3800.000 g
Mechanical Data
- Mounting type
- Direct screw connection || Optional DIN-rail mount (EN 60715)
Output
- Nominal output current Io nom
- 20 A
- Nominal output voltage Uo nom
- DC 24 V
Physical Data
- Depth
- 160 mm / 6.299 inches
- Height
- 186 mm / 7.323 inches
- Width
- 86 mm / 3.386 inches
Safety And Protection
- Overvoltage category
- I
- Parallel operation
- Yes
- Pollution degree
- 2
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Service life (typ.)
- 15 / 8 / 4 a (20 / 30 / 40 °C)
Signaling And Communication
- Signaling
- Battery control (C+; C-)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
