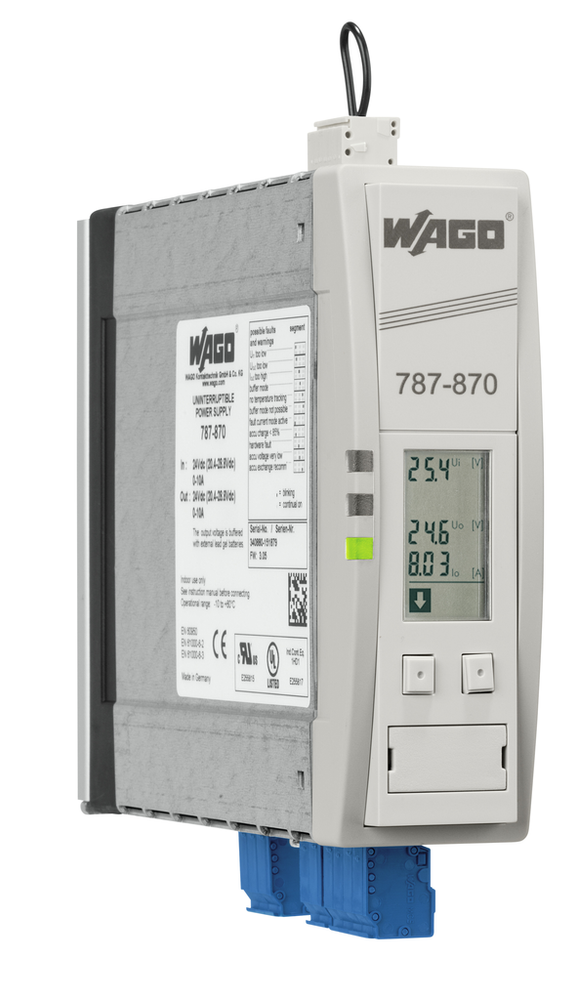

WAGO 787-870
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
UPS charger and controller; 24 VDC; 10 A
WAGO 787-870 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Internal fuse
- T 15 A
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85044060900
- GTIN
- 4045454909857
- Packaging type
- Box
Connection Data
- Cable length (max.)
- 3 m (Input, output, battery control)
- Connection technology
- CAGE CLAMP®
- Connection technology 2
- CAGE CLAMP®
- Connection type 1
- Input/output
- Connection type 2
- Signaling
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor 2
- 0.08 … 0.5 mm² / 28 … 20 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Solid conductor 2
- 0.08 … 0.5 mm² / 28 … 20 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- Strip length 2
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector
- WAGO 231 Series
- WAGO connector 2
- WAGO 733 Series
Efficiency/Power Losses
- Efficiency (typ.)
- 95 %
- Power loss Pl
- ≤ 15 W; ≤ 20 W (nominal load)
Energy Storage System
- Buffer time
- 10 s … 10 min or constant; adjustable
- Charging current
- ≤ 0.6 A
- End-of-charge voltage
- DC 26 … 29.5 V (temperature-controlled; optional fixed setting)
- Recommended battery module
- 787-871, 787-872, 787-873, 787-876, 787-1671
- Switch-on threshold (adjustable)
- DC 20 … 25.5 V
Environmental Requirements
- Ambient temperature (operation)
- -10 … +60 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Relative humidity
- 5 … 96 % (no condensation permissible)
Input
- Input current Ii
- ≤ 0.1 A (no load); ≤ 0.8 A (Charging); ≤ 10.8 A
- Input voltage range
- DC 22 … 29 V
- Inrush current
- ≤ 4 A (no load)
- Nominal input voltage Ui nom
- DC 24 V
- Nominal mains frequency range
- 0 Hz
Material Data
- Fire load
- 0.000 MJ
- Weight
- 800.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Output
- Current limitation
- 1.1 … 1.4 x Io nom (typ.)
- Nominal output current Io nom
- 10 A
- Nominal output voltage Uo nom
- DC 24 V
- Output voltage range
- Ui – 1 VDC (rated operation); 20 … 25.5 VDC (buffer mode)
Physical Data
- Depth from upper-edge of DIN-rail
- 163 mm / 6.417 inches
- Height
- 163 mm / 6.417 inches
- Note (dimensions)
- Height with connector
- Width
- 40 mm / 1.575 inches
Safety And Protection
- Isolation voltage (connectors – housing)
- DC 0.5 kV
- MTBF
- > 500,000 h (per IEC 61709)
- Parallel operation
- Yes, max. 3 battery modules for buffer time extension (temperature measurement evaluation is only possible via one battery module)
- Pollution degree
- 2
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ DC 35 V
- Reverse voltage protection
- Yes
- Series operation
- No
Signaling And Communication
- Communication
- RS-232 serial interface
- Operation status indicator
- Green LED (Uo) || Yellow LED (warning) || Red LED (error)
- Remote input
- Switching buffer mode off
- Signaling
- 1 x LED DC OK (green) || 1 x Warning LED (yellow) || 1 x Error LED (red) || LCD || 3 x Signal output (24 VDC; max. 25 mA) || 1 x Isolated relay contact (max. 30 VDC; 1 A) || 1 x RS-232 interface || Battery control (C+; C-)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61010-1 || EN 61010-2-201 || UL 60950 || UL 508 || EN 61000-6-2 || EN 61000-6-3
