WAGO 787-783
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

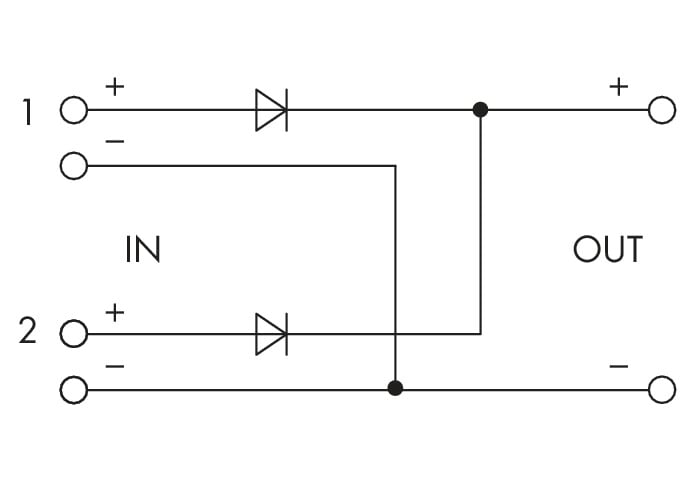

Diode redundancy module; output voltage 24 VDC; 12.5 A
WAGO 787-783 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85044095900
- GTIN
- 4055143036290
- Packaging type
- Box
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Connection type 1
- Input/output
- Fine-stranded conductor
- 0.5 … 6 mm² / 20 … 10 AWG
- Solid conductor
- 0.5 … 6 mm² / 20 … 10 AWG
- Strip length
- 11 … 12 mm / 0.43 … 0.47 inches
- WAGO connector
- WAGO 2706 Series
Efficiency/Power Losses
- Efficiency (typ.)
- 96 %
- Power loss Pl
- ≤ 19 W (nominal load)
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Derating
- -2.66 %/K (55 °C < Tu ≤ 70 °C)
- Relative humidity
- ≤ 95% (no condensation permissible)
- Resistance to shock and vibration
- Shock: 15g (per EN 60068-2-27)
Input
- Input current Ii
- ≤ 12.5 A (per path); ≤ 25 A (in total)
- Input voltage range
- 2 x DC 9 … 54 V
- Nominal input voltage Ui nom
- 2 x DC 24 V
- Nominal mains frequency range
- 0 Hz
Material Data
- Fire load
- 0.000 MJ
- Weight
- 470.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Output
- Nominal output current Io nom
- 12.5 A (redundancy operation); 25 A (parallel operation)
- Nominal output power
- 600 W
- Nominal output voltage Uo nom
- DC 24 V
- Output power (max.)
- ≤ 1350 W
- Output voltage range
- DC 9 … 54 V (Ue − voltage drop)
- Voltage drop
- ≤ 0.8 V (Input/output)
Physical Data
- Depth from upper-edge of DIN-rail
- 92 mm / 3.662 inches
- Height
- 130 mm / 5.118 inches
- Width
- 50 mm / 1.969 inches
Safety And Protection
- Isolation voltage (connectors – housing)
- DC 0.5 kV
- MTBF
- > 10 million h (per IEC 61709)
- Open-circuit-proof
- Yes
- Overvoltage protection; secondary
- No
- Parallel operation
- Yes
- Pollution degree
- 2
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ DC 60 V
- Series operation
- No
- Short-circuit-protected
- No
Signaling And Communication
- Operation status indicator
- 2 x Green LED (Ui > 7.5 VDC) || 1 x Green LED (Uo > 7.5 VDC)
- Signaling
- 1 x IN1 LED (green) || 1 x IN2 LED (green) || 1 x OUT LED (green)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- UL 508
