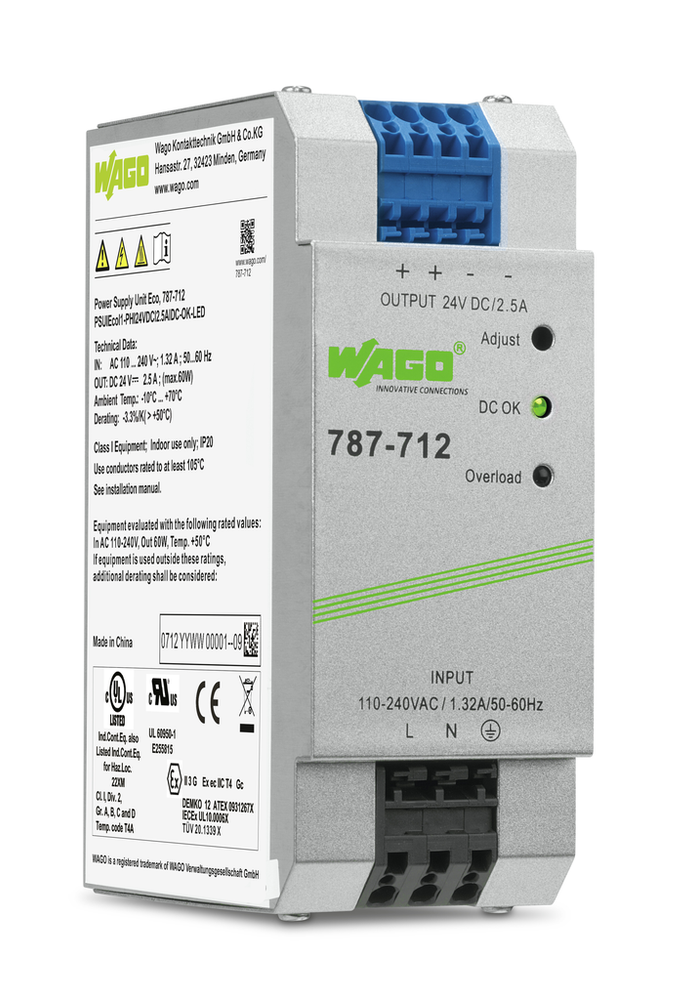

WAGO 787-712
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EPSITRON® ECO power supply; single-phase; output voltage 24 VDC; 2.5 A
WAGO 787-712 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Backup fusing (recommended)
- Circuit breaker: 10 A, 16 A; Tripping characteristic: B or C
- Backup fusing (required)
- An external DC fuse is required for the DC input voltage.
- Internal fuse
- F 2.5 A / 250 VAC
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85044083900
- GTIN
- 4045454908195
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Connection type 1
- Input/output
- Fine-stranded conductor
- 0.08 … 4 mm² / 28 … 12 AWG
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Solid conductor
- 0.08 … 4 mm² / 28 … 12 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- WAGO connector
- WAGO 745 Series
Efficiency/Power Losses
- Efficiency (typ.)
- 86 % (230 VAC)
- Power loss (max.) Pl (max.)
- 11.5 W (110 VAC / 24 VDC; 2.75 A)
- Power loss Pl
- ≤ 8.3 W (230 VAC; nominal load)
Environmental Requirements
- Ambient temperature (operation)
- -10 … +70 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Derating
- -3.3 %/K (> 50 °C; 230 VAC)
- Relative humidity
- ≤ 95% (no condensation permissible)
Input
- Discharge current
- ≤ 1 mA
- Input current Ii
- ≤ 0.7 A (230 VAC); ≤ 1.2 A (115 VAC)
- Input voltage range
- 1 x AC 90 … 264 V; DC 90 … 373 V
- Inrush current
- ≤ 30 A
- Mains failure hold-up time
- ≥ 20 ms (230 VAC)
- Nominal input voltage Ui nom
- 1 x AC 100 … 240 V
- Nominal mains frequency range
- 47 … 63 Hz; 0 Hz
- Phases
- 1
- Power factor
- ≥ 0.5 (230 VAC)
- Power factor correction (PFC)
- Passive
Material Data
- Fire load
- 4.400 MJ
- Weight
- 470.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Output
- Default setting
- DC 24 V
- Deviation
- ≤ 1 %
- Nominal output current Io nom
- 2.5 A (24 VDC)
- Nominal output power
- 60 W
- Nominal output voltage Uo nom
- DC 24 V (SELV)
- Output voltage range
- DC 22 … 28 V (adjustable)
- Overload behavior
- Constant power (in overload range: 1.15 … 1.4 x Io nom); Shutdown and automatic restart in the event of a short circuit
- Residual ripple
- ≤ 100 mV (peak-to-peak)
Physical Data
- Depth from upper-edge of DIN-rail
- 136 mm / 5.354 inches
- Height
- 92 mm / 3.622 inches
- Width
- 50 mm / 1.969 inches
Safety And Protection
- Isolation voltage (pri.-PE)
- DC 2.2 kV
- Isolation voltage (pri.-sec.)
- DC 4.242 kV
- Isolation voltage (sec.-PE)
- DC 0.7 kV
- MTBF
- 480,000 h (per IEC 61709)
- Open-circuit-proof
- Yes
- Overvoltage category
- II
- Parallel operation
- Yes
- Pollution degree
- 2
- Protection class
- I
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ DC 28 V
- Series operation
- Yes
- Short-circuit-protected
- Yes
- Transient suppression (primary)
- Varistor
Signaling And Communication
- Operation status indicator
- Green LED (24 VDC OK) || Red LED (overload)
- Signaling
- 1 x LED DC OK (green) || 1 x Overload LED (red)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 62368-1 || EN 61204-3 || CURus 60950-1 || CULus 508 || ANSI/ISA 12.12.01 (Class I Div. 2) || ATEX || IEC Ex || SEMI F47
