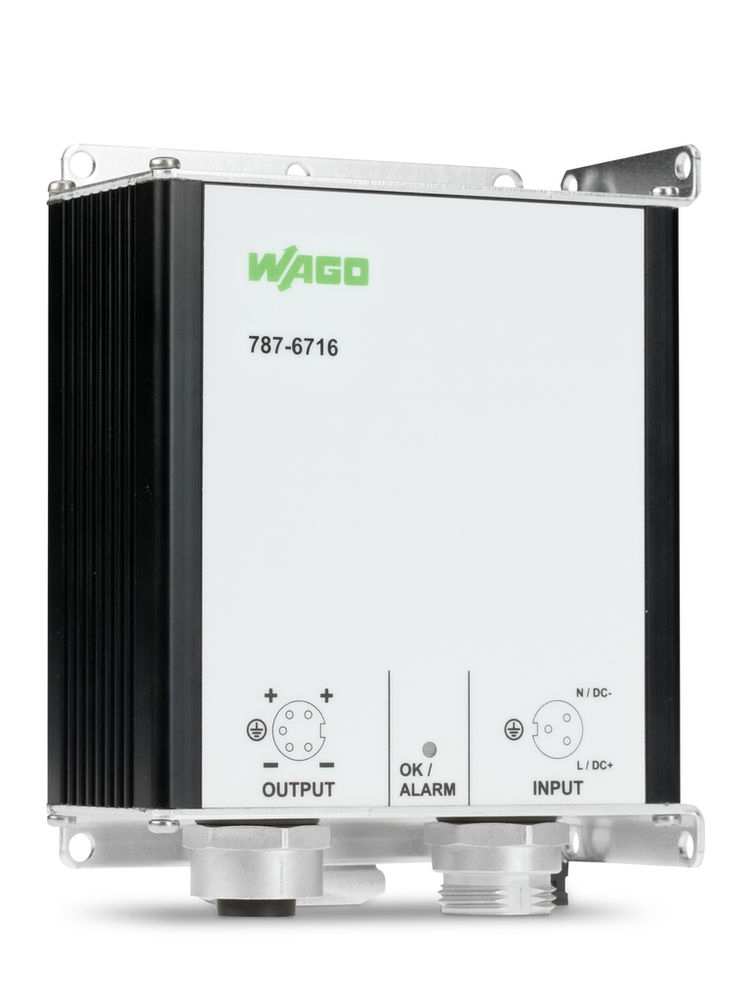

WAGO 787-6716
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switched-mode power supply; 1-phase; 24 VDC output voltage; 4 A output current; PowerBoost
WAGO 787-6716 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Backup fusing (recommended)
- Circuit breaker: 4 … 20 A; Characteristic: C || T 20 A in building installations
- Internal fuse
- T 6.3 A
Commercial Data
- Country of origin
- CZ
- Customs tariff number
- 85044083900
- GTIN
- 4055143644877
- Packaging type
- Box
Connection Data
- Connection technology
- 7/8"; 3-pole plug
- Connection technology 2
- 7/8"; 5-pole socket
- Connection type 1
- Input
- Connection type 2
- Output
Efficiency/Power Losses
- Efficiency (typ.)
- 92.3 % (230 VAC)
- Power loss Pl
- ≤ 1 W; ≤ 7.9 W (nominal load)
Environmental Requirements
- Ambient temperature (operation)
- -40 … +85 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Derating
- -3.84 W/K (> 60 °C)
- Relative humidity
- 4 … 100 %
Input
- Input current Ii
- ≤ 0.5 A (250 VAC); ≤ 1.1 A (100 VAC)
- Input voltage range
- AC/DC 90 … 265 V
- Inrush current
- ≤ 9 A
- Mains failure hold-up time
- ≥ 45 ms
- Nominal input voltage Ui nom
- AC/DC 100 … 240 V
- Nominal mains frequency range
- 47 … 63.6 Hz; 0 Hz
- Phases
- 1
- Power factor
- ≥ 0.98
- Power factor correction (PFC)
- Active
Material Data
- Fire load
- 0.000 MJ
- Weight
- 1100.000 g
Mechanical Data
- Mounting type
- Screw mount
Output
- Nominal output current Io nom
- 4 A
- Nominal output power
- 96 W
- Nominal output voltage Uo nom
- DC 24 V
- Output voltage range
- ±2 %
- Overload behavior
- Constant current
- PowerBoost
- DC 6 A (5 s; without voltage drop)
- Residual ripple
- ≤ 100 mV (peak-to-peak); ≤ 20 mV (rms)
Physical Data
- Depth
- 54 mm / 2.123 inches
- Height
- 141 mm / 5.55 inches
- Width
- 111 mm / 4.37 inches
Safety And Protection
- MTBF
- > 960,000 h
- Overvoltage protection; secondary
- ≤ 30 VDC (per IEC 61131)
- Parallel operation
- 3 devices (max.)
- Protection class
- I
- Protection type
- IP67
- Resistance to reverse feed
- ≤ DC 35 V
- Series operation
- 2 devices (max.)
- Short-circuit-protected
- Yes
Signaling And Communication
- Operation status indicator
- Green LED (24 VDC OK) || Red LED (overload)
- Signaling
- 1 x LED DC OK (green) || 1 x Overload LED (red)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61010-1 || EN 61010-2-201 || EN 61204 || UL 508
