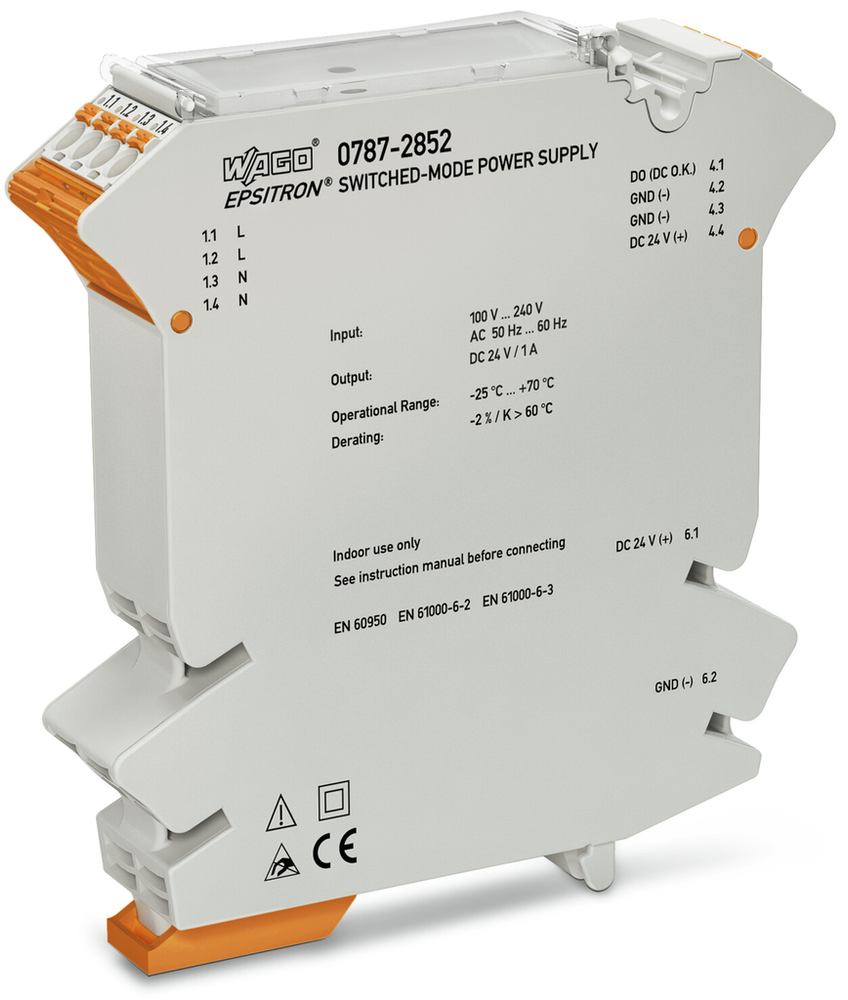

WAGO 787-2852
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EPSITRON® / JUMPFLEX® power supply; single-phase; 24 VDC; 1 A
WAGO 787-2852 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Backup fusing (recommended)
- Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C
- Internal fuse
- T 2 A / 250 VAC
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85044083900
- GTIN
- 4055143295529
- Packaging type
- Box
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Connection type 1
- Input/output/signaling
- Fine-stranded conductor
- 0.2 … 2.5 mm² / 24 … 10 AWG
- Number of jumper slots
- 4
- Solid conductor
- 0.2 … 2.5 mm² / 24 … 10 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- WAGO connector
- picoMAX® 5.0
Efficiency/Power Losses
- Efficiency (typ.)
- 86 % (230 VAC; nominal load); 84 % (110 VAC; nominal load)
- Power loss (max.) Pl (max.)
- 5 W (100 VAC / 24 VDC; 1 A)
- Power loss Pl
- ≤ 1 W; ≤ 4.3 W (230 VAC; nominal load)
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C (Nominal mounting position; −25 … +55 °C (in any mounting position))
- Ambient temperature (storage)
- -25 … +85 °C
- Derating
- -2 %/K (> 60 °C)
- Relative humidity
- 5 … 96 % (no condensation permissible)
Input
- Discharge current
- ≤ 1 mA
- Input current Ii
- ≤ 0.28 A (240 VAC; nominal load); ≤ 0.49 A (100 VAC; nominal load)
- Input voltage range
- 1 x AC 85 … 264 V; DC 120 … 372 V
- Inrush current
- ≤ 30 A
- Mains failure hold-up time
- ≥ 20 ms (100 VAC)
- Nominal input voltage Ui nom
- 1 x AC 100 … 240 V
- Nominal mains frequency range
- 47 … 63 Hz; 0 Hz
- Phases
- 1
- Power factor
- ≥ 0.6 (230 VAC; Nominal load; per EN 61000-3-2)
- Power factor correction (PFC)
- null
Material Data
- Fire load
- 1.417 MJ
- Weight
- 200.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Output
- Current limitation
- 1.1 x Io nom (typ.)
- Default setting
- DC 24 V
- Deviation
- ≤ 2 %
- Deviation, dynamic load change 10 … 90 %
- ≤ 1 %
- Nominal output current Io nom
- 1 A
- Nominal output power
- 24 W
- Nominal output voltage Uo nom
- DC 24 V (SELV)
- Overload behavior
- Constant current
- Residual ripple
- ≤ 100 mV (peak-to-peak)
Physical Data
- Depth
- 105 mm / 4.122 inches
- Height from upper-edge of DIN-rail
- 107 mm / 4.213 inches
- Width
- 22.5 mm / 0.886 inches
Safety And Protection
- Isolation voltage (pri.-sec.)
- DC 4.242 kV
- MTBF
- > 500,000 h (at 25 °C per IEC 61709)
- Open-circuit-proof
- Yes
- Overvoltage protection; secondary
- Internal protective circuit || ≤ 29 … 31 VDC (in the event of a fault)
- Parallel operation
- Yes, for 2 devices of the same type
- Pollution degree
- 2
- Protection class
- II
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ DC 60 V
- Series operation
- Yes, for 2 devices of the same type
- Short-circuit-protected
- Yes
- Transient suppression (primary)
- Varistor
Signaling And Communication
- Operation status indicator
- Green LED (Uo > 21.5 V) || Red LED (overload)
- Signaling
- 1 x LED DC OK (green) || 1 x Overload LED (red) || 1 x Active signal output DC OK (24 VDC; 20 mA)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61000-6-2 || EN 61000-6-3 || EN 60950-1 || DNV
- Standards/specifications (pending)
- UL 60950 || CULus 508 || ANSI/ISA 12.12.01 (Class I Div. 2) || ATEX/IEC Ex
