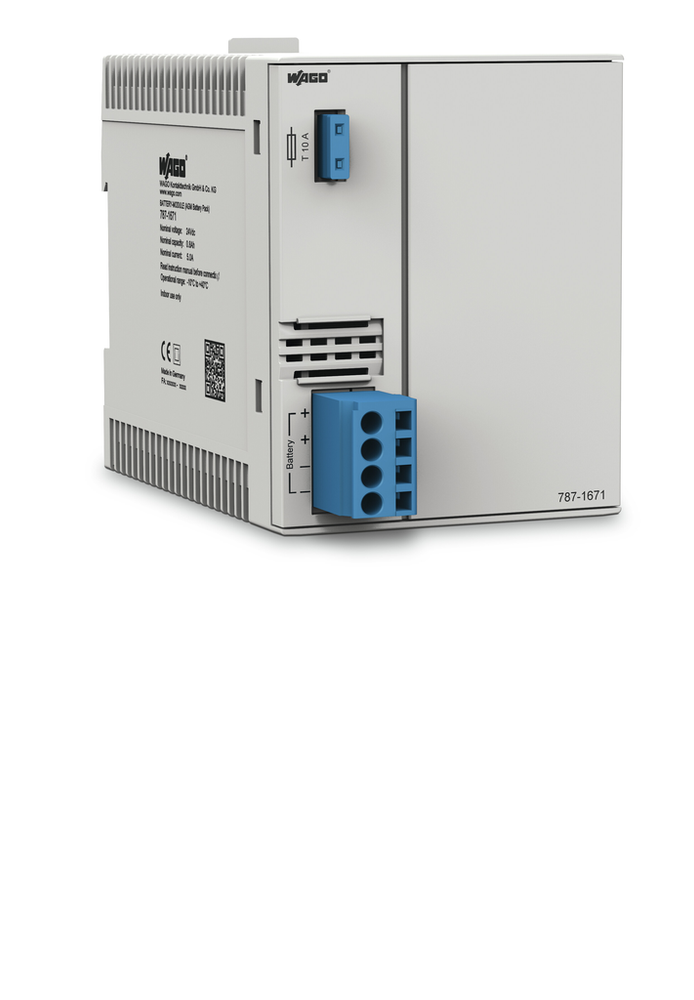

WAGO 787-1671
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Lead-acid AGM battery module; 24 VDC; 0.8 Ah
WAGO 787-1671 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Internal fuse
- T 10 A / 250 VAC
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85072080900
- GTIN
- 4055143535724
- Packaging type
- Box
Connection Data
- Cable length (max.)
- 3 m
- Connection technology
- CAGE CLAMP®
- Connection type 1
- Input/output/battery control
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- WAGO connector
- WAGO 721 Series
Energy Storage System
- Battery capacity
- 0.8 Ah
- Charging current
- 0.2 A (recommended)
- End-of-charge voltage
- DC 27 V (25 °C )
Environmental Requirements
- Ambient temperature (operation)
- -15 … +40 °C (−20 … +40 °C (during discharge))
- Ambient temperature (storage)
- -20 … +40 °C
- Relative humidity
- 5 … 80 % (no condensation permissible)
Input
- Nominal input voltage Ui nom
- DC 24 V
Material Data
- Fire load
- 0.124 MJ
- Weight
- 1000.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Notes
- Note
- For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller.
Output
- Nominal output current Io nom
- 5 A
- Nominal output voltage Uo nom
- DC 24 V
Physical Data
- Depth from upper-edge of DIN-rail
- 124 mm / 4.882 inches
- Height
- 97 mm / 3.819 inches
- Width
- 72 mm / 2.835 inches
Safety And Protection
- MTBF
- > 500,000 h (per IEC 61709)
- Pollution degree
- 2
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Series operation
- No
- Service life (typ.)
- 5 / 4 / 2 a (20 / 30 / 40 °C)
Signaling And Communication
- Signaling
- Battery control (C+; C-)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61010-1 || EN 61010-2-201
- Standards/specifications (pending)
- UL 508
