WAGO 787-1664
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

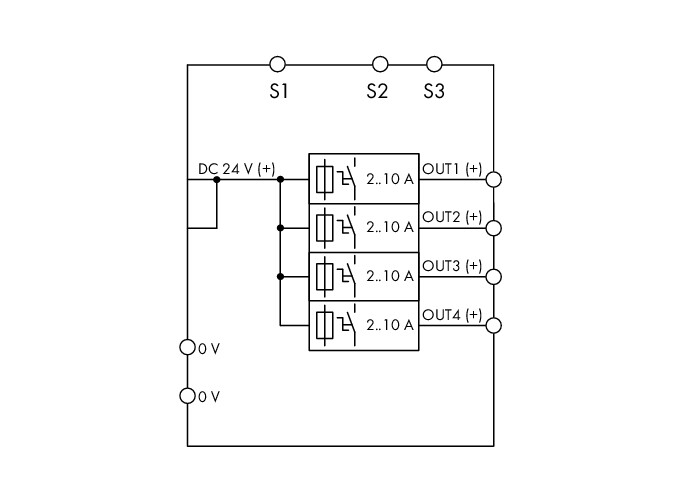

Electronic circuit breaker; 4-channel; 24 VDC; 2 ... 10 A
WAGO 787-1664 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Internal fuse
- T 15 A per channel
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85363010900
- GTIN
- 4050821502609
- Packaging type
- Box
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Connection technology 2
- CAGE CLAMP®
- Connection type 1
- Input (+)
- Connection type 2
- Input (–); output; signaling
- Fine-stranded conductor
- 0.5 … 10 mm² / 20 … 8 AWG
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Solid conductor
- 0.5 … 10 mm² / 20 … 8 AWG
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 13 … 15 mm / 0.51 … 0.59 inches
- Strip length 2
- 8 … 9 mm / 0.31 … 0.35 inches
- WAGO connector
- WAGO 831 Series
- WAGO connector 2
- WAGO 721 Series
Efficiency/Power Losses
- Efficiency (typ.)
- 99 %
- Power loss Pl
- ≤ 0.84 W; ≤ 10 W (4 x 10 A)
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Derating
- ≥ 50 °C (see instruction manual)
- Relative humidity
- 5 … 96 % (no condensation permissible)
Input
- Input voltage range
- DC 18 … 30 V
- Nominal input voltage Ui nom
- DC 24 V
Material Data
- Fire load
- 0.000 MJ
- Weight
- 170.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Output
- Active current limitation
- No
- Default setting
- DC 10 A; switched on
- Nominal output current Io nom
- 4 x 2 / 3 / 4 / 6 / 8 / 10 A (adjustable for each channel via selector switch)
- Nominal output voltage Uo nom
- 4 x DC 24 V
- Output voltage range
- DC 18 … 30 V (Ue − voltage drop)
- Switch-on behavior
- Time-delayed channel switching (load-dependent, min. 50 ms / max. 5 s)
- Switch-on capacity
- > 50000 µF per channel
- Total number of channels (module)
- 4
- Voltage drop
- ≤ 200 mV (10 A) (Input (+))
Physical Data
- Depth from upper-edge of DIN-rail
- 115.5 mm / 4.547 inches
- Height
- 90 mm / 3.543 inches
- Width
- 45 mm / 1.772 inches
Safety And Protection
- Isolation voltage (connectors – housing)
- DC 0.5 kV
- MTBF
- > 500,000 h (per IEC 61709)
- Parallel operation of single channels
- Not permitted
- Pollution degree
- 2
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ DC 35 V
- Reverse voltage protection
- No
- Series operation
- No
- Transient suppression (primary)
- Suppressor diode (33 V)
Signaling And Communication
- Operation status indicator
- Green LED (channel OK) || Red LED (tripped channel)
- Remote input
- Reactivation of all tripped channels via 15 … 30 VDC pulse for min. 500 ms || Switching on/off any number of channels via pulse sequence
- Signaling
- 4 x LED (green/red/orange) || 1 x Remote control input (S1) || 2 x Active signal output (S2; S3)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61000-6-2 || EN 61000-6-3 || UL 508 || UL 2367 || DNV
