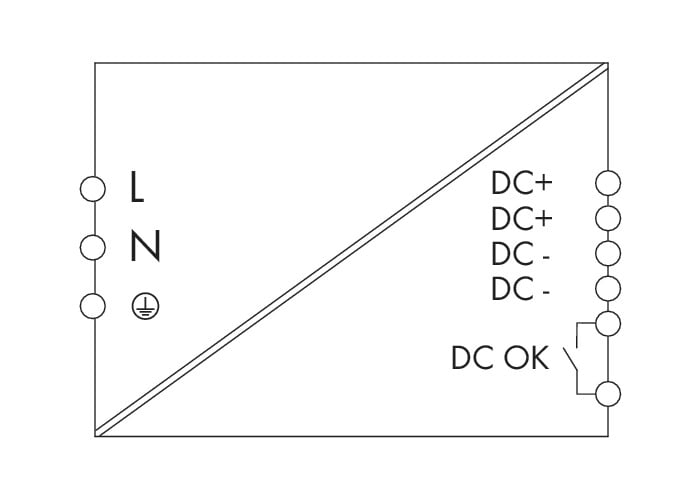

WAGO 787-1631
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EPSITRON® CLASSIC power supply; 2-phase; output voltage 12 VDC; 15 A
WAGO 787-1631 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Backup fusing (recommended)
- Circuit breaker: 10 A, 16 A; Tripping characteristic: B or C
- Backup fusing (required)
- An external DC fuse is required for the DC input voltage.
- Internal fuse
- T 6.3 A / 250 VAC
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85044083900
- GTIN
- 4055143060509
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Connection type 1
- Input/output/signaling
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- WAGO connector
- WAGO 721 Series
Efficiency/Power Losses
- Efficiency (typ.)
- 90 %
- Power loss (max.) Pl (max.)
- 24.7 W (100 VAC / 12 VDC; 15 A)
- Power loss Pl
- ≤ 4.4 W; ≤ 21.8 W (230 VAC; nominal load)
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C (Device starts at −40 °C (type-tested))
- Ambient temperature (storage)
- -25 … +85 °C
- Derating
- -5 %/K (> 60 °C, 196… 264 VAC); -2.5 %/K (> 50 °C, 85 … 195 VAC)
- Relative humidity
- 5 … 96 % (no condensation permissible)
Input
- Discharge current
- ≤ 1 mA
- Input current Ii
- ≤ 0.93 A (240 VAC); ≤ 2.05 A (100 VAC)
- Input voltage derating
- -2.5 %/V (< 100 VAC)
- Input voltage range
- 1 x AC 85 … 264 V; DC 120 … 300 V
- Inrush current
- ≤ 30 A
- Mains failure hold-up time
- ≥ 28 ms (230 VAC); ≥ 28 ms (100 VAC)
- Nominal input voltage Ui nom
- 1 x AC 100 … 240 V
- Nominal mains frequency range
- 44 … 66 Hz; 0 Hz
- Phases
- 1
- Power factor correction (PFC)
- Active
Material Data
- Fire load
- 0.000 MJ
- Weight
- 930.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Output
- Current limitation
- 1.1 x Io nom (typ.)
- Default setting
- DC 12 V
- Deviation
- ≤ 1 %
- Nominal output current Io nom
- 15 A (12 VDC)
- Nominal output power
- 180 W
- Nominal output voltage Uo nom
- DC 12 V (SELV)
- Output voltage range
- DC 11.5 … 15 V (adjustable)
- Overload behavior
- Constant current
- Residual ripple
- ≤ 35 mV (peak-to-peak)
Physical Data
- Depth from upper-edge of DIN-rail
- 172 mm / 6.772 inches
- Height
- 127 mm / 5 inches
- Width
- 55 mm / 2.165 inches
Safety And Protection
- Isolation voltage (pri.-PE)
- DC 2.2 kV
- Isolation voltage (pri.-sec.)
- DC 4.242 kV
- Isolation voltage (sec.-PE)
- DC 0.7 kV
- MTBF
- > 500,000 h (per IEC 61709)
- Open-circuit-proof
- Yes
- Overvoltage category
- II
- Overvoltage protection; secondary
- Internal protective circuit || ≤ 20 VDC (in the event of a fault)
- Parallel operation
- Yes
- Pollution degree
- 2
- Protection class
- I
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ DC 25 V
- Series operation
- Yes
- Short-circuit-protected
- Yes
- Transient suppression (primary)
- Varistor
Signaling And Communication
- Operation status indicator
- Green LED (Uo)
- Signaling
- 1 x LED DC OK (green) || 1 x DC OK contact (make contact; max. 30 VAC/DC; 1 A)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61010-1 || EN 61010-2-201 || EN 61204-3 || UL 60950-1 || UL 508 || DNV || SEMI F47
