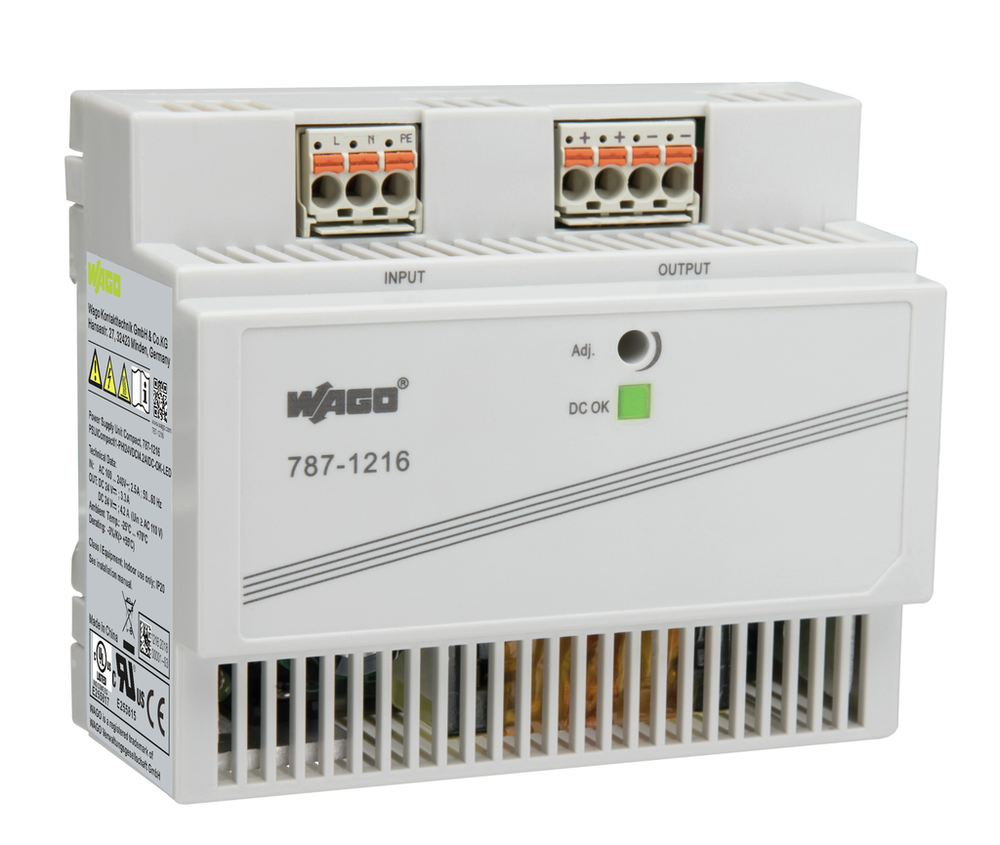

WAGO 787-1216
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EPSITRON® COMPACT power supply; single-phase; output voltage 24 VDC; 4 A; with pluggable picoMAX connector
WAGO 787-1216 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Backup fusing (recommended)
- Circuit breaker: 6 A (C characteristic), 10 A (B characteristic) or higher
- Backup fusing (required)
- An external DC fuse is required for the DC input voltage.
- Internal fuse
- T 3.15 A / 500 VAC
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85044083900
- GTIN
- 4055143907804
- Packaging type
- Box
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Connection type 1
- Input/output
- Fine-stranded conductor
- 0.2 … 2.5 mm² / 24 … 12 AWG
- Solid conductor
- 0.2 … 2.5 mm² / 24 … 12 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- WAGO connector
- picoMAX® 5.0, WAGO 2092 Series
Efficiency/Power Losses
- Efficiency (typ.)
- 90 % (230 VAC); 87 % (110 VAC)
- Power loss (max.) Pl (max.)
- 15 W (100 VAC / 24 VDC; 4.2 A)
- Power loss Pl
- ≤ 0.7 W
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Derating
- -2.66 %/K (> 55 °C)
- Relative humidity
- ≤ 95% (no condensation permissible)
Input
- Discharge current
- ≤ 0.25 mA
- Input current Ii
- ≤ 2.5 A
- Input voltage derating
- -2 %/V (< 100 VAC); -1.33 %/V (< 140 VDC)
- Input voltage range
- 1 x AC 85 … 264 V; DC 125 … 375 V
- Inrush current
- ≤ 20 A
- Mains failure hold-up time
- ≥ 50 ms
- Nominal input voltage Ui nom
- 1 x AC 100 … 240 V
- Nominal mains frequency range
- 47 … 63 Hz; 0 Hz
- Phases
- 1
- Power factor
- ≥ 0.5
- Power factor correction (PFC)
- Passive
Material Data
- Fire load
- 0.000 MJ
- Flammability class per UL94
- V0
- Weight
- 456.875 g
Mechanical Data
- Mounting type
- DIN-35 rail || Screw mount (back/side)
Output
- Default setting
- DC 24 V
- Deviation
- ≤ 1 %
- Deviation, dynamic load change 10 … 90 %
- ≤ 1 %
- Nominal output current Io nom
- 4.2 A; 3.3 A (< 110 VAC)
- Nominal output power
- 100 W
- Nominal output voltage Uo nom
- DC 24 V (SELV)
- Output voltage range
- DC 22 … 26 V (adjustable)
- Overload behavior
- Constant power (in overload range: 1.05 … 1.35 x Io nom); Shutdown and automatic restart in the event of a short circuit or permanent overload
- Residual ripple
- ≤ 100 mV (peak-to-peak)
Physical Data
- Depth
- 56 mm / 2.205 inches
- Depth from upper-edge of DIN-rail
- 52.5 mm / 2.067 inches
- Height
- 90 mm / 3.543 inches
- Note (dimensions)
- Depth: 48 mm (without cover)
- Width
- 108 mm / 4.252 inches
Safety And Protection
- Isolation voltage (pri.-sec.)
- DC 4.242 kV
- MTBF
- > 500,000 h (per IEC 61709)
- Open-circuit-proof
- Yes
- Overvoltage protection; secondary
- ≤ 31 VDC (in the event of a fault)
- Parallel operation
- Yes
- Pollution degree
- 2
- Protection class
- I
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ DC 35 V
- Series operation
- Yes
- Short-circuit-protected
- Yes
- Transient suppression (primary)
- Varistor
Signaling And Communication
- Operation status indicator
- Green LED (Uo)
- Signaling
- 1 x LED DC OK (green)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61204-3 || EN 60335-1 || EN 62368-1 || UL 60950-1 || UL 508
