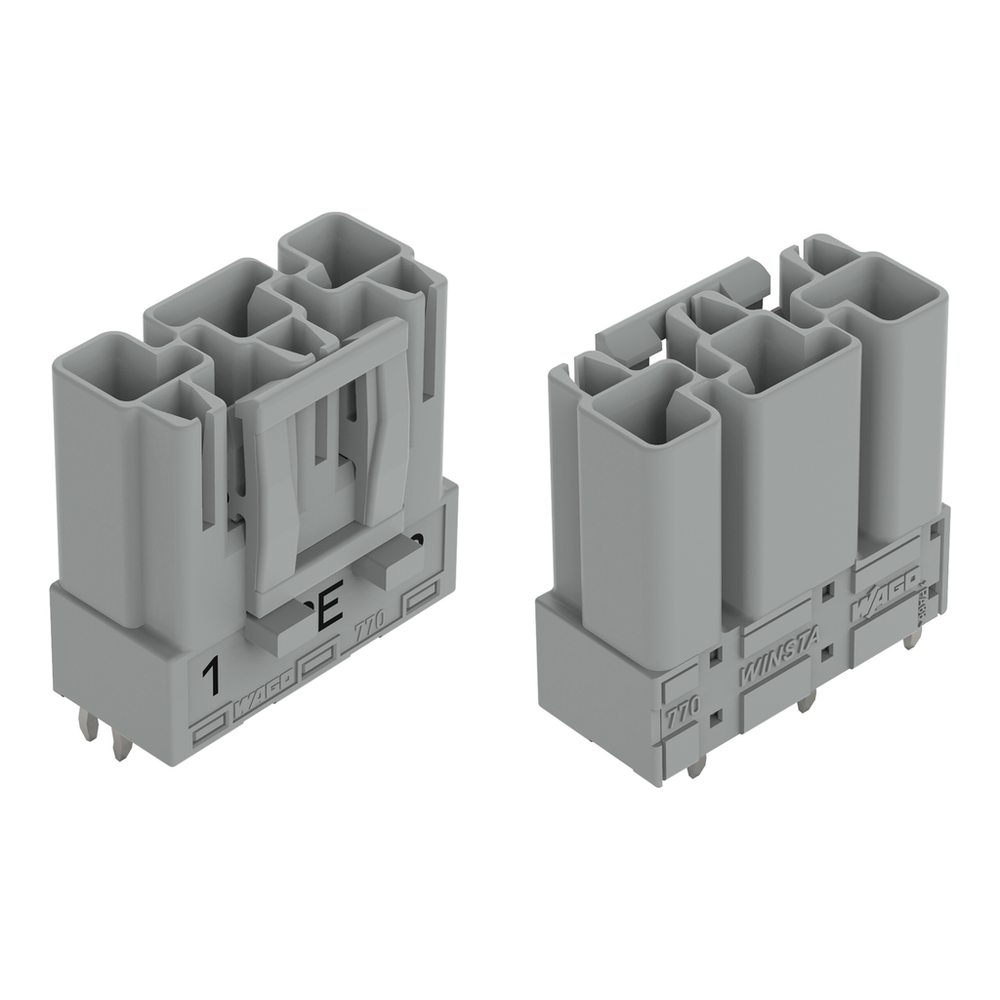

WAGO 770-853/062-000

Commercial Data

• Country of origin
  • PL
• Customs tariff number
  • 85366990990
• GTIN
  • 4050821553625
• Packaging type
  • Box

Connection 1

• Pole number
  • 3

Environmental Requirements

• Continuous operating temperature
  • -35 … +85 °C
• Note on continuous operating temperature
  • Insulating parts for temperatures ≤ 105 °C
• Processing temperature
  • -5 … +40 °C

General

• Note on contact resistance
  • Approx. 1 mΩ of contact resistance
approx. 0.25 mΩ contact transition plug/socket

Material Data

• Clamping spring material
  • Chrome-nickel spring steel (CrNi)
• Color
  • Gray
• Contact material
  • Copper or copper alloy; surface-treated
• Contact plating
  • Tin
• Fire load
  • 0.167 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 6.777 g

Mechanical Data

• Application
  • Control technology
• Coding
  • B
• Design
  • Straight
• Marking
  • 1 PE 2
• Mating force of a plug-in connection
  • Approx. 20 … 70 N (depending on pole number)
• Number of mating cycles
  • 200, without resistive load
• Potential marking
  • 1 PE 2
• Retention force of a plug-in connection
  • Locked: > 80 N
• Unmating force of a plug-in connection
  • Unlocked: approx. 20 … 70 N (depending on pole number)
• Variable coding
  • Yes

Notes

• Variants:
  • Other pole markings || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Pcb Contact

• Number of solder pins per potential
  • 2
• PCB contact
  • THT
• Solder pin arrangement
  • 2 in-line solder pins/pole

Physical Data

• Depth
  • 14.6 mm / 0.575 inches
• Drilled hole diameter with tolerance
  • 1.5 (-0.1 … +0.1) mm
• Height
  • 29.5 mm / 1.161 inches
• Height from the surface
  • 26 mm / 1.024 inches
• Pin spacing
  • 10 mm / 0.394 inches
• Solder pin dimensions
  • 1 x 0.8 mm
• Solder pin length
  • 3.5 mm
• Width
  • 27 mm / 1.063 inches

Plug-In Connection

• Connector (connection type)
  • For PCB
• Contact type (pluggable connector)
  • Male connector/plug
• Locking lever
  • Yes
• Locking of plug-in connection
  • Locking lever
• Mating direction to the PCB
  • 90 °
• Mismating protection
  • Yes
• Note on locking system
  • All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
• Note on mismating protection
  • All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 250 V
• Rated current
  • 25 A
• Rated impulse voltage (III/3)
  • 4 kV
• Ratings per
  • IEC/EN 60664-1

Ratings Per Ul 1977

• Note for the US market
  • Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.
• Rated current UL 1977
  • 23 A
• Rated voltage (UL 1977)
  • 600 V

Specifications

• Product Group Code
  • 0020
