WAGO 770-1373/147-000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

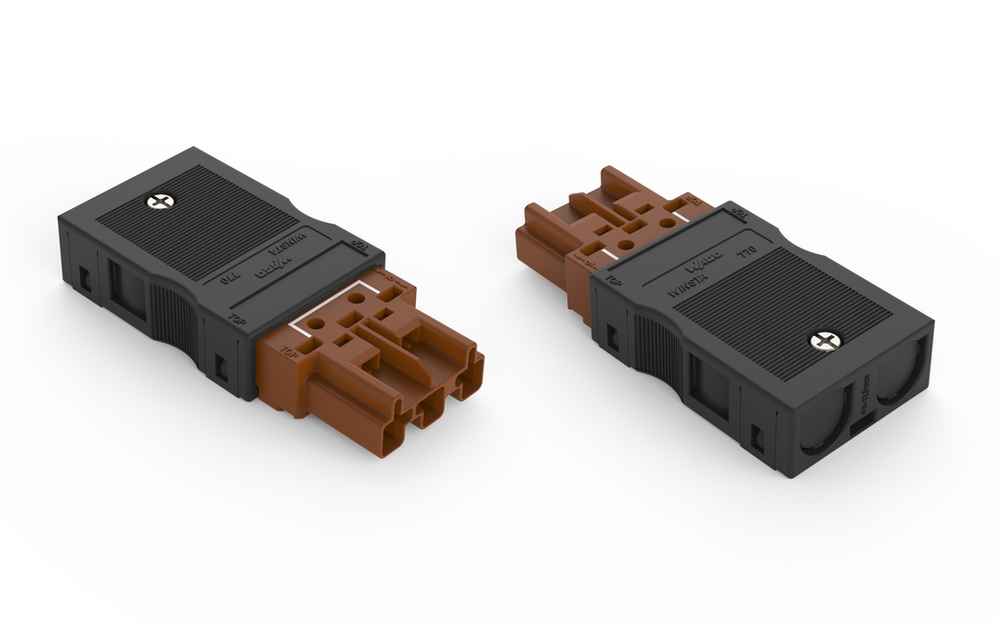

Shorting plug; with assembled strain relief housing; 3-pole; Cod. S; Bridge 1-L; 4,00 mm²; brown
WAGO 770-1373/147-000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85366990990
- GTIN
- 4045454148324
- Packaging type
- Box
Connection 1
- Connection technology
- Push-in CAGE CLAMP®
- Pole number
- 3
Environmental Requirements
- Continuous operating temperature
- -35 … +85 °C
- Note on continuous operating temperature
- Insulating parts for temperatures ≤ 105 °C
- Processing temperature
- -5 … +40 °C
Material Data
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Color
- Brown
- Connector color
- Brown
- Contact material
- Copper or copper alloy; surface-treated
- Fire load
- 3.762 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Note (material data)
- Weight
- 23.193 g
Mechanical Data
- Application
- Switching function
- Coding
- S
- Internal wiring
- 4 mm²
- Protection type
- IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- Suitable
- For distribution connectors; series and two-way circuits
- Variable coding
- No
Physical Data
- Depth
- 76 mm / 2.992 inches
- Height
- 15 mm / 0.591 inches
- Pin spacing
- 10 mm / 0.394 inches
- Width
- 34.6 mm / 1.362 inches
Plug-In Connection
- Connector (connection type)
- For pluggable connector
- Contact type (pluggable connector)
- Male connector/plug
- Locking lever
- No
- Mismating protection
- Yes
- Strain relief
- Strain relief housing
Ratings Per Iec/En
- Legend (ratings)
- (III / 3) ≙ Overvoltage category III / Pollution degree 3
- Rated current
- 25 A
Ratings Per Ul 1977
- Rated current UL 1977
- 23 A
- Rated voltage (UL 1977)
- 600 V
Specifications
- Product Group Code
- 0020
