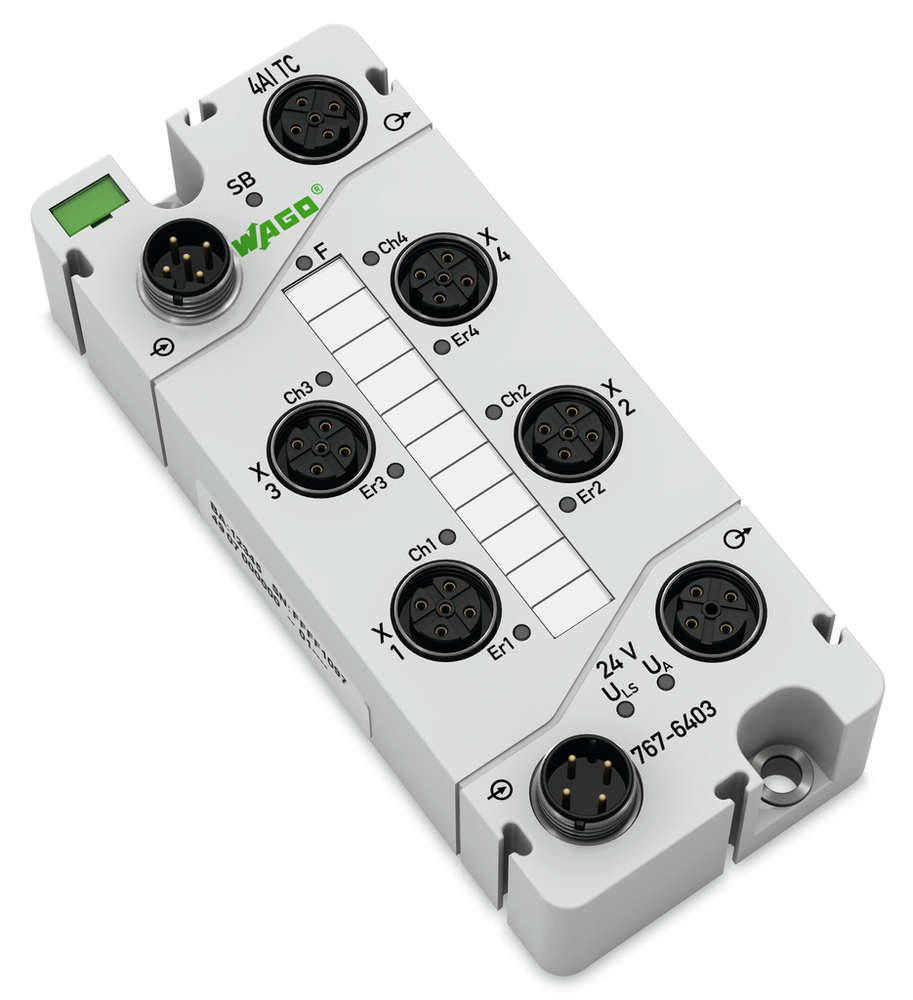

WAGO 767-6403

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85389099990
• GTIN
  • 4045454951108
• Packaging type
  • Bag

Connection Data

• Connection requirement (permissible cable length)
  • 30 m
• Connection requirement (permissible cable type)
  • Analog inputs: unshielded
• Connection technology: field supply
  • 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded
• Connection technology: inputs/outputs
  • 4 x M12 socket; 5-pole; A-coded
• Connection technology: system bus
  • 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
• Connection technology: system supply
  • 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded

Environmental Requirements

• Ambient temperature (operation)
  • -25 … +60 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-4
• EMC immunity to interference
  • Per EN 61000-6-2
• Operating altitude
  • −1000 … 2000 m; Air pressure: 1080 … 795 hPa
• Protection class
  • III
• Protection type
  • IP67
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• Vibration resistance
  • 5g per IEC 60068-2-6

Material Data

• Conformity marking
  • CE
• Encapsulation
  • Polyurethane (PUR), halogen/silicon-free
• Fire load
  • 0.009 MJ
• Housing material
  • Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Weight
  • 263.000 g

Physical Data

• Depth
  • 117 mm / 4.606 inches
• Height
  • 35.7 mm / 1.406 inches
• Width
  • 50 mm / 1.969 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Conversion method (2)
  • SigmaDelta
• Conversion time (2)
  • Integration time x 3
• Current carrying capacity (supply connections)
  • 8 A
• Current consumption, field supply (module with no external load)
  • 5 mA
• Current consumption (system and sensor)
  • 40 mA
• Indicators
  • LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (Ch1 … Ch4) yellow: Status AI 1 … AI 4; LED (Er1 … Er4) red: Error AI 1 … AI 4; Non-retentive displays
• Integration time
  • 2 … 120 ms
• Isolation
  • 500 V supply/system bus
• Maximum error over the full temperature range
  • ± 3 K
• Max. measurement error (cold junction)
  • ≤ ± 1 K
• Max. measurement error (without temperature compensation)
  • ≤ ± 1 K over the entire measurement range (for type K)
• Measurement range
  • Thermocouples: Type B: +200 … +1,820 °C; Type C: 0 … +2,320 °C; Type E: –250 … +1,000 °C; Type J: –210 … +1,200 °C; Type K: –210 … +1,370 °C; Type N: –210 … +1,300 °C; Type R: –50 … +1,768 °C; Type S: –50 … +1,768 °C; Type T: –210 … +400 °C; Voltage sensors: MB1: ±36 mV; MB2: ±72 mV; MB3: ±145 mV; MB4: ±290 mV
• Monotonicity without error codes
  • Yes
• Number of analog inputs
  • 4
• Parameterizable functions
  • I/O diagnostics (per module): Undervoltage (ULS + UA) || I/O diagnostics (per channel): Measurement range overflow/underflow; Limit value violation (min./max.); Wire break || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: according to measurement range; Diagnostics || Measurement range (per channel): Parameterizable || Limiting values (per channel): Min./Max. || Linearization (per channel)): Linear; Type B; C; E; J; K; N; R; S; T || Cold junction compensation (per channel): Type: fixed temperature at current input; Compensation connector on the previous inpu; Temperature: value; Offset: value || Integration time (per channel): 2/ 4/ 8/ 16.7/ 20/ 30/ 60/ 120 ms || Substitute value (per channel): Value
• Process data width
  • 8-byte data + status
• Protection
  • Reverse voltage protection for ULS + Uo
• Resolution [bit]
  • 16 bits
• Resolution (over entire range)
  • 0.1 °C or 0.01 mV
• Sampling repetition time
  • Number of active channels x conversion time
• Sensor connection
  • 4 x (2-wire); External shield via knurled nut
• Sensor types
  • Thermocouple K; Configurable: B, C, E, J, N, R, S, T; Voltage sensors: ± 36 mV, ± 72 mV, ± 145 mV, ± 290 mV
• Signal type
  • Thermocouple || Low voltages
• Signal type (configurable)
  • Yes
• Supply voltage (field)
  • 24 VDC (-25 … +30 %); Actuators (UA), for transmission only
• Supply voltage (system and sensor)
  • 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• Temperature coefficient
  • ±0.05 K/K (type K)
• Temperature range
  • Type-dependent from −100 to +1,800 °C
• Total number of channels (module)
  • 4
